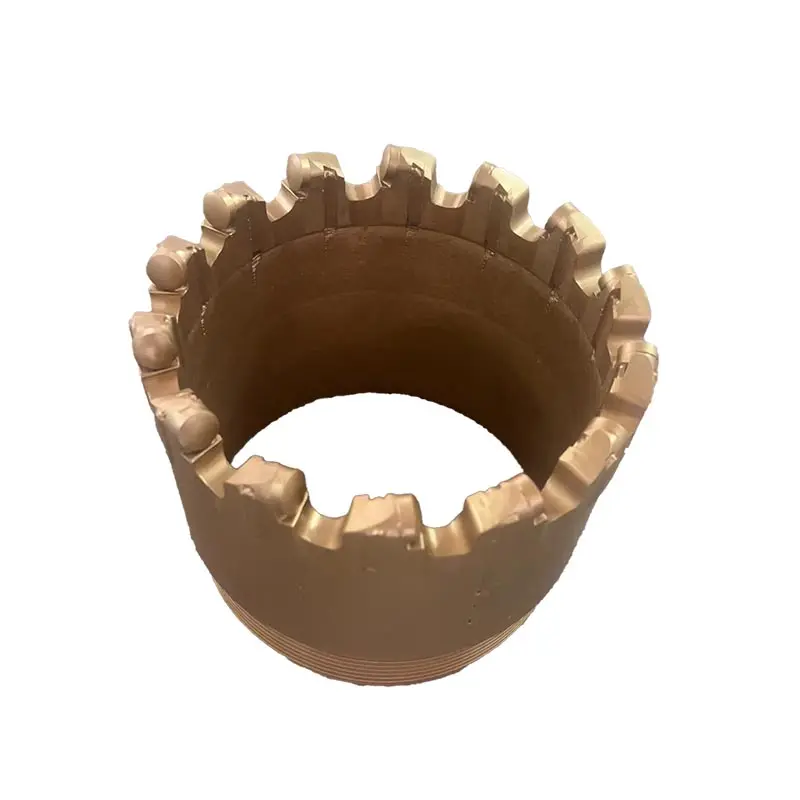

⚙️ PDC Core Drill Bit Features
🎯
Versatile Formation Use
Suitable for soft, medium, and hard formations.
🛡️
High Wear Resistance
Super strong material promotes gauge wear resistance to provide long bit life.
💎
Enhanced PDC Cutters
PDC cutter can improve the life and shield the risk of complex formation drill not passed.
⚖️
Balance Design
Drilling dynamic equilibrium design and hydraulic balance design make the drilling process more smooth.
📋 Technical Specifications
Machine Type: Drilling Tool
Application: Water Well Drilling, Geological Exploration
Size Range: 75 mm - 132 mm etc.
Production Capacity: 50,000/Month
| General Product Information |
| Product Name |
PDC core drill bit |
| Size Range |
3" -- 16" |
| Raw Material |
Diamond and Steel |
| Process |
Welding |
| Packing |
Carton or Wooden case |
| Customized |
Available |
| Color |
Blue/Yellow/Gold/Black/Red etc. |
| Thread Length |
30mm, 40mm |
| Size (mm) |
Imperial |
Size For Rock Core Pipe Casing |
Height (mm) |
Weight (kg) |
| 75mm |
3" |
73mm |
120mm |
1kg |
| 93mm |
3 3/4" |
89mm |
120mm |
1.22kg |
| 112mm |
4 1/2" |
108mm |
120mm |
1.54kg |
| 132mm |
5 1/8" |
127mm |
120mm |
1.8kg |
| 152mm |
6" |
146mm |
120mm |
2.06kg |
❓ Frequently Asked Questions
What applications are PDC core drill bits suitable for?
They are primarily used for water well drilling and geological exploration across soft, medium, and hard rock formations.
What materials are used in the manufacturing of these bits?
The bits are constructed using high-grade diamond cutters and premium steel bodies, joined through a professional welding process.
Can I order custom sizes for specific drilling projects?
Yes, while standard sizes range from 3" to 16" (75mm to 152mm+), customized sizes and specifications are available upon request.
How does the bit design ensure stability during drilling?
The bits feature a dynamic equilibrium design and hydraulic balance, which minimizes vibration and ensures a smoother drilling process.
What colors are available for the drill bits?
We offer various colors including Blue, Yellow, Gold, Black, and Red to meet different customer preferences.
What is the production capacity for these PDC bits?
Our production facility has a capacity of approximately 50,000 units per month, ensuring stable supply for large-scale operations.
