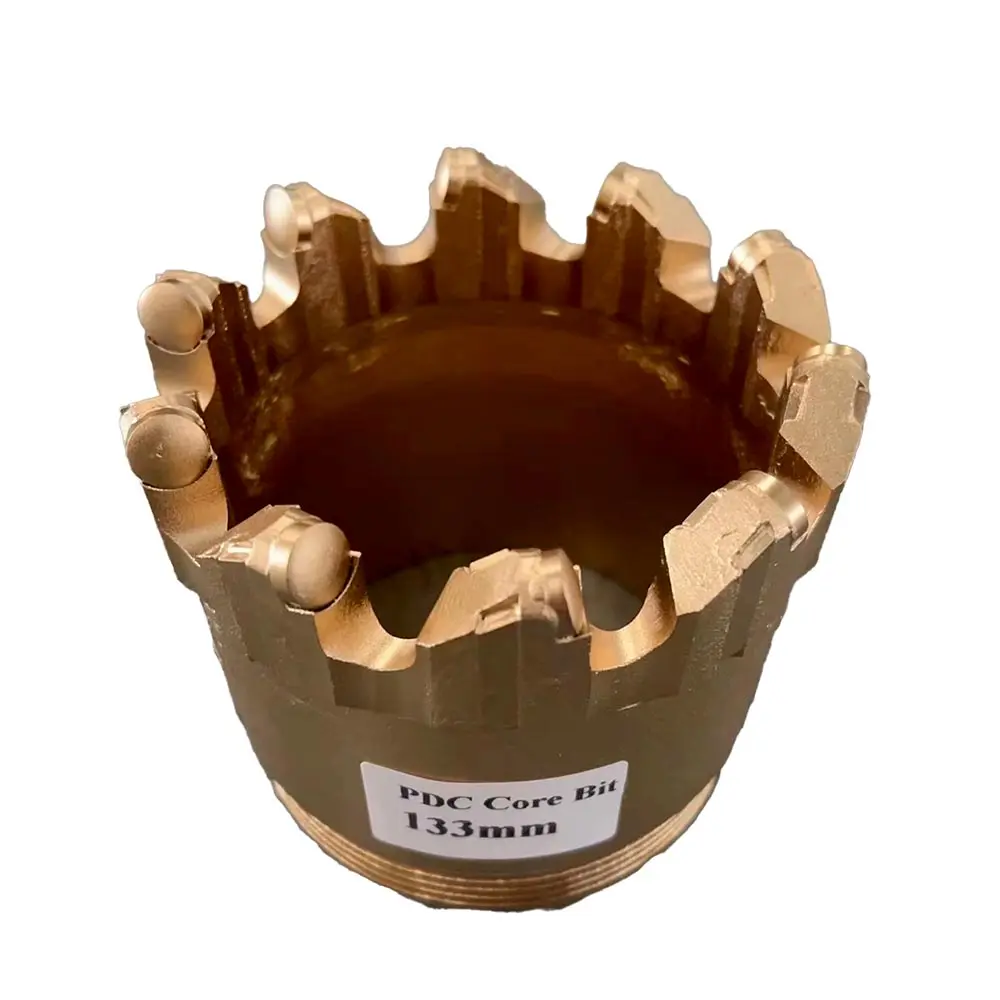

PDC Core Drill Bit Features
✔
Versatile Formation Support: Suitable for soft, medium, and hard geological formations.
✔
Enhanced Durability: Super strong material promotes gauge wear resistance to provide an extended bit life.
✔
Risk Mitigation: High-quality PDC cutters improve operational life and shield against risks in complex formations.
✔
Smooth Operation: Advanced drilling dynamic equilibrium and hydraulic balance design ensure a smoother drilling process.
Technical Specifications
Machine Type
Drilling Tool
Application
Water Well / Geological
Size Range
75mm - 132mm+
Monthly Capacity
50,000 Units
| Product Overview |
| Name of Product |
PDC Core Drill Bit |
| Size |
3" - 16" |
| Raw Material |
Diamond and Steel |
| Process |
Welding |
| Packing |
Carton or Wooden Case |
| Customization |
Available |
| Available Colors |
Blue, Yellow, Gold, Black, Red, etc. |
| Thread Length |
30mm, 40mm |
Size Reference Chart
| Size (mm) |
Imperial |
Rock Core Pipe Casing |
Height |
Weight |
| 75mm |
3" |
73mm |
120mm |
1kg |
| 93mm |
3 3/4" |
89mm |
120mm |
1.22kg |
| 112mm |
4 1/2" |
108mm |
120mm |
1.54kg |
| 132mm |
5 1/8" |
127mm |
120mm |
1.8kg |
| 152mm |
6" |
146mm |
120mm |
2.06kg |
Product Gallery
Frequently Asked Questions
? What applications are PDC core drill bits best for?
They are primarily used for water well drilling and geological exploration across soft to hard rock formations.
? Can I request a customized color or size?
Yes, customization is available. We offer various colors (Blue, Yellow, Gold, etc.) and sizes ranging from 3" to 16".
? What materials are used in these drill bits?
The bits are manufactured using high-grade diamond PDC cutters and premium steel bodies for maximum durability.
? How does the hydraulic balance design benefit drilling?
The hydraulic and dynamic equilibrium design ensures smoother drilling and reduces vibration, which extends the overall life of the tool.
? What is the typical packaging for international shipping?
Products are securely packed in either reinforced cartons or wooden cases to ensure they arrive in perfect condition.
? What is the production capacity for bulk orders?
We maintain a high production capacity of approximately 50,000 units per month to support large-scale industrial needs.
