High-Quality BQ Reaming Shell Manufacturer, Manufacturers

Wireline Reaming Shells

BQ Reaming Shells

Send Inquiry

Product Description

Wireline Reaming Shells

Brief Introductions of Reaming Shells

Reaming shell is used to couple the drill bit with the core barrel. It is suitable for use on all conventional and wireline core barrel. This product is mainly designed to ream the hole to the standard diameter. It can keep the stability of the core barrel.

Key Functions:

Provides sufficient clearance for new bits when the old one is replaced.
Helps resist the abrasion of the core barrel.
Physically longer than the standard type for better performance.
Suitable for formations ranging from broken and abrasive to consolidated and non-abrasive.

Available lengths: 6", 10" and 18".

Features of Reaming Shells

1) Acts as a stabilizer for the drill bit.

2) Can be set with natural or synthetic diamonds.

Our reaming shells represent the highest quality and specialized design in the industry, specifically developed to satisfy diverse drilling requirements.

Available Size for Reaming Shells

Q Series: AQ, BQ, NQ, HQ, PQ (Front end & Back end Type)

T Series: T36, T46, T56, T66, T76, T86

WF Series: HWF, PWF, SWF, UWF, ZWF

WT Series: RWT, EWT, AWT, BWT, NWT, HWT (Single/Double Tube)

WG Series: EWG, AWG, BWG, NWG, HWG (Single/Double Tube)

WM Series: EWM, AWM, BWM, NWM

T2/T6 Series: T256, T266, T276, T286, T2101 / T676, T686, T6101, T6116, T6131, T6146, T6H

Others: NMLC, HMLC, LTK48, LTK60, TBW, TNW, ATW, BTW, NTW, AQTK, NXD3, NXC, SK6L146, TT46, TB56, TS116, CHD101

Type	Category	Bits Size
Reaming shell	Double-tube Reaming shell	P56, P59, P75, P76, P91, P110, P130
	Single-tube Reaming shell	D56, D59, D75, D76, D91, D110, D130, D150, D171, D223
	Wireline Reaming shell	S56, S59, S75, S95, BQ, NQ, HQ, PQ, T2-46, T2-56, T2-66, T2-76, T2-86, T2-101

Sizes of Core Bits and Reaming Shells

Model	Core bit (Outside Diameter)		Core bit (Inside Diameter)		Reaming shell (Outside Diameter)
Model	Inches	mm	Inches	mm	Inches	mm
BTW	2.345	59.56	1.667	42.1	2.36	59.95
NTW	2.965	75.31	2.218	56.1	2.98	75.7
HTW	3.762	95.57	2.809	71.1	3.783	96.09
AQ	1.875	47.63	1.062	26.97	1.89	48.01
BQ	2.345	59.56	1.433	36.4	2.36	59.95
BQ3	2.345	59.56	1.32	33.53	2.36	59.95
NQ	2.965	75.31	1.875	47.63	2.98	75.7
NQ3	2.965	75.31	1.775	45.08	2.98	75.7
HQ	3.762	95.57	2.5	63.5	3.783	96.09
HQ3	3.762	95.57	2.406	61.11	3.783	96.09
PQ	4.805	122.05	3.345	84.96	4.828	122.65
PQ3	4.805	122.05	3.27	83.06	4.828	122.65
T2-56	2.205	56	1.642	41.7	2.217	56.3
T2-76	2.992	76	2.429	61.7	3.004	76.3
T2-86	3.385	86	2.823	71.7	3.398	86.3
T2-101	3.976	101	3.295	83.7	3.988	101.3

BQ Reaming Shell Showcase

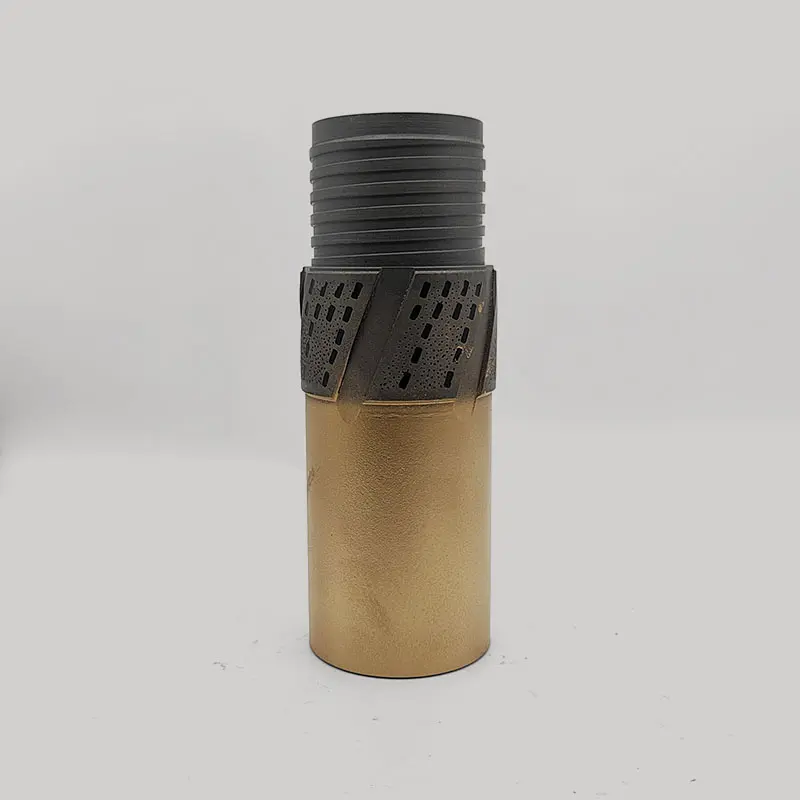

BQ Reaming Shell - View 1

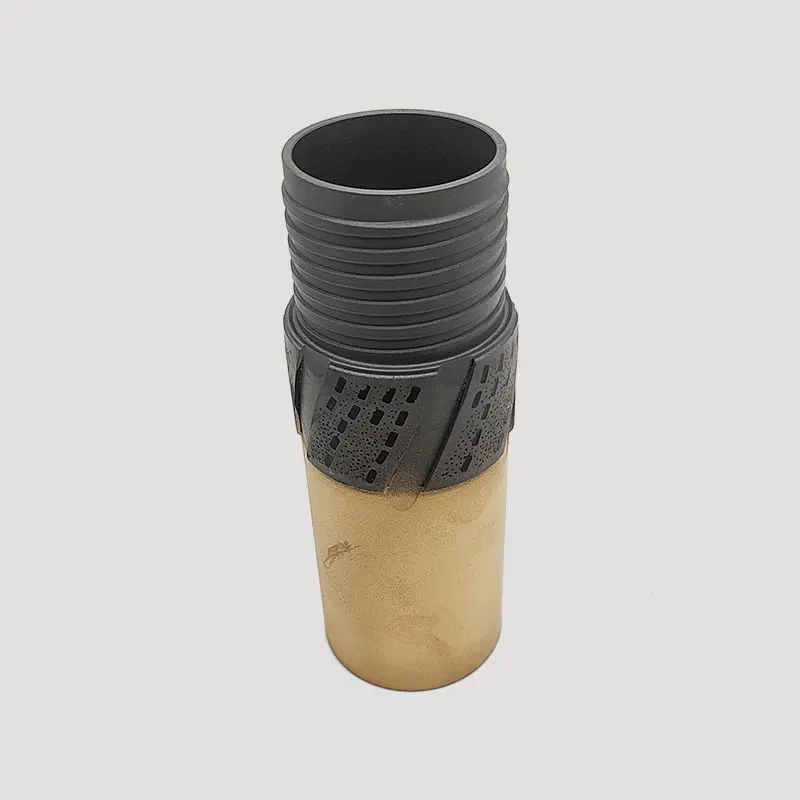

BQ Reaming Shell - View 2

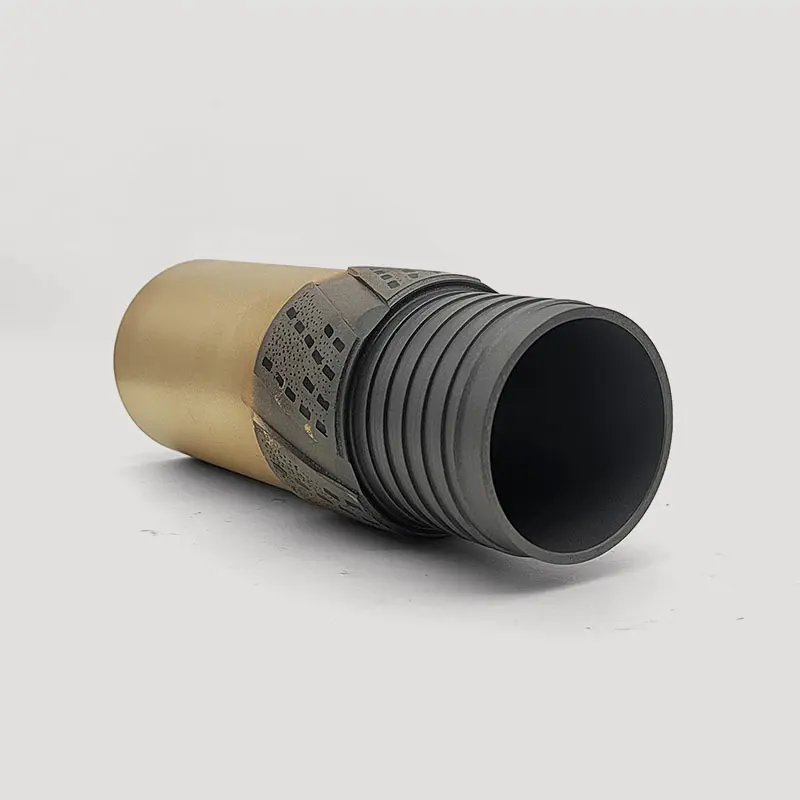

BQ Reaming Shell - View 3

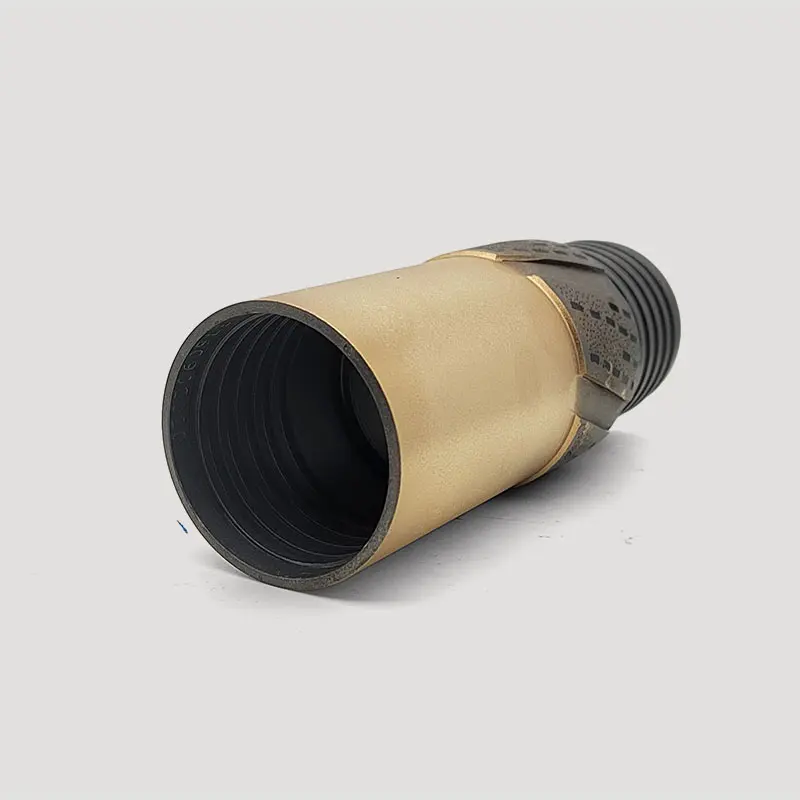

BQ Reaming Shell - View 4

Frequently Asked Questions

Q1: What is the main purpose of a wireline reaming shell?

The reaming shell is used to connect the drill bit to the core barrel, stabilize the barrel, and ensure the borehole is reamed to the correct standard diameter.

Q2: Can these reaming shells be used in abrasive ground conditions?

Yes, our reaming shells are designed to handle various formations, ranging from highly abrasive and broken ground to consolidated, non-abrasive rock.

Q3: What diamond types are used in your reaming shells?

Depending on the application requirements, our reaming shells can be set with either high-quality natural diamonds or synthetic diamonds.

Q4: What sizes of wireline reaming shells do you offer?

We offer a wide range of sizes including the Q series (AQ, BQ, NQ, HQ, PQ), T series, WF series, WT series, and various other specialized sizes like T2 and T6.

Q5: Why is a longer reaming shell sometimes necessary?

Longer reaming shells act as improved stabilizers. When using them, an inner tube extension is required to compensate for the additional length to maintain proper core barrel function.

Q6: Do you provide reaming shells for double-tube core barrels?

Yes, we provide reaming shells compatible with single-tube, double-tube, and wireline core barrel systems.
