KAT DRILLING
1 / 5

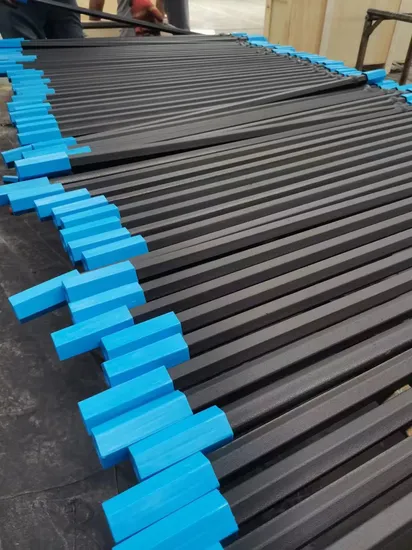

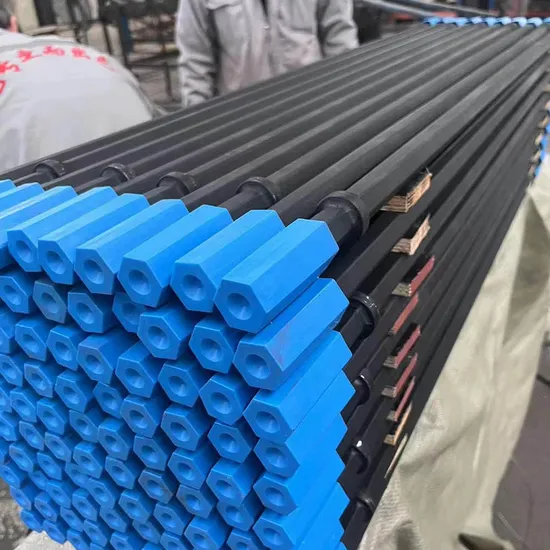

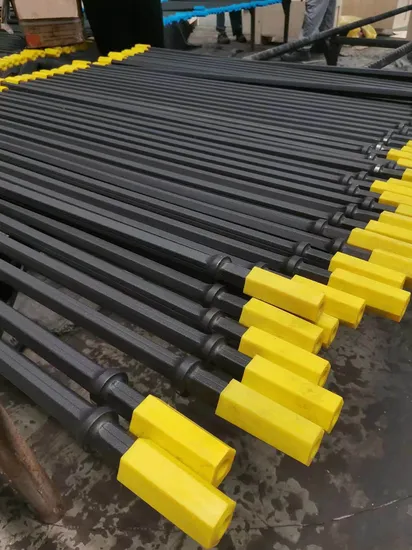

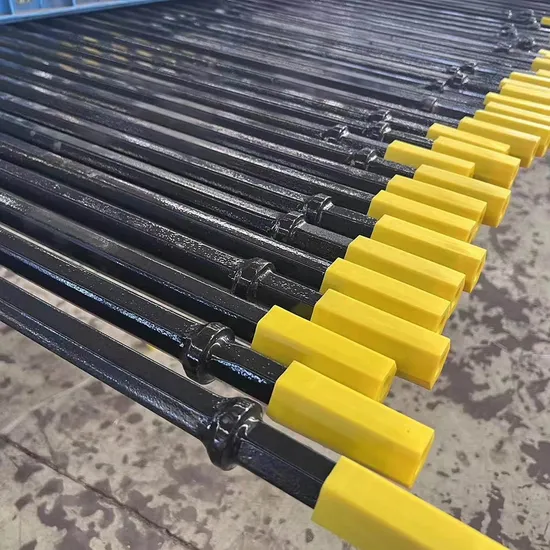

Taper drill rod is widely used for rock drilling, blasting holes, and other drilling works in quarries, coal mines, traffic, and other constructions. It works seamlessly with taper drill bits and is available in different lengths for various applications.
Technical Parameters:
| ROD CROSS SECTION | Length | Weight (Approx. kg) | |
|---|---|---|---|
| Section Type | mm | foot/inch | kg |
| 4°46' Taper Angle | |||
| 22H | 800 | 2'7½" | 2.8 |
| 22H | 1600 | 5'3" | 5.3 |
| 22H | 2000 | 6'6¾" | 6.5 |
| 22H | 3200 | 10'6" | 10.2 |
| 7° Taper Angle | |||
| 22H | 400 | 1'3¾" | 1.6 |
| 22H | 800 | 2'7½" | 2.8 |
| 22H | 1600 | 5'3" | 5.2 |
| 22H | 2000 | 6'6¾" | 6.5 |
| 22H | 3050 | 10' | 9.7 |
| 22H | 4000 | 13'1½" | 12.6 |
| 22H | 8000 | 26'3" | 24.9 |
| 11° Taper Angle | |||
| 22H | 800 | 2'7½" | 2.8 |
| 22H | 1525 | 5' | 5.0 |
| 22H | 2435 | 8' | 7.8 |
| 22H | 4800 | 15'9" | 15.1 |
| 22H | 8000 | 26'3" | 24.9 |
| 12° Taper Angle | |||
| 22H | 610 | 2' | 2.2 |
| 22H | 1220 | 4' | 4.1 |
| 22H | 2435 | 8' | 7.8 |
| 22H | 3965 | 13' | 12.5 |
