Shank Adapter for Sandvik HL500S,HL510S,HL510B,HL510LH

Send Inquiry

Product Description

! Shank Adapter for Sandvik HL500S, HL510S, HL510B, HL510LH

High-performance shank adapters designed for Sandvik hydraulic drifters. These components ensure maximum energy transmission from the rock drill to the drill string, providing durability and precision in demanding drilling conditions.

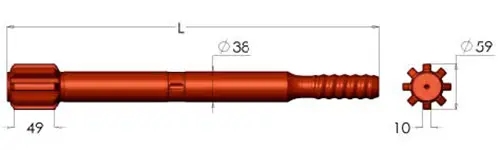

Sandvik HL500S Shank Adapter
⚙ Technical Specifications
THREAD OVERALL LENGTH (L) FRONT END DIA. Product No.
mm In. mm In. Ref 1 Ref 2
R32 460 17.72 38 1.5 7803-7531-01 90516160
T35 460 17.72 38 1.5 - 90003519
R38 460 17.72 38 1.5 7804-7531-01 90516170
T38 460 17.72 38 1.50 7304-7531-01 90516186
R38 500 19.69 38 1.5 7804-7536-01 90516508
T38 500 19.69 38 1.5 7304-7536-01 -
? Frequently Asked Questions
Which drifter models are these shank adapters compatible with?
These adapters are specifically engineered for Sandvik HL500S, HL510S, HL510B, and HL510LH hydraulic rock drills.
What thread types are available for this series?
The series includes R32, T35, R38, and T38 thread configurations to suit various drilling requirements.
What is the standard length for the Sandvik HL500S adapter?
The most common overall lengths are 460mm (17.72 inches) and 500mm (19.69 inches).
How does the shank adapter ensure high performance?
By using premium alloy steel and precise heat treatment, it minimizes energy loss and resists fatigue during high-frequency impacts.
Can I replace different part numbers with these adapters?
Yes, these adapters correspond to standard industry product numbers such as 7803-7531-01, 7804-7531-01, and 7304-7531-01.
Are there different front end diameters available?
The standard front end diameter for these specific models is 38mm (1.5 inches) for consistent fitment.
