High-Quality CIR65 Low Air Pressure DTH Hammer Factory, Quotes

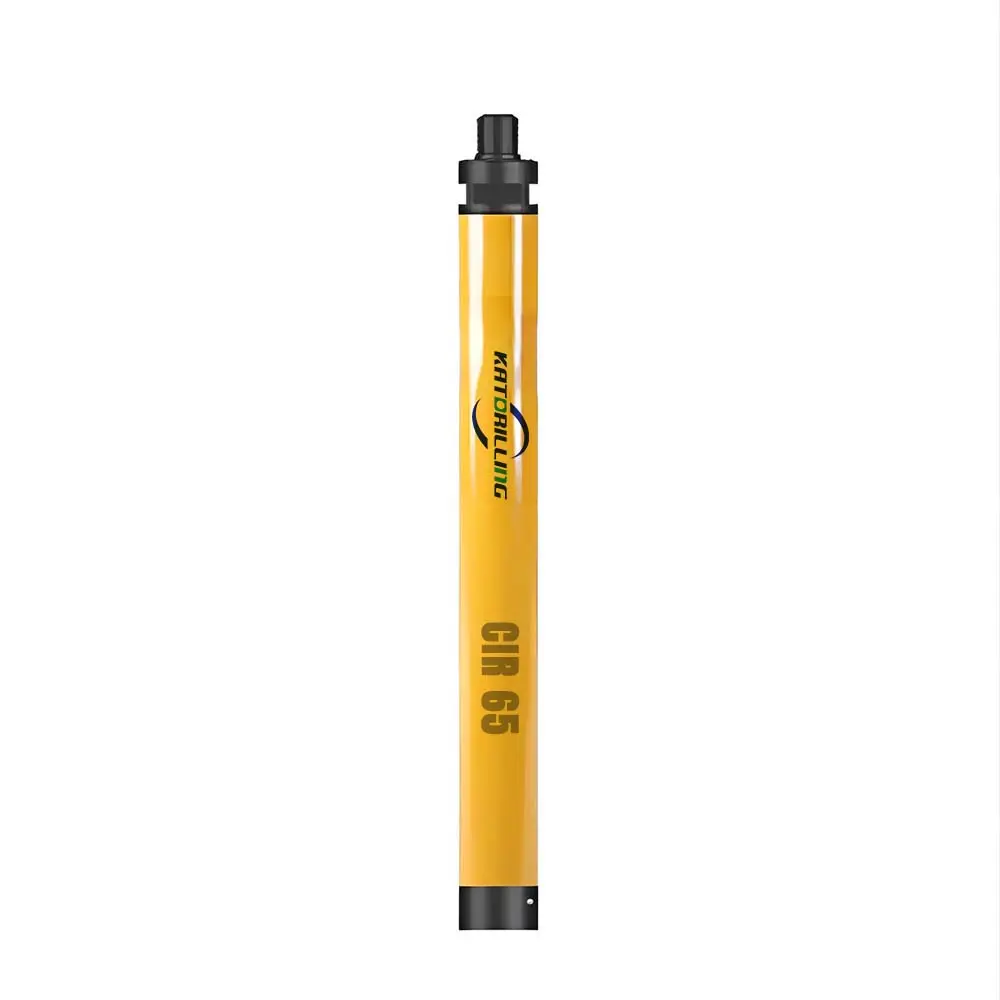

CIR65 Low Air Pressure DTH Hammer

CIR SERIESÂ

CIR50/CIR60/CIR65/CIR76/CIR90/CIR110/CIR130/CIR150/CIR170

Send Inquiry

Product Description

CIR65 Steel Valve Design Patent Quarry Mining Low Air Pressure DTH Hammer

Designed for high performance at low operating air pressure, the CIR series hammers maximize energy output and reduce maintenance requirements.

CIR50CIR60CIR65CIR76CIR90CIR110CIR130CIR150CIR170

Design Highlights

⚙️

High Performance: Specifically designed for efficient operation at low air pressure environments.

🛠️

Energy Maximize: Optimized internal structure to maximize energy output and reduce service needs.

🔥

Heat Treatment: All critical internal components are heat treated under strict control for maximum tool longevity.

💎

Patent Design: Exclusive steel valve design increases work efficiency by at least 20%.

Applications

The CIR series DTH hammers are widely utilized across various demanding industries:

• Mine & Quarry
• Road Construction
• Drilling & Blasting
• Water Well Drilling
• Slope Protection
• Anchoring

CIR65 Technical Data

CIR65 Hammer Parameters
Hammer Length without bit	745 (mm)
Top sub thread	F42x10PIN
Outside diameter	61 (mm)
Weight	13 (KG)
Bit diameter	65 (mm)
Working Pressure	4-10 (Bar)
Air consumption	6-12 (M3/min)
Bit shank	CIR65

Product Components & Structure

Item Description	Part Number
1. Top Sub	KAT65-01
2. Cap	KAT65-02
3. Check Valve	KAT65-03
4. Spring	KAT65-04
5. Shim	KAT65-05
6. Rubber ring	KAT65-06
7. Valve cap	KAT65-07
8. Valve	KAT65-08
9. Air Distributor	KAT65-09
10. Inner Cylinder	KAT65-10
11. Piston	KAT65-11
12. Guide Sleeve	KAT65-12
13. Driver Sub	KAT65-13
14. Outer Sleeve	KAT65-14

Frequently Asked Questions

What are the primary advantages of the CIR series DTH hammer?

The CIR series is a steel valve type hammer designed for high performance specifically at low operating air pressures, which maximizes energy output while reducing service requirements.

How does the patented steel valve design improve performance?

The patented steel valve design significantly increases work efficiency by at least 20% compared to standard designs.

What is the recommended working pressure for the CIR65 model?

The CIR65 operates efficiently within a working pressure range of 4 to 10 Bar.

Are the internal components durable enough for heavy mining?

Yes, all critical internal components undergo strict heat treatment control to ensure maximum durability and longevity in harsh conditions like quarrying and mining.

Can the wear sleeve of the CIR hammer be reversed?

No, the wear sleeve in the CIR series design is not reversible.

What types of DTH hammer series are available?

We supply high pressure series, medium pressure series, low pressure series (like CIR), high efficiency high pressure series, and reverse circulation series.
