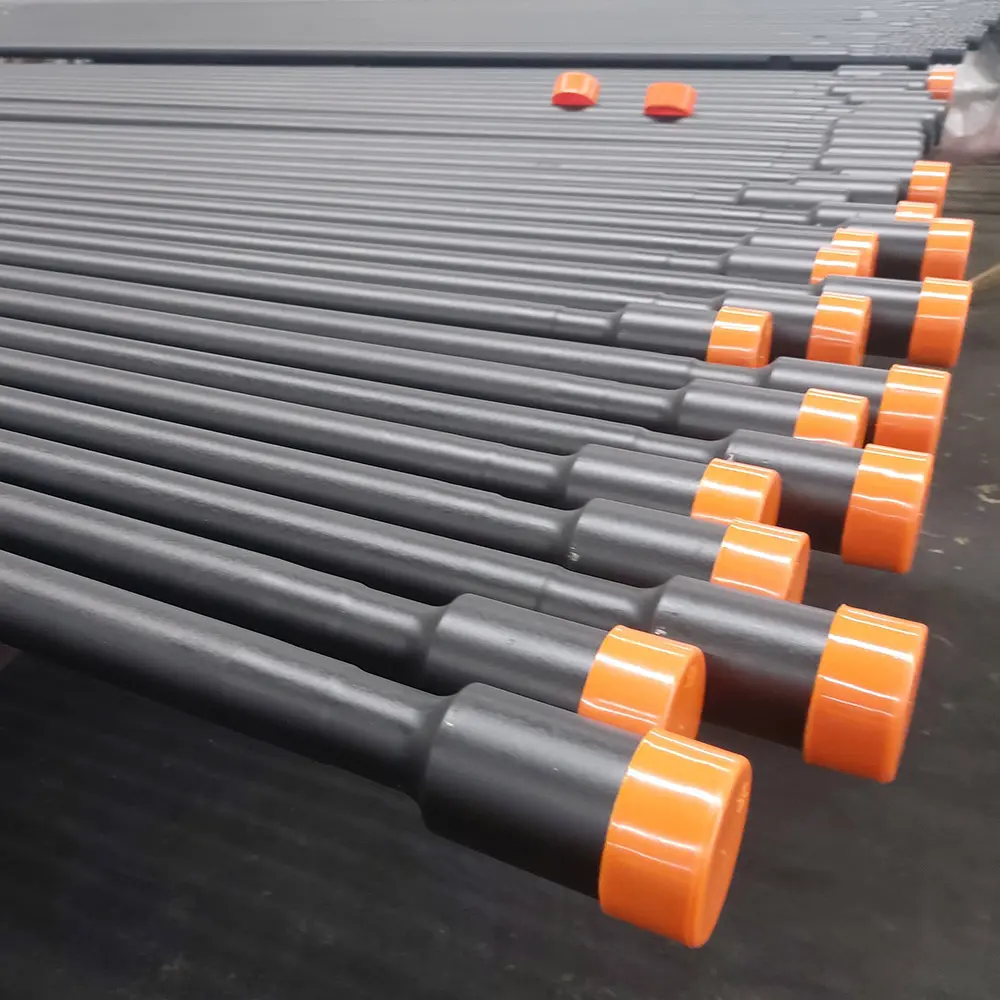

High-Quality T45 Thread Drill Rod Manufacturer, Factories

1 / 2

High-Quality T45 Thread Drill Rod Manufacturer, Factories

Bench and production drilling tools include rods, shank adapters, couplings and bits. We have mainly 9 threads:Â R3212, R32,Â HL38,Â T38,Â T45,Â T51, T60,Â ST58Â andÂ ST68.Â They can be used withÂ button bits, cross bits and reaming products.

KAT drillingâ€™s comprehensive range of bench and production rock drilling tools includes everything from 1â€Â rope thread equipment all the way up to T60 thread equipment, Many customers say that the drill rods, tubes andÂ button bits are the best on the market today. Letâ€™s just say they will improve productivityÂ considerably.

Send Inquiry

Product Description

Bench and production drilling tools include rods, shank adapters, couplings and bits. We have mainly 10 threads: R3212, R32, HL38, T38, T45, T51, T60, ST58, GT60 and ST68. They can be used with button bits, cross bits and reaming products.

The comprehensive range of bench and production rock drilling tools includes everything from 1” rope thread equipment all the way up to T60 thread equipment. These drill rods, tubes and button bits are designed to improve productivity considerably in various drilling operations.

Male/Female (M/F) Rod & Extension Rod

Speed Rod M/F Drill Steel: An alternative to couplings sleeves to include the female part of the threaded connection as an integral part of the drill steel. M/F drilled steel provides a stronger connection and is easier to remove. The service life also tends to be better than with separate couplings.

Extension Rod: Also known as Extension drill steel, Extension drill rod, or Extension steel, designed for long-hole drilling applications.

T35 Drill Rod Advantages

✓

High-Quality Material: The drill rod is manufactured using premium sanbar 64 steel.

✓

Advanced Treatment: Utilizes an overall carburizing process for enhanced durability.

✓

Flexible Lengths: Available in lengths ranging from 1000mm up to 6095mm.

✓

Professional Packaging: Supplied in secure bracket packaging for safe transport.

✓

High Productivity: Monthly production capacity of 10,000 pieces.

T45 Drill Rod & MF-Tube Specifications

Standard T45 Drill Rods

T45 – T45 – Rd 46 (1-3/4" Trapezoidal Thread 45mm) Carburized
Diameter	Length (L)		Thread Type
mm	mm	FT	Left	Right
RD 46	1000	3' 3"	T45	T45
RD 46	1525	5'	T45	T45
RD 46	1830	6'	T45	T45
RD 46	3050	10'	T45	T45
RD 46	3660	12'	T45	T45
RD 46	4875	16'	T45	T45
RD 46	6095	20'	T45	T45

Tandem Thread T45

TANDEM THREAD T45 – T45 – Rd 46 (Carburized)
RD 39	3050	10'	T45/T45	T45/T45
RD 39	3660	12'	T45/T45	T45/T45
RD 39	4265	14'	T45/T45	T45/T45

MF-Rod T45

MF-Rod T45 – T45 – Rd 46 (Carburized)
64	1525	5'	T45F	T45
64	1830	6'	T45F	T45
64	3050	10'	T45F	T45
64	3660	12'	T45F	T45
64	6100	20'	T45F	T45

MF-Tube T45

MF-Tube T45 – T45 – Rd 64/76 (Carburized)
64/76	1220	4'	T45F	T45
64/76	1525	5'	T45F	T45
64/76	1830	6'	T45F	T45
64/76	3050	10'	T45F	T45
64/76	3660	12'	T45F	T45

Frequently Asked Questions

What materials are used for the drill rods?

The drill rods are manufactured using high-quality sanbar 64 steel, which provides excellent strength and fatigue resistance.

What is the advantage of using Male/Female (M/F) rods?

M/F drill steel incorporates the female connection as an integral part of the rod, providing a stronger connection that is easier to remove and generally offers a longer service life than separate couplings.

Which thread types are available for production drilling?

Main thread types include R3212, R32, HL38, T38, T45, T51, T60, ST58, GT60, and ST68.

What treatment is applied to enhance rod durability?

The drill rods undergo an overall carburizing process to increase surface hardness and wear resistance while maintaining core toughness.

What are the available length options for these rods?

Drill rods are available in a wide range of lengths, typically from 1000mm up to 6095mm (3 feet to 20 feet) to suit various drilling rigs.

Are the T45 MF-Tubes compatible with button bits?

Yes, the T45 series equipment is designed for use with button bits, cross bits, and reaming products for bench and production drilling.
