Premium Shank Adapters Compatibility
Our high-performance shank adapters are designed for seamless integration with the following rock drill models:
- FURUKAWA: HD612-STD, HD612-QED
- SOOSAN: SP 6, TD 51

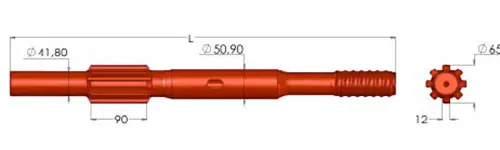

FURUKAWA HD 612 (STD) / SOOSAN SP 6, TD 51 Specifications
| THREAD |
OVERALL LENGTH (L) |
FRONT END DIAMETER |
| mm |
In. |
mm |
In. |
| T45 |
670 |
26.38 |
51 |
2.00 |
| T51 |
670 |
26.38 |
51 |
2.00 |
FURUKAWA HD 612 (QED) Specifications
| THREAD |
OVERALL LENGTH (L) |
FRONT END DIAMETER |
| mm |
In. |
mm |
In. |
| T45 |
845 |
33.27 |
51 |
2.00 |
| T51 |
845 |
33.27 |
51 |
2.00 |
Frequently Asked Questions
Which rock drill models are these shank adapters compatible with?
These adapters are specifically designed for FURUKAWA HD612-STD, HD612-QED, and SOOSAN SP 6, TD 51 models.
What are the available thread types for the HD 612 series?
We provide both T45 and T51 thread options to suit different drilling requirements.
What is the main difference between the STD and QED versions?
The primary difference lies in the overall length. The STD version has a length of 670mm, while the QED version is longer at 845mm.
What is the front end diameter of these shank adapters?
Both the STD and QED models feature a front end diameter of 51mm (2.00 inches).
Are these adapters suitable for heavy-duty mining and construction?
Yes, they are manufactured with high-strength materials to withstand the rigorous demands of modern rock drilling operations.
Can I use the same adapter for both T45 and T51 rods?
No, you must select the shank adapter that matches your specific drill rod thread type (either T45 or T51).
