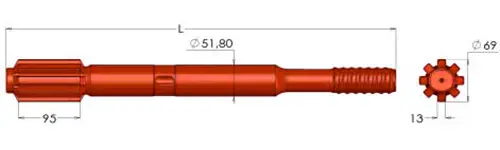

Shank Adapter for Sandvik HL650 HL700 HL710
Compatible Models: HL710 PE, HL710S PE, HL/HF810T, HL/HF820T, HL/HF810T PE, HL/HF820T PE, HL810ST, HL820ST
◈
Applications: SANDVIK - HL 650-52, 700-52, 700 PE-52, 700 S-52, 710-52, 710 PE-52, 710 S-52, 710 SPE-52, 800 T-52, 800 PE-52, 810 T-52, HF 810 T-5210 SPE-52, 800 T-52, 800 PE-52, 810 T-52, HF 810 T-52.
| THREAD |
OVERALL LENGTH (L) |
FRONT END DIA. |
Product No. |
| mm |
In. |
mm |
In. |
Reference 1 |
Reference 2 |
| R32 |
600 |
23.62 |
52 |
2.05 |
7803-7577-02 |
- |
| T38 |
600 |
23.62 |
52 |
2.05 |
7304-7577-02 |
90516290 |
| T45 |
600 |
23.62 |
52 |
2.05 |
7305-7577-02 |
90516509 |
| T51 |
600 |
23.62 |
52 |
2.05 |
7306-7577-03 |
90029850 |
What are the compatible Sandvik drifter models for this shank adapter?
This shank adapter is specifically designed for Sandvik HL650, HL700, HL710, HL810, and HL820 series, including PE and ST variants.
What thread types are available for the HL650-52 series?
We provide multiple thread options including R32, T38, T45, and T51 to suit different drilling requirements.
What is the standard length and diameter of these adapters?
The standard overall length is 600mm (23.62 inches) with a front-end diameter of 52mm (2.05 inches).
How do I identify the correct product number for my equipment?
You can refer to the product table above which lists OEM cross-reference numbers such as 7304-7577-02 for T38 threads or 7306-7577-03 for T51 threads.
Are these shank adapters suitable for high-frequency drifters?
Yes, these adapters are compatible with both HL and HF (High Frequency) series drifters, including the HF810T and HF820T models.
What is the role of the "PE" designation in the compatibility list?
The "PE" stands for Power Extractor, and our shank adapters are fully compatible with Sandvik drifters equipped with this feature.
