Frequently Asked Questions
❓ What drill rigs are these shank adapters compatible with?
These shank adapters are specifically designed for use with Sandvik HL1500, HL1560, HL1060, and HF1560 series drill rigs.
❓ What thread types are available for the HL1500 series?
We offer a variety of thread types including ST58, T51, GT60, ST68, and XT51, depending on the specific model and front-end diameter requirements.
❓ What are the standard front-end diameter options?

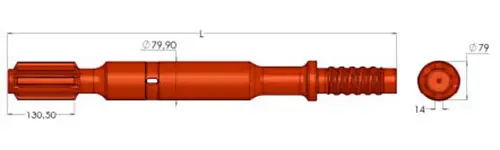

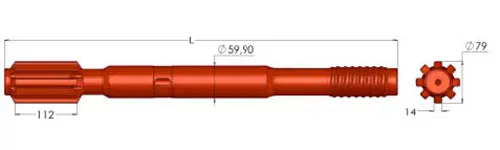

Available front-end diameters include 60mm (2.36 in.), 80mm (3.15 in.), and 90mm (3.54 in.) to match different drilling configurations.
❓ What is the maximum length available for these shank adapters?
The overall length varies by model, with the longest standard option being the XT51 thread adapter at 860mm (33.86 inches).
❓ Are these adapters suitable for high-impact drilling?
Yes, these shank adapters are engineered to withstand the high-frequency impact of modern hydraulic drifters, ensuring optimal energy transmission to the drill string.
❓ Do the ST/PE and T/PE models require specific diameters?
The Sandvik HL 1500/1560 T/PE and ST/PE series typically utilize a 90mm front-end diameter with GT60 threading for heavy-duty applications.
