Shank adapter for Montabert HC80 HC90 HC109 HC120 HC108 HC105 Drill rig

Send Inquiry

Product Description

🚀

Introducing the Shank Adapter for Montabert HC80 HC90 HC109 HC120 HC108 HC105 Drill Rig. If you are in search of a high-performance, durable shank adapter engineered for compatibility with Montabert HC series hydraulic drifters, our solutions provide the precision and strength required for demanding drilling environments.

🛠️ Technical Specifications

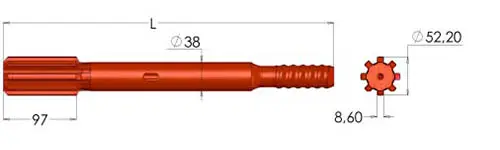

Montabert HC80 HC90 HC109 HC120 Shank Adapter

MONTABERT - HC 80, 90, 105, 108, 109, 120 Compatibility
Image Reference	Thread Type	Overall Length (L)		Front End Dia.		Product Reference No.
-	Type	mm	In.	mm	In.	Ref 1	Ref 2
HC Series Adapter	R32	440	17.32	38	1.5	-	90515893
	R38	440	17.32	38	1.5	-	90515964
	T38	440	17.32	38	1.5	7304-4720-01	90515985
	--- Extended Length Options ---
	R32	500	19.69	38	1.5	-	-
	R38	500	19.69	38	1.5	-	-
	T38	500	19.69	38	1.5	-	90515987

Frequently Asked Questions

🔸 What Montabert models are these shank adapters compatible with?

These adapters are specifically designed for Montabert HC series drifters, including models HC80, HC90, HC105, HC108, HC109, and HC120.

🔸 What thread types are available for these adapters?

We offer standard R32, R38, and T38 thread configurations to suit various drilling applications and drill string requirements.

🔸 Are there different length options for the HC series shank adapters?

Yes, our standard catalog includes overall lengths of 440mm (17.32 inches) and 500mm (19.69 inches) for most thread types.

🔸 What is the material quality of the shank adapters?

Our shank adapters are manufactured from premium high-strength alloy steel and undergo specialized heat treatment (carburization) to ensure maximum impact resistance and durability.

🔸 How do I identify the correct product number for my rig?

You can cross-reference your required thread and length with the reference numbers provided in our specification table (e.g., 90515985 for a 440mm T38 adapter).

🔸 Can these adapters handle high-frequency impact?

Yes, they are engineered specifically to withstand the high-energy output and frequency of modern Montabert hydraulic drifters, minimizing energy loss during power transmission.
