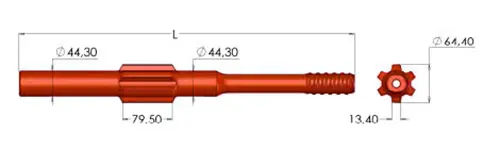

Product Detail: Shank Adapter
High-quality shank adapters designed for optimal energy transfer and durability in heavy-duty drilling applications.
Compatible Models
- Epiroc: BBE56U2, BBE57, BBE5701
- FURUKAWA: HD 260
- INGERSOLL-RAND: YH 60
- MONTABERT: H 100
- TOKYO RIUKI: HD 260
| EPIROC - BBE 56U2, BBE57, BBE5701 |
| THREAD |
OVERALL LENGTH (L) |
FRONT END DIAMETER |
| mm |
In. |
mm |
In. |
| T38 |
550 |
21.65 |
45 |
1.75 |
| T45 |
550 |
21.65 |
45 |
1.75 |
?
Frequently Asked Questions
What types of rock drills are these shank adapters suitable for?
These shank adapters are specifically designed for Epiroc BBE56U2, BBE57, BBE5701, as well as Furukawa, Ingersoll-Rand, Montabert, and Tokyo Riuki models mentioned in the specifications.
What thread options are available for the BBE 56U2 series?
The standard thread options available for this series include T38 and T45, both featuring a total length of 550mm.
How is the durability of these shank adapters ensured?
Each adapter is manufactured using high-strength alloy steel and undergoes precision machining and specialized heat treatment to withstand high-impact drilling environments.
Can I use the T45 thread for BBE57 models?
Yes, the specifications confirm that both T38 and T45 thread configurations are compatible with the Epiroc BBE57 series.
What is the front-end diameter for these adapters?
The front-end diameter for both the T38 and T45 thread versions is 45mm (approximately 1.75 inches).
Why is the shank adapter critical in the drilling process?
The shank adapter transmits impact power from the rock drill piston to the drill string. Quality adapters minimize energy loss and protect the rock drill's internal components.
