Our rock drilling tools manufacturer produces high-quality shank adapters for most models of current prevailing rock drill machines. All shank adapters are carburized, CNC manufactured, and made from premium steel. This ensures superior toughness and anti-fatigue strength to meet the most demanding drilling conditions.
Male shank adapters are generally better suited for drifting, tunneling, and extension applications where high bending stresses are present. Female shank adapters are used when drilling space is limited and total feed length is important, such as underground roof bolting.
The task of the shank adapter is to transmit rotation torque, feed force, impact energy, and flushing medium to the drill string. These adapters are designed to withstand the high impact power of modern rock drills and are made from specially selected material hardened through carburizing.
| Model Series | Thread | Length (mm) | Length (In.) | Front End Diameter (mm) |
|---|---|---|---|---|
| HL 1000-52 / 1010-52 | T45 / T51 | 590 - 670 | 23.23 - 26.38 | 52mm |
| HL 1000-60 / 1010-60 | ST58 / GT60 | 670 | 26.38 | 60mm |
| HL 1000 PE-65 / 1560 T/PE-65 | T51 / ST58 / GT60 | 760 | 29.92 | 65mm |
| HL 1000 T-80 / 1010 T-80 | GT60 | 760 | 29.92 | 80mm |

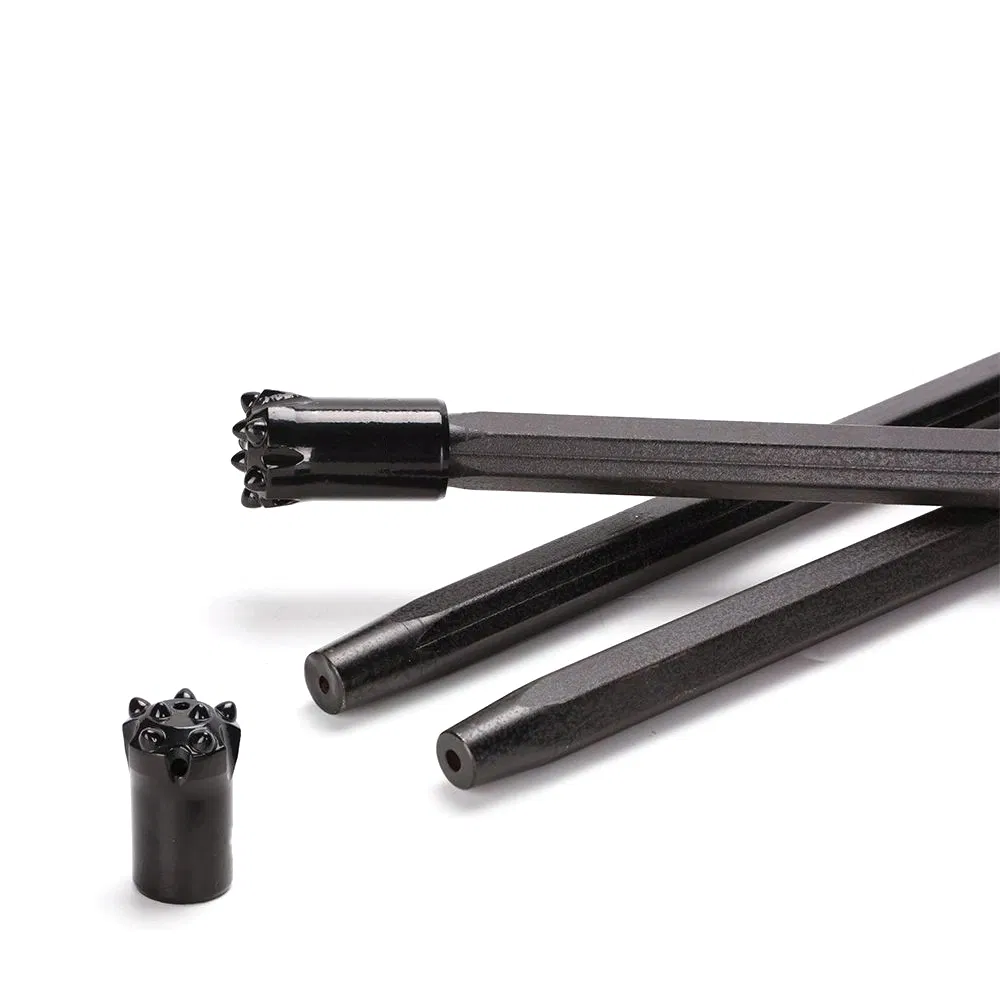

Tapered Equipment: Including tapered chisel bits, cross bits, button bits, H22/H25 drill rods, Pilot rods, and more. Customizable to specific demands.

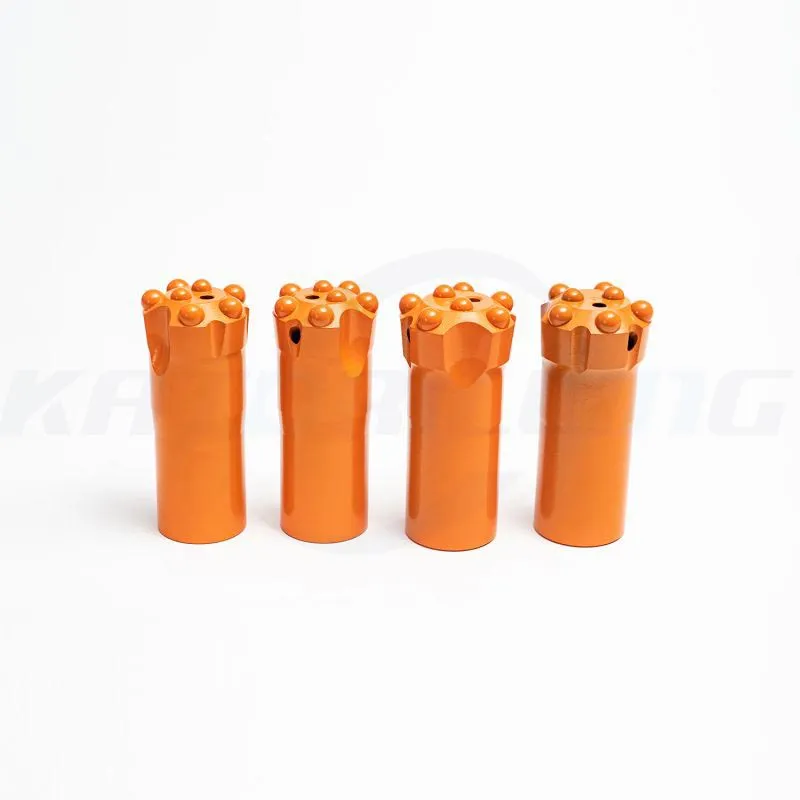

Drifting and Tunneling Button Bits: R25, R28, R32, SR32 series. Diameters ranging from 33mm to 76mm, featuring standard and retract designs.

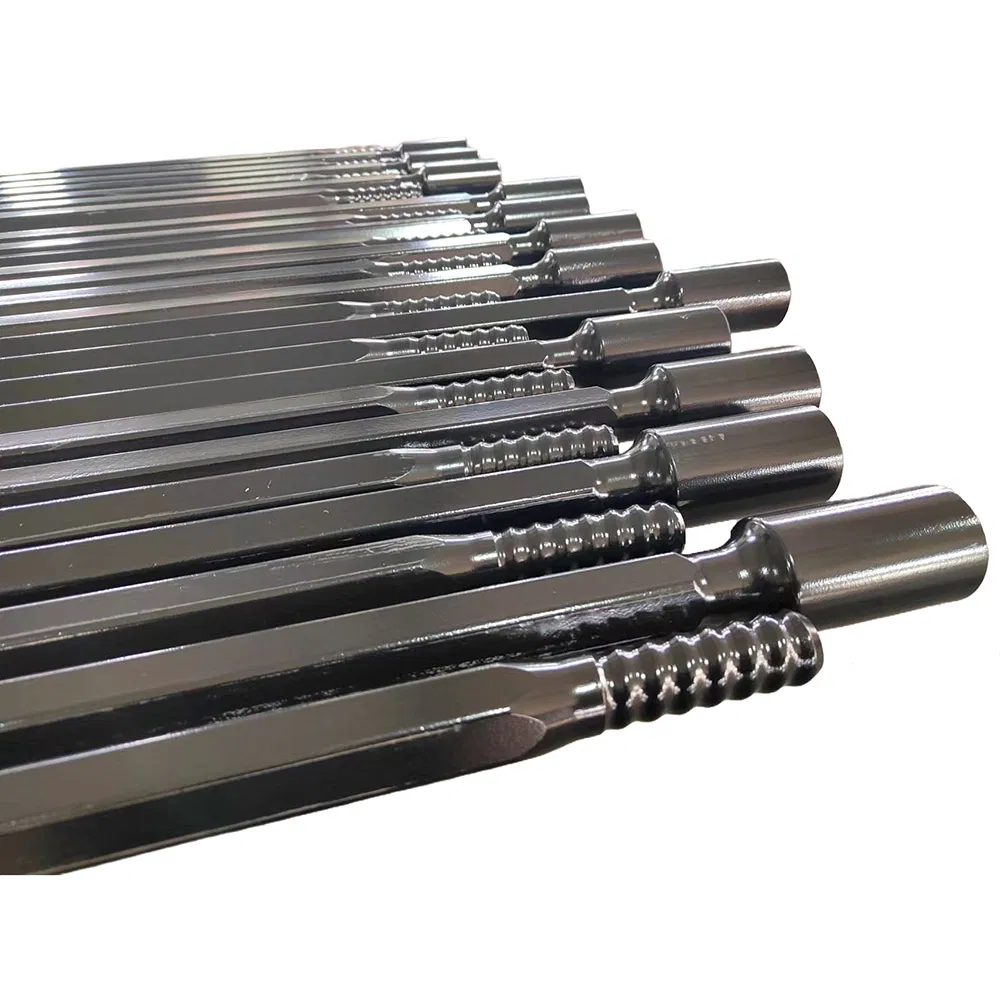

Drifter Rods: R32, T38, HEX32, HEX35 series with lengths from 700mm up to 6400mm. High durability for professional drilling.

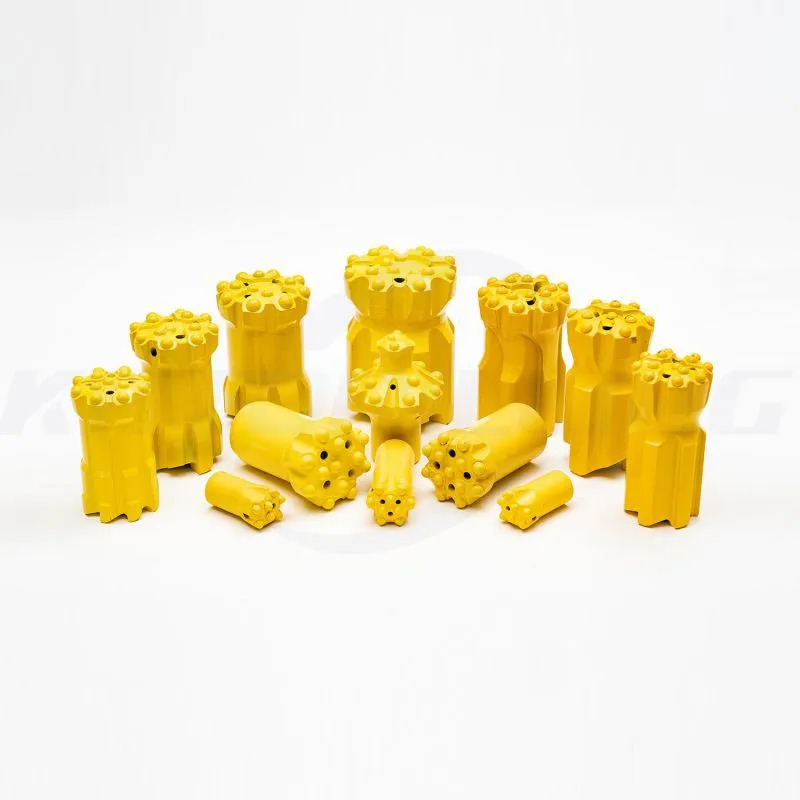

Bench Drilling Tools: T38, T45, T51, T60, ST58, and ST68 series including shank adapters, drill tubes, and button bits.

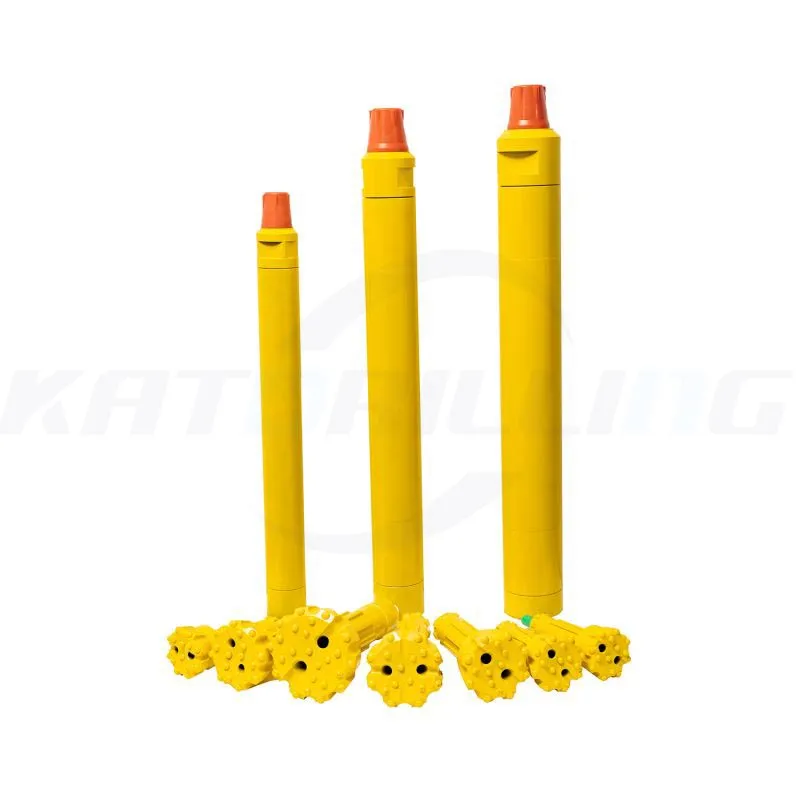

DTH Drilling Tools: High-performance DHD, QL, Mission series DTH hammers, drill bits, and pipes for deep hole drilling.
