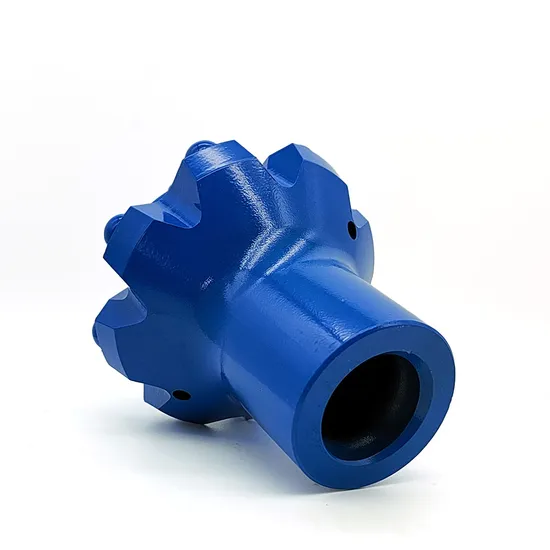

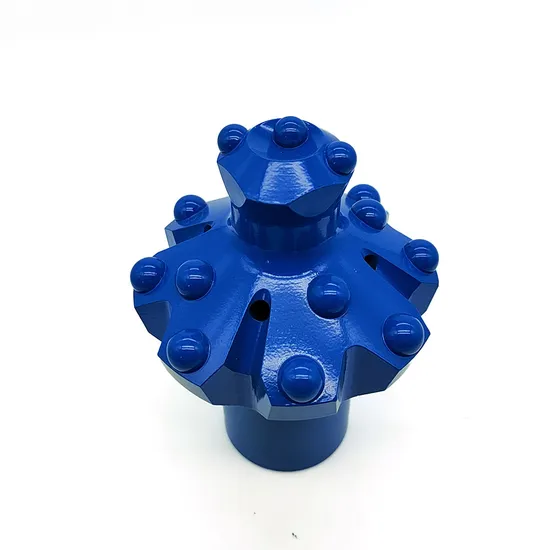

Reaming drilling tools are used when a large diameter is needed to be reamed out after a pilot hole is drilled to a depth. We provide pilot reaming drilling tools, domed reaming button bits, and adapter reaming button bits. Pilot reaming drilling tools consist of pilot adapters and reaming button bits; however, both domed reaming button bits and adapter reaming buttons bits are one-piece designed.
Applications: Drilling works for blasting duties in tunneling, construction, mining, quarrying, etc.
| Thread | Gauge Carbide | Front Carbide | D (Bit Dia) | d (Pilot Dia) | Flushing Hole | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| No. | mm | No. | mm | mm | in | mm | in | Front | Side | |
| R 32 | 8 | 14 | 4 / 3 | 11 / 11 | 102 | 4" | 41 | 1 5/8" | 2 | 0 |
| T 38 | 8 | 14 | 7/4/2 | 11/11/9.5 | 102 | 4" | 51 | 2" | 2 | 0 |
| T 45 | 8 | 14 | 4/6 | 12.7/12.7 | 127 | 5" | 64 | 2 1/2" | 2 | 0 |
| ST 58 | 8 | 16 | 4/6 | 14 / 14 | 152 | 6" | 89 | 3 1/2" | 2 | 0 |
| R 32 | 8 | 11 | 7 | 9.5 | 76 | 3" | 29 | 1 5/32" | 3 | 1 |
