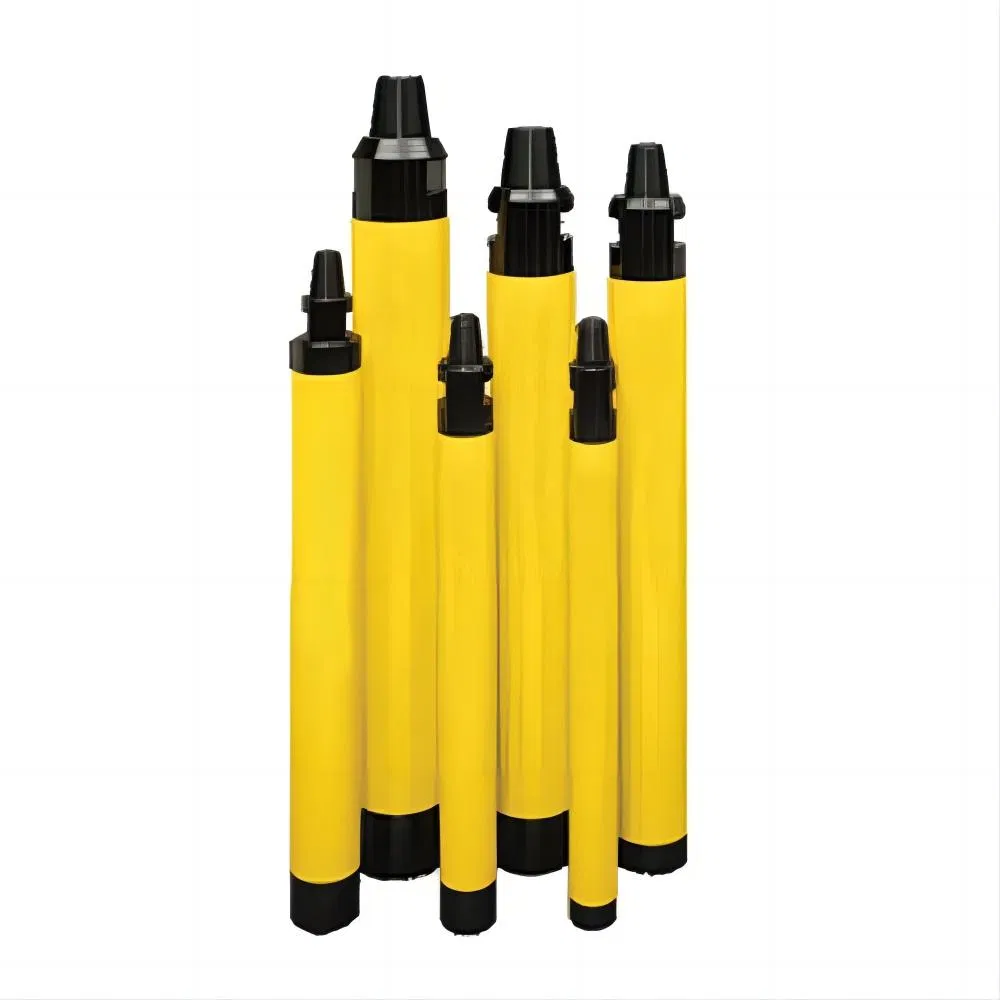

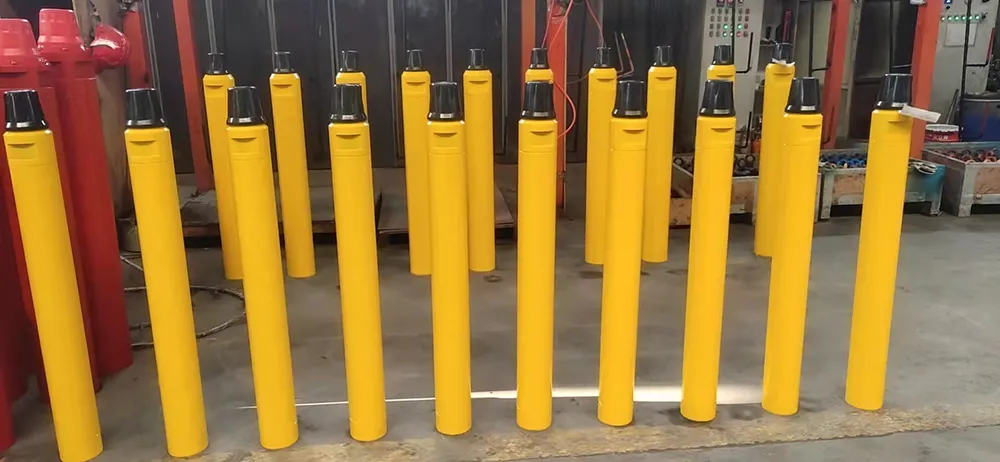

High air pressure DTH hammer is an advanced down-the-hole drilling tool designed for percussive drilling in rock formations. Characterized by high air pressure and superior efficiency, it is the ideal choice for projects with abundant air supply. By utilizing compressed air to drive the piston in a reciprocating motion, it generates high impact energy directly to the drill bit.
| Type | Model | Length (mm) | Weight (kg) | Ext. Dia (mm) | Hole Range (mm) |
|---|---|---|---|---|---|
| 3.5 inch | DHD3.5 | 930 | 25 | Φ82 | Φ90-110 |
| 4 inch | DHD340 | 1030 | 39 | Φ99 | Φ110-135 |
| 5 inch | DHD350 | 1214 | 76.5 | Φ125 | Φ135-155 |
| 6 inch | DHD360 | 1248 | 100 | Φ142 | Φ155-190 |
| 8 inch | D85 | 1492 | 188 | Φ180 | Φ195-254 |
| 10 inch | SD10 | 1502 | 290 | Φ226 | Φ254-311 |

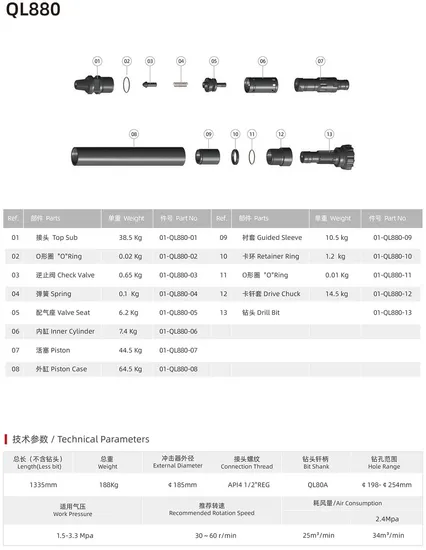

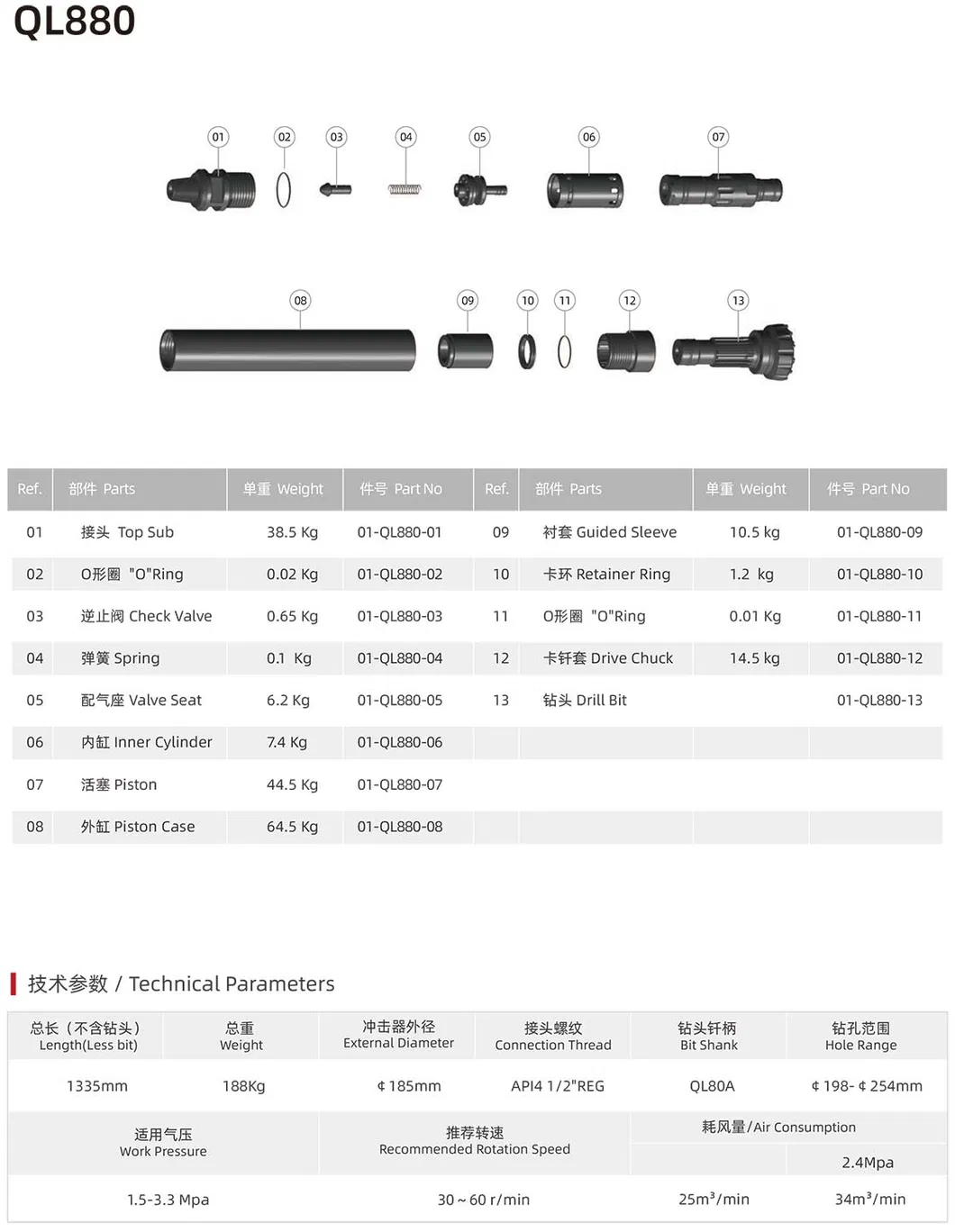

| Hammer Length (without bit) | 1335 mm |
| Top Sub Thread | API 4 1/2" REG PIN |
| Outside Diameter | 185 mm |
| Weight | 188 KG |
| Bit Diameter Range | 198-254 mm |
| Working Pressure | 15-33 Bar |
| Air Consumption | 25-34 M³/min |
| Bit Shank | QL80A |
