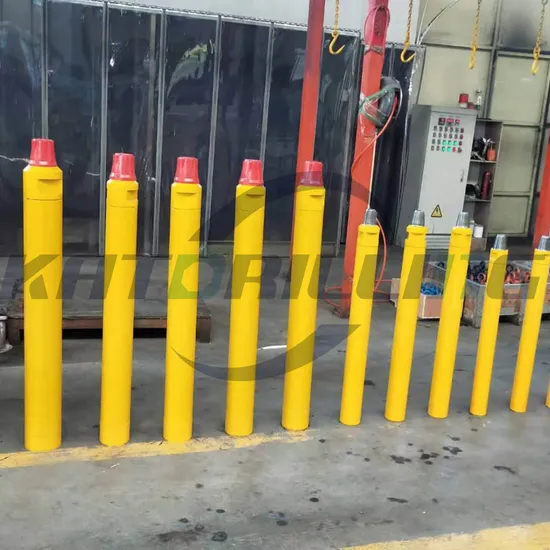

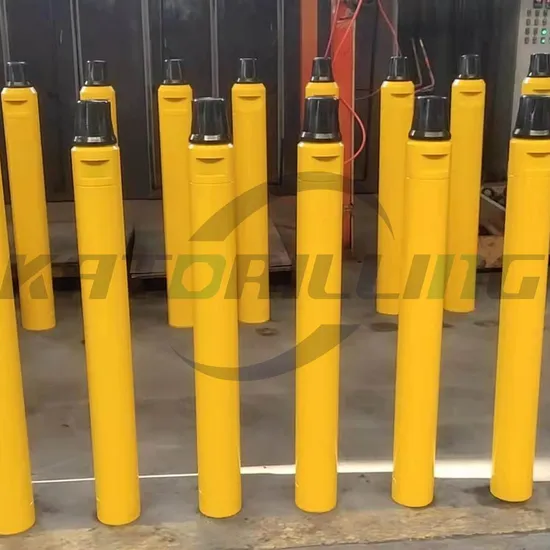

High-Quality Ql680 Water Well Drilling Rigs DTH Hammer for Construction and Mining Manufacturer, Manufacturers

1 / 5

High-Quality Ql680 Water Well Drilling Rigs DTH Hammer for Construction and Mining Manufacturer, Manufacturers

Product Details

Customization:	Available
After-sales Service:	Repair or Replacement
Warranty:	6 Months

Send Inquiry

Product Description

📋

Basic Information

Model NO.

QL680 DTH Hammer

Certification

CE, ISO 9001:2000, ISO 9001:2008

Material

Carbon Steel

Surface Treatment

Spray-Paint

Outside Diameter

148mm

Length

1155mm

Weight

102kg

Working Pressure

1.2-2.7MPa

Production Capacity

500000PCS/Month

⚙️

Product Description

The high air pressure DTH hammer is a specialized down-the-hole tool designed for high-efficiency percussive drilling in rock formations. By utilizing compressed air to drive the piston in a reciprocating motion, it generates powerful impact energy directly to the drill bit. This tool is ideal for mining, quarrying, water well drilling, and civil engineering construction.

Key Advantages:

Maximum energy delivery for faster drilling speed

Low air consumption with optimized inner structure

High-quality alloy steel for extended service life

Simplified design for easy maintenance and assembly

Interchangeable with standard bits and drill pipes

Foot Valve not required in the bit design

📊

Technical Parameters

Type	Model	Length (mm)	Weight (kg)	Ext. Dia (mm)	Hole Range (mm)
3.5 inch	DHD3.5	930	25	Φ82	Φ90-110
4 inch	DHD340	1030	39	Φ99	Φ110-135
	SD4	1084	40.5	Φ99	Φ110-135
	QL4	1097	41	Φ99	Φ110-135
	Mission40	1005	40	Φ99	Φ110-135
5 inch	DHD350	1214	76.5	Φ125	Φ135-155
	SD5	1175	72.5	Φ125	Φ135-155
	QL5	1147	73	Φ125	Φ135-155
	Mission50	1110	68.5	Φ125	Φ135-155
6 inch	DHD360	1248	100	Φ142	Φ155-190
	SD6	1261	100	Φ142	Φ155-190
	QL6	1212	95	Φ146	Φ155-190
	Mission60	1161	90	Φ146	Φ155-190

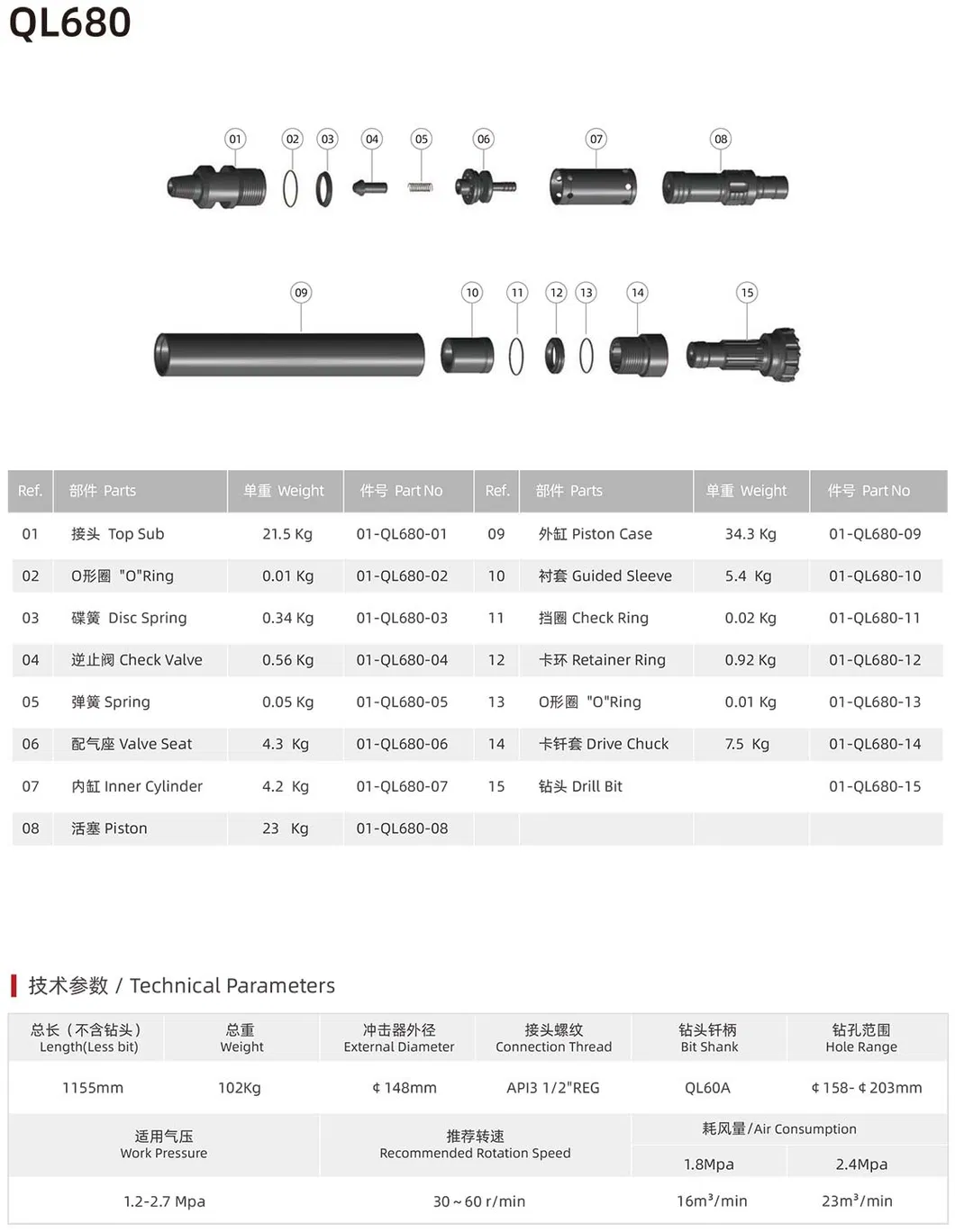

QL680 DTH Hammer Details:

Top Sub Thread:

API 3 1/2" REG PIN

Bit Diameter:

158-203(mm)

Air Consumption:

16-23(M3/min)

Bit Shank:

QL60A

📸

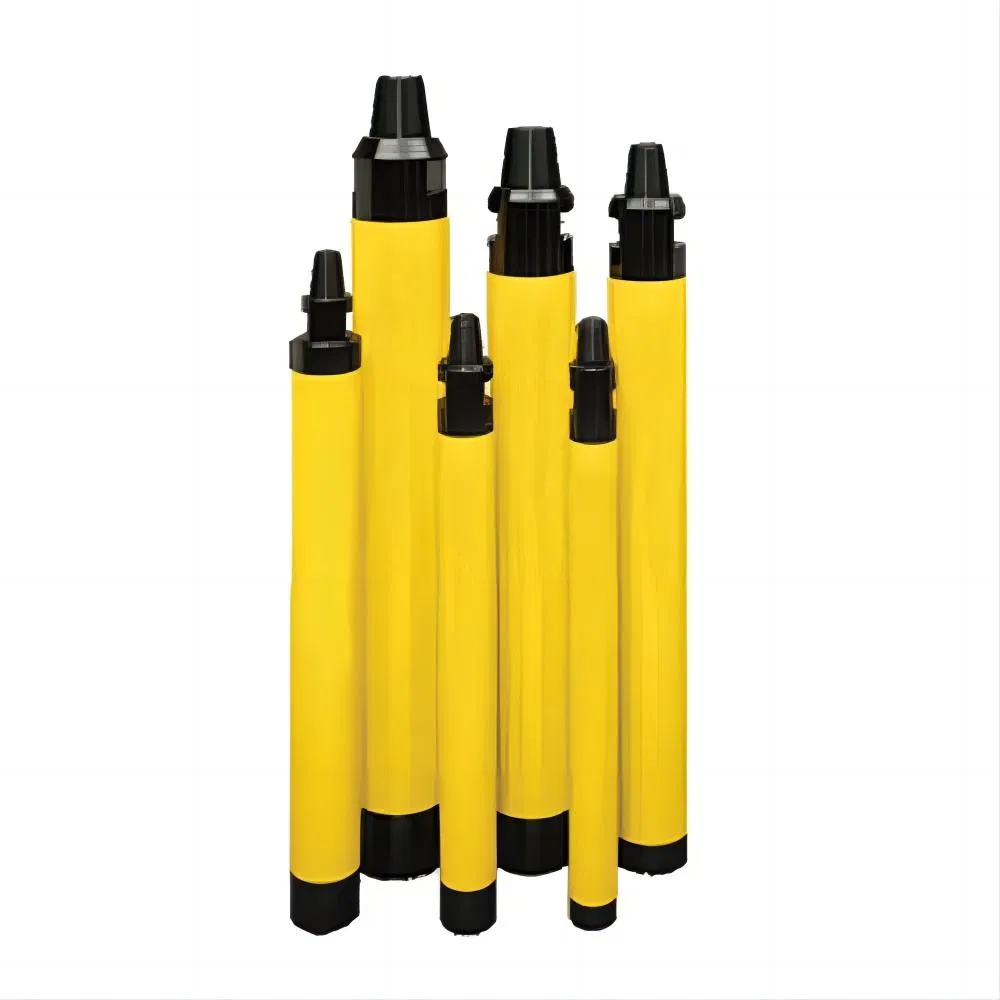

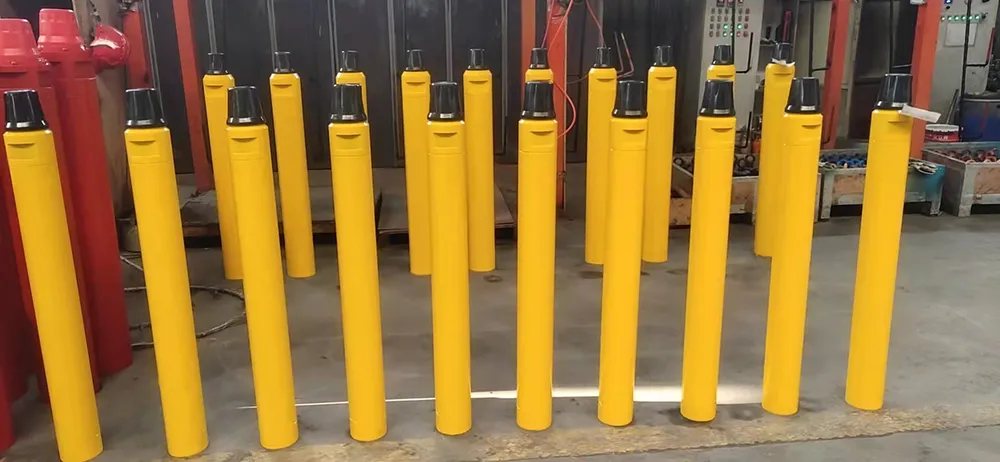

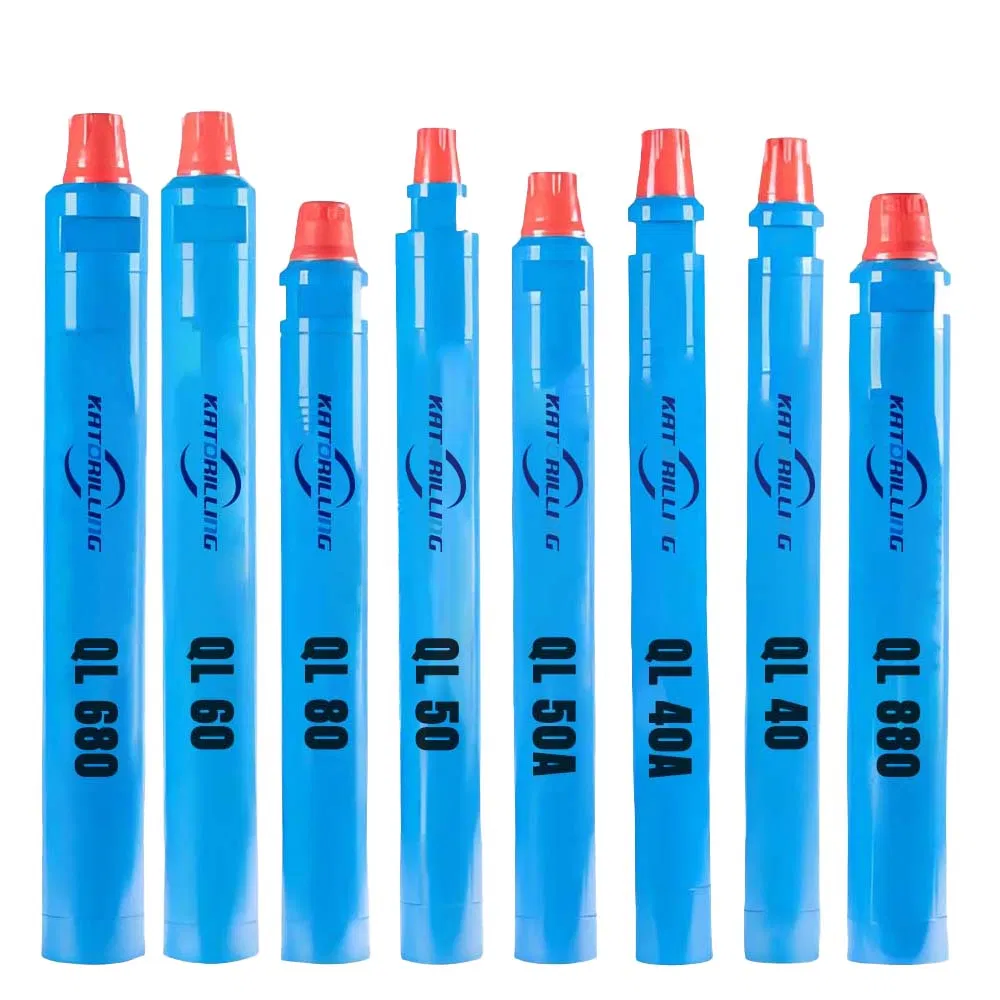

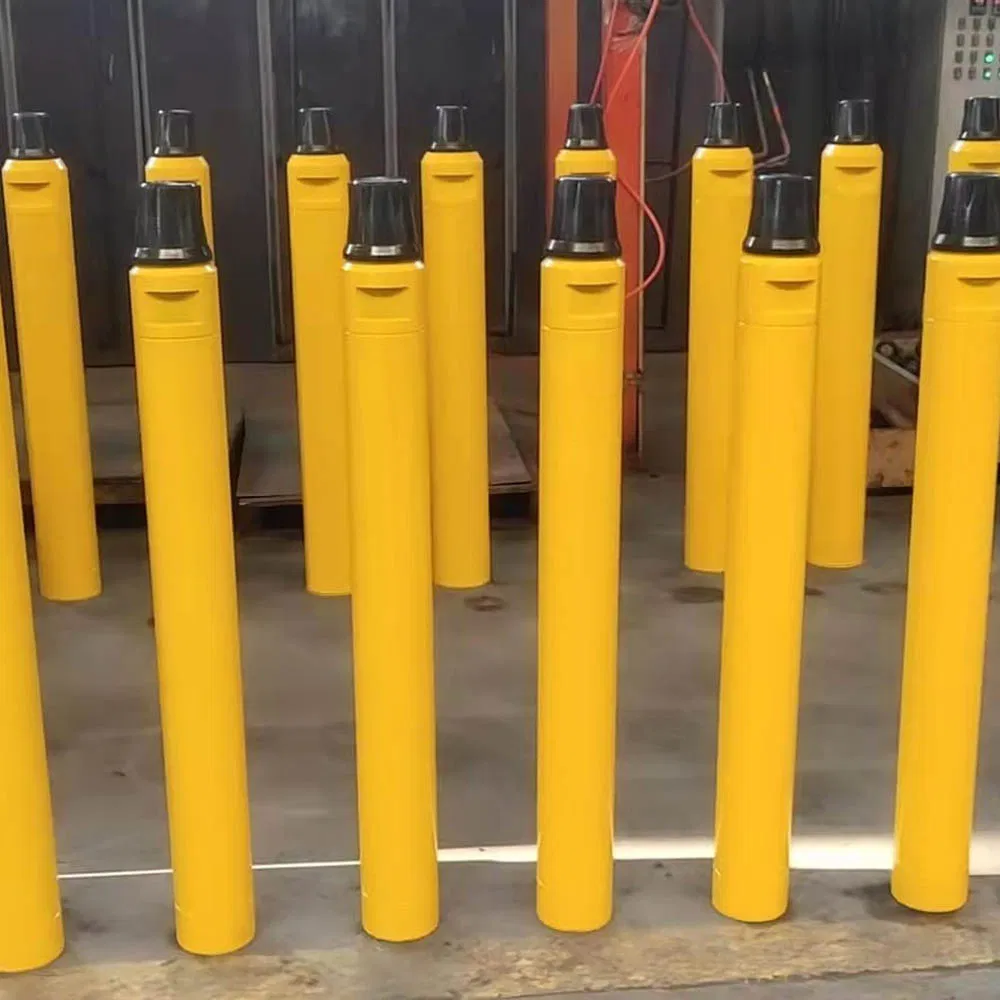

Product Gallery

📦

Packaging & Delivery

Frequently Asked Questions

What payment methods are accepted?

We accept T/T (Telegraphic Transfer), Western Union, or L/C at sight.

How long is the handling time for an order?

Based on the order quantity, production normally takes about 25 days. If the requested size is in stock, it only takes 2 to 3 days.

What are the available shipping methods?

For sample orders, we suggest courier express (DHL/UPS/TNT/FEDEX) or air. For bulk orders, we recommend shipping by air or by sea.

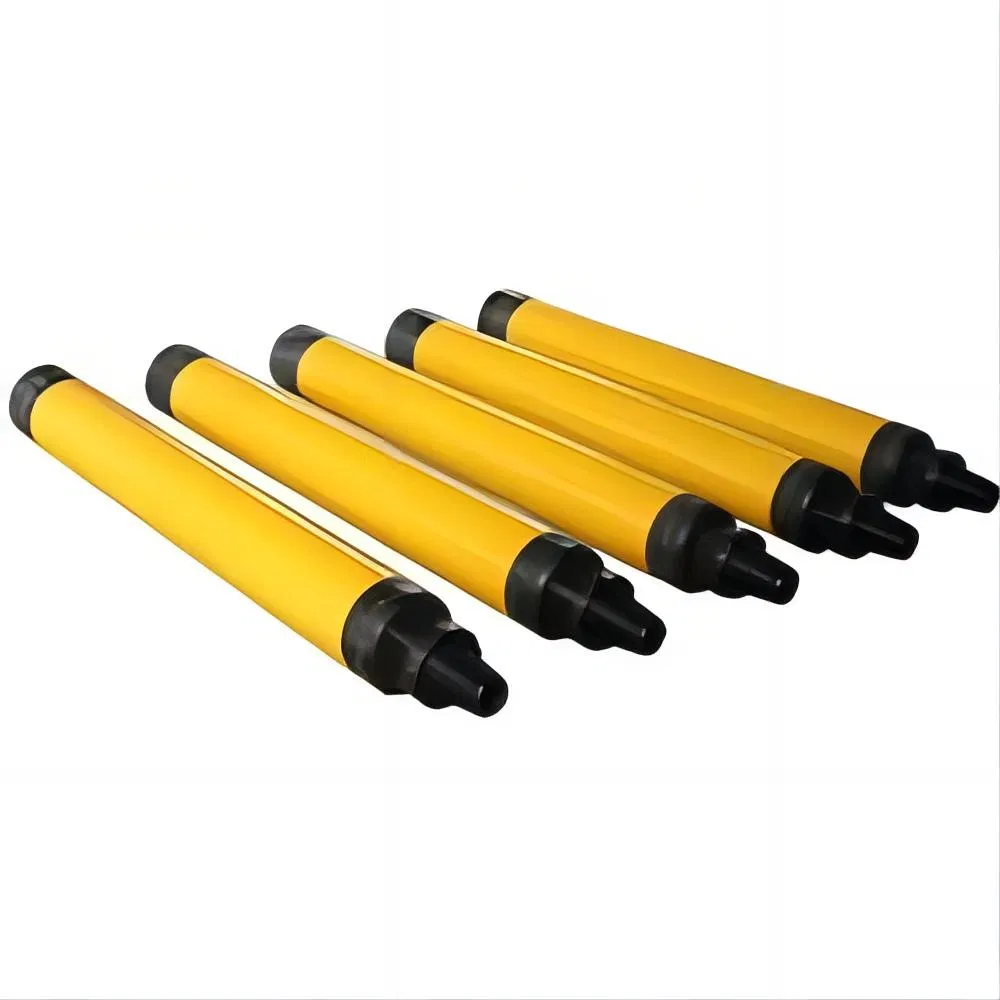

How is product quality controlled?

We have an experienced internal QC team. Every order undergoes strict inspection and testing before being shipped out.

What kind of after-sales service do you provide?

Our sales team responds to inquiries within 24 hours. Technical support is available at any time, and free replacements are provided for confirmed quality failures.

Can you provide technical support for drilling applications?

Yes, technical support is available at any time to help you maximize drilling efficiency and select the right tools for your specific rock formation.
