KAT DRILLING
1 / 5

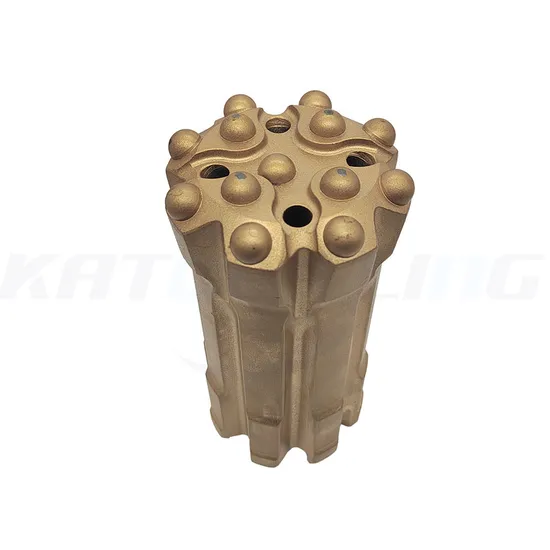

Bench and production drilling tools include rods, shank adapters, couplings and bits. We offer 9 main thread types: R3212, R32, HL38, T38, T45, T51, T60, ST58 and ST68. These are compatible with button bits, cross bits and reaming products.
Our comprehensive range of bench and production rock drilling tools includes equipment from 1" rope thread up to T60 thread. Our drill rods, tubes, and button bits are designed to improve productivity considerably in the field.
| Carbide Dimensions | Dimensions D | Flushing Hole | |||||
|---|---|---|---|---|---|---|---|
| Gauge | Front | mm | in | Front | Side | ||
| 6 | 14 | 4 | 14 | 89 | 3 1/2" | 3 | 0 |
| 8 | 12.7 | 6 | 11 | 82 | 3 1/4" | 2 | 1 |
| 8 | 12.7 | 6 | 11 | 85 | 3 3/8" | 2 | 1 |
| 8 | 12.7 | 6 | 12.7 | 89 | 3 1/2" | 2 | 0 |
| 8 | 14 | 6 | 14 | 102 | 4" | 2 | 0 |
| 8 | 16 | 6 | 14 | 115 | 4 1/2" | 2 | 0 |
| 8 | 16 | 8 | 14 | 127 | 5" | 2 | 0 |
| 8 | 16 | 8 | 16 | 140 | 5 1/2" | 2 | 0 |
