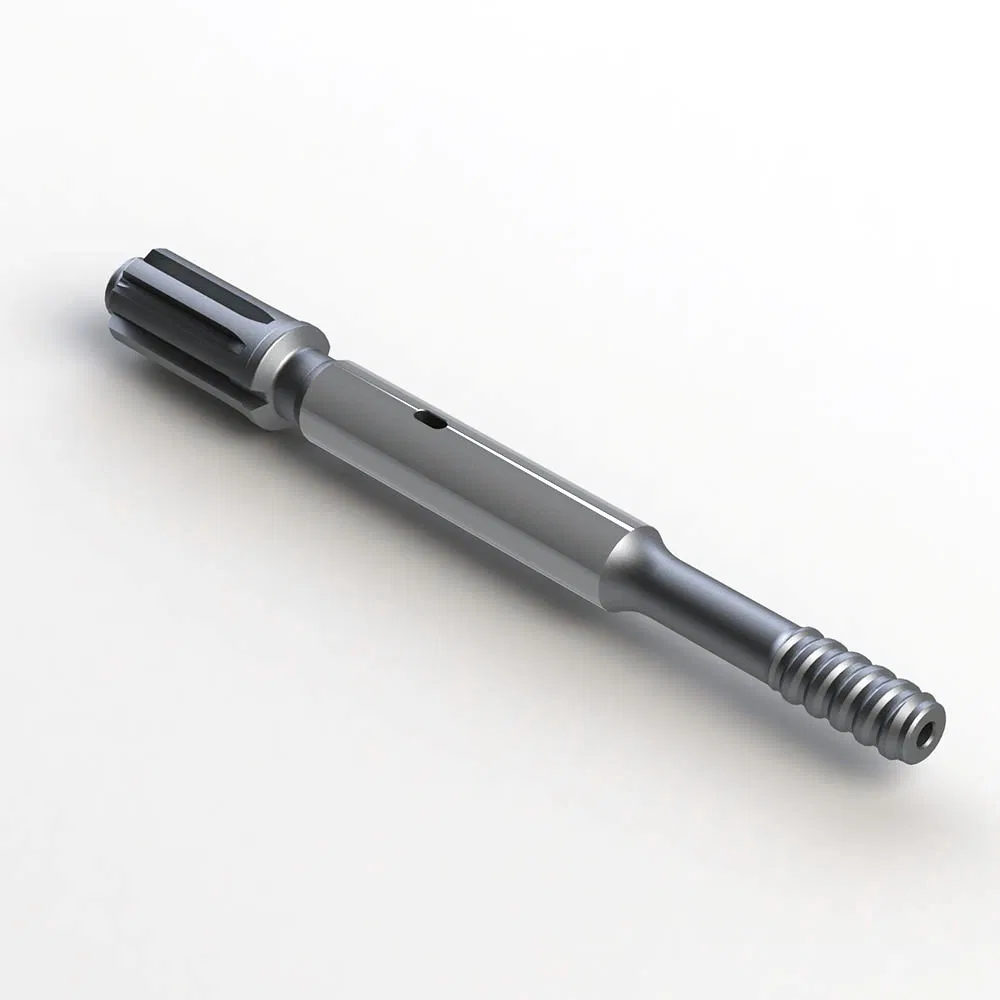

Premium shank adapters are produced for most models of current prevailing rock drill machines. All adapters are carburized, CNC manufactured, and made from premium steel. This ensures superior toughness and anti-fatigue strength to meet the most demanding drilling conditions.
The task of the shank adapter is to transmit rotation torque, feed force, impact energy, and flushing medium to the drill string (extension drill rods, drifting drill steels).
Male vs Female Adapters:
| Brand | Supported Models |
|---|---|
| Atlas Copco | VL140, BBC42, COP125, COP131, COP1038, COP1238, COP1838, COP1840, COP2150, COP2550, SC16, RD14S, RD22S, COP3038, COP4038, etc. |
| Tamrock | HLX 1, RD106, HL300, HLX5, HL500, HL510, HL600, HL700, HL800T, HL1000, HL1010, HL1560T, HL1500T |
| Furukawa | HD 200, HD 300, HD 500, HD 609, HD 712, HD 715, HD 822, PD 200 |
| Ingersoll-Rand | Hydrastar 200, VL 140, EVL 130, YH 65, YH 80A, YH 100 RP, YH 135 |
| Montabert | HC 20, HC 40, HC 80, HC 105, HC 120, HC 150, HC 200 |
| Thread | Overall Length (mm) | Overall Length (In.) | Front End Diameter (mm) | Front End Diameter (In.) |
|---|---|---|---|---|
| T51 | 760 | 29.92 | 65 | 2.56 |
| ST58 | 760 | 29.92 | 65 | 2.56 |
| GT60 | 760 | 29.92 | 65 | 2.56 |
