Basic Information
Certification
CE, ISO 9001:2000, ISO 9001:2008
Surface Treatment
Spray-Paint
Machine Type
Drilling Tools
Color
Red, Black, Yellow, White
Shank Adapter
CIR/DHD/M/Ql/SD
Connection Thread
API2 3/8"Reg
Package Size
30.00cm * 30.00cm * 30.00cm
Production Capacity
500,000 PCS/Month
Product Description
Because of economy and powerful drilling capacity, down the hole hammer become an advanced drilling tool for drilling and mining industries. Down the hole hammers and drill bits are designed together to work in perfect unison, giving high penetration rates, long service life and low costs.
Deliver maximum energy to drilling bit, fast drilling speed and low air consumption.
Smooth performance and long service life due to high quality alloy steel materials.
Low problem rate and easy to maintenance due to simple, reliable inner structure.
Easy to depart bit from hammer due to multihead thread connecting chuck.
Suitable for high pressure drilling, water well drilling, and mining exploration.
Penetrate 15% to 30% faster than standard tools.
Technical Parameters
| Length(Less bit) |
Weight |
Outer diameter |
Connection Thread |
Bit Shank |
Hole Range |
| 928mm |
25Kg |
φ82mm |
API2 3/8"REG |
DHD3.5 |
φ90-φ110mm |
| Work Pressure |
Recommended rotation speed |
Air Consumption 1.0Mpa |
Air Consumption 1.5Mpa |
| 1.0-31.7 Mpa |
30-60 r/min |
4.5m³/min |
8.5m³/min |

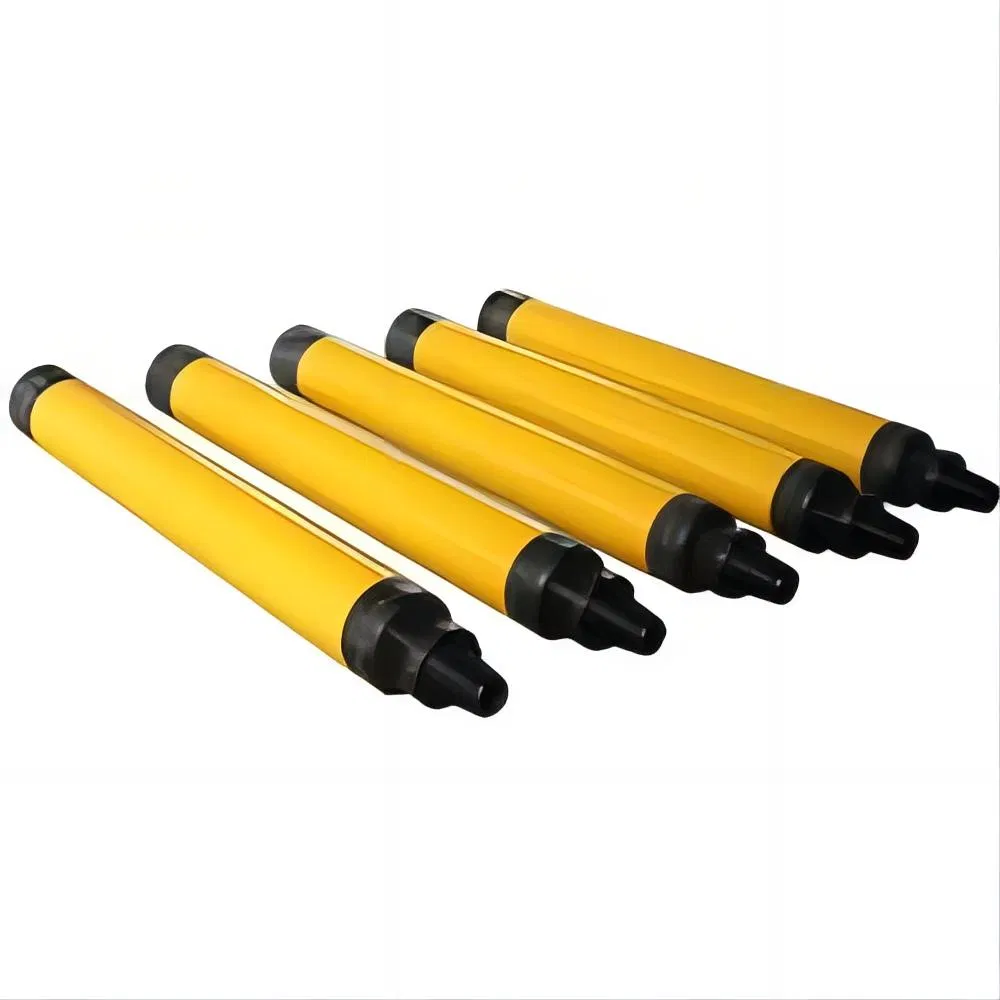

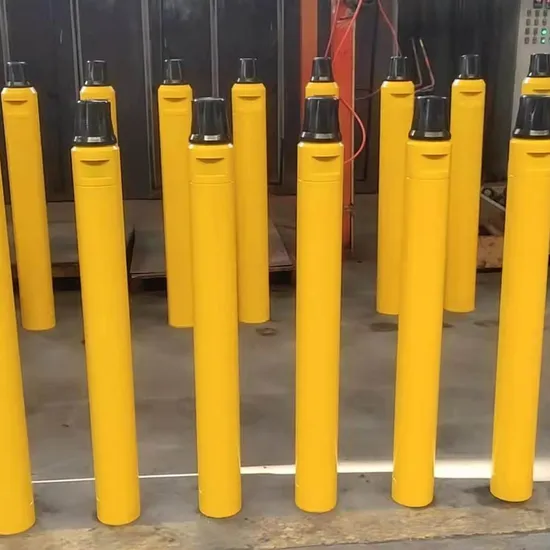

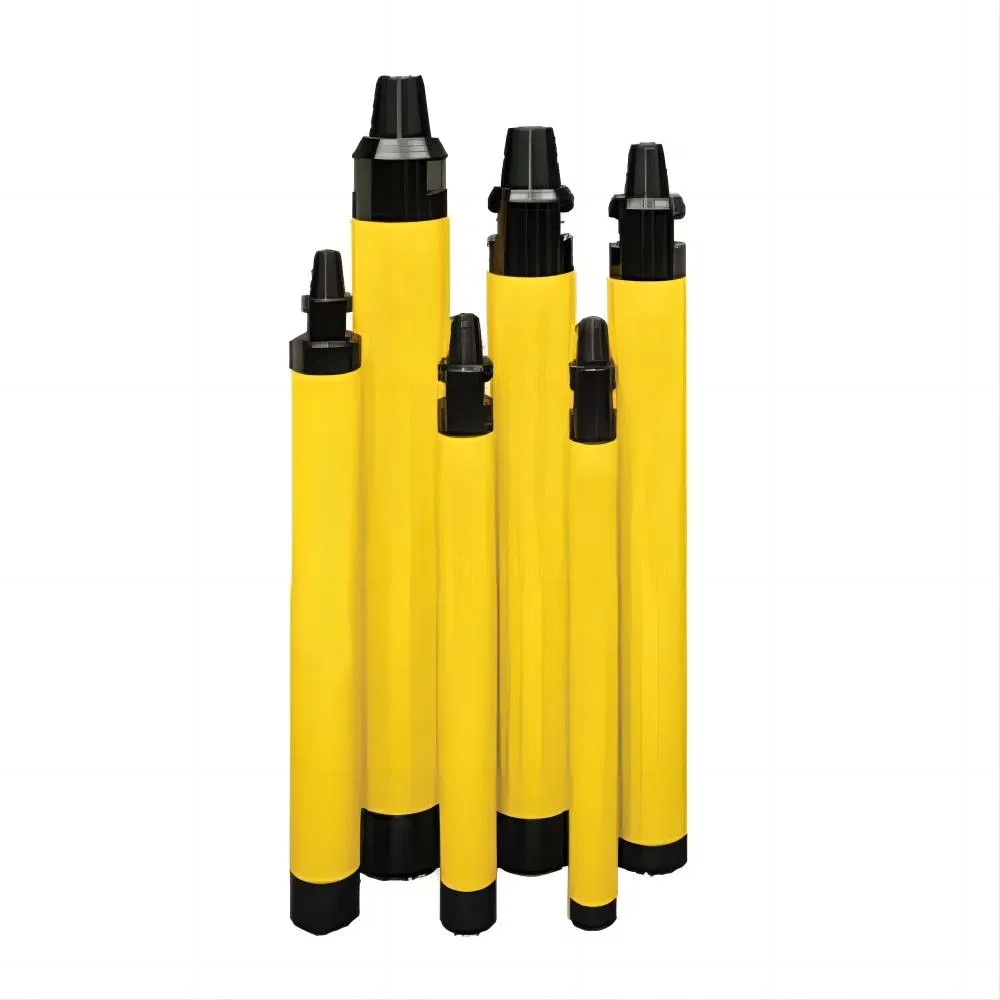

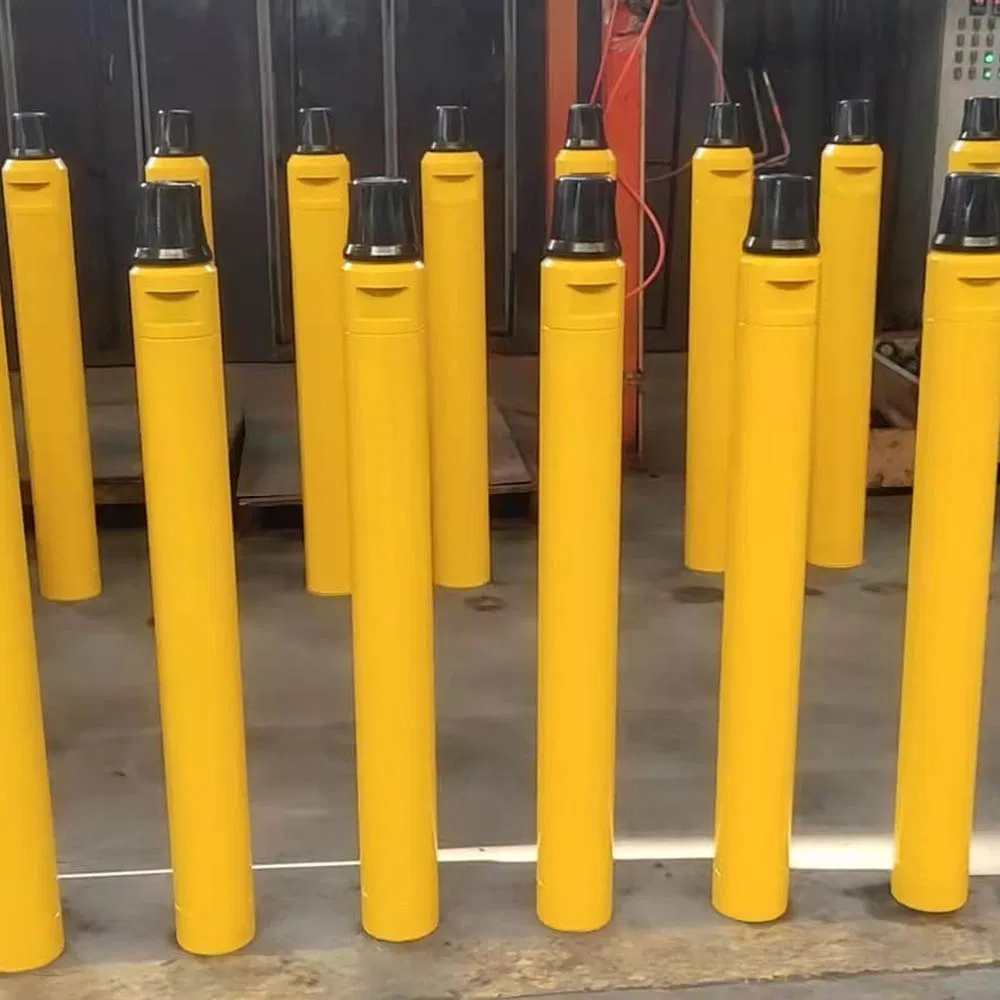

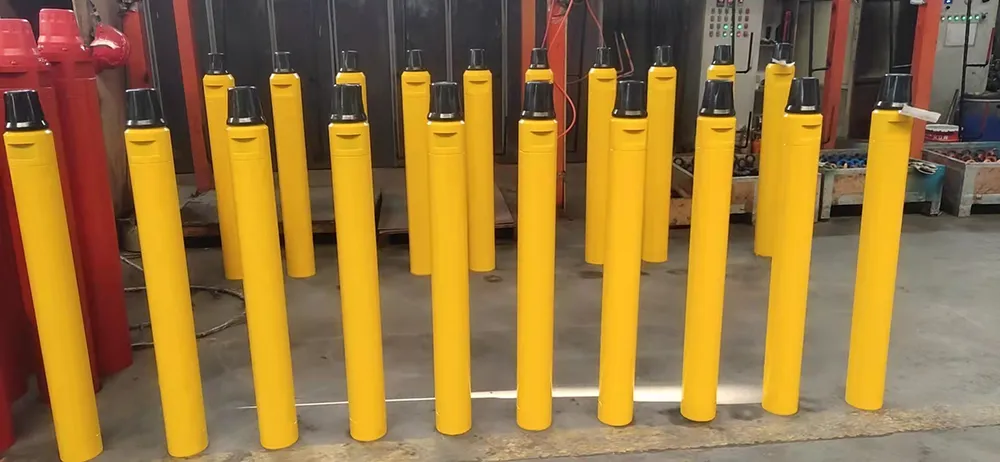

Detailed Photos
Packaging & Shipping
FAQ
1. What methods of payment do you accept?
We accept T/T (Telegraphic Transfer), Western Union, or L/C at sight.
2. How long does it take to handle an order?
Based on order quantity, it normally takes 25 days for production. If we have stock for your requested size, it only takes 2 or 3 days.
3. What are the available shipping ways?
For sample orders, we suggest courier express (DHL/UPS/TNT/FEDEX) or by air. For bulk orders, we suggest shipping by air or by sea.
4. How is the product quality controlled?
We have our own experienced QC team. Every order undergoes strict inspection and testing before being shipped out.
5. What kind of after-sales service do you provide?
Our team responds to questions within 24 hours. Technical support is available at any time, and free replacements are provided if a failure is confirmed due to product quality.
6. Is a foot valve required for the DTH bits?
No, a foot valve is not required in the bit, which helps in maximizing efficiency and simplifying the design.
