High-Quality Mission50 High Wind Pressure Down The Hole Impactor DTH Hammer for Water Well Drilling Factory, Pricelist

1 / 5

High-Quality Mission50 High Wind Pressure Down The Hole Impactor DTH Hammer for Water Well Drilling Factory, Pricelist

Product Details

Customization:	Available
After-sales Service:	Repair or Replacement
Warranty:	6 Months

Send Inquiry

Product Description

■ Basic Info.

Model NO.

Mission50

Certification

CE, ISO 9001:2000, ISO 9001:2008

Standard

AISI, GB

Surface Treatment

Spray-Paint

Manufacturing Process

Stamping

Material

Carbon Steel

Machine Type

Drilling Tools

Color

Red, Black, Yellow, White

Working Pressure

1.0-2.2MPa

Production Capacity

500000PCS/Month

■ Product Description

The high air pressure DTH hammer is a specialized down-the-hole tool designed for high-efficiency percussive drilling in rock formations. Powered by compressed air, it drives a piston to generate intense impact energy, allowing for rapid penetration into hard rock. It is widely applied in mining, quarrying, water well drilling, and construction engineering.

Maximum Energy Transfer: Optimized inner structure based on modern rock drilling theory for faster drilling and lower air consumption.
High Durability: Crafted from premium alloy steel with advanced processing technology for a longer service life.
Simple Maintenance: Reliable internal design allows for easy assembly and disassembly, reducing downtime.
Robust Connection: Multi-head thread connecting the chuck and cylinder makes it easy to detach the bit from the hammer.
Versatile Compatibility: Fully interchangeable with standard DTH bits and drill pipes.

■ Specifications & Technical Data

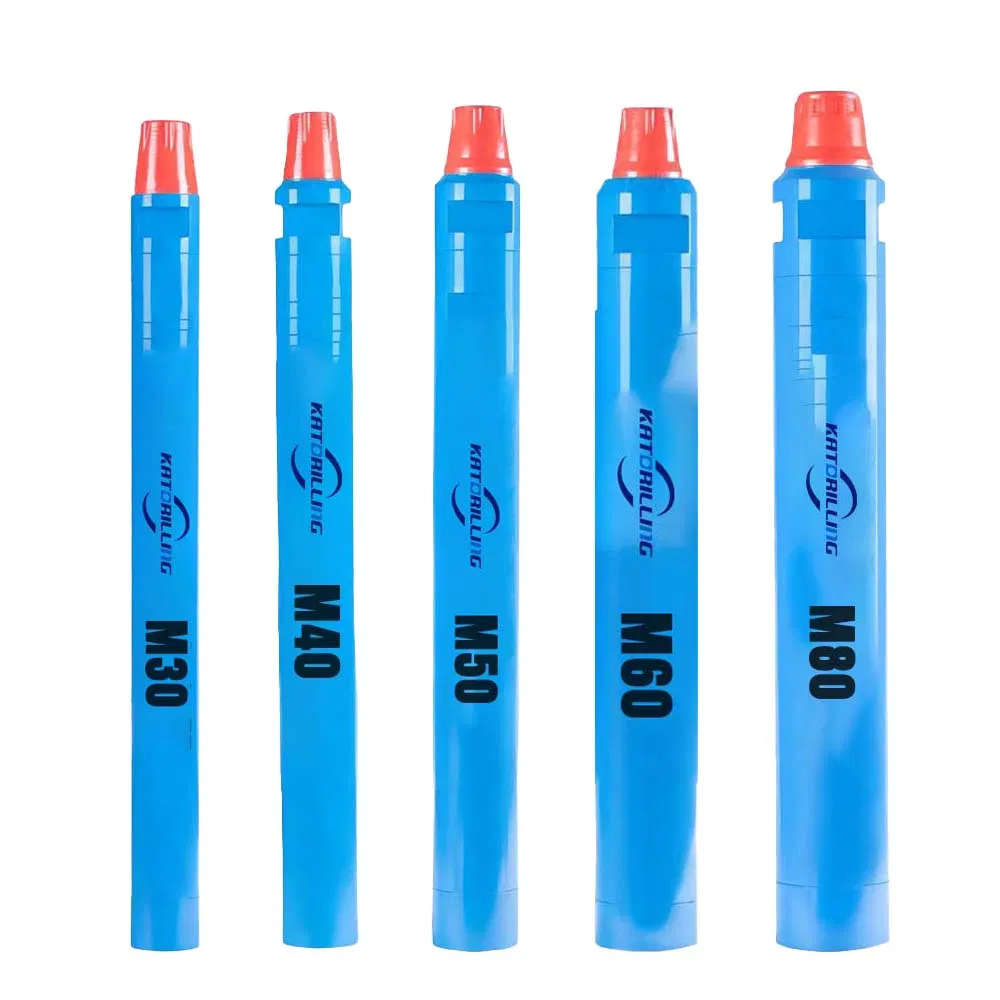

Type	Model	Length (mm)	Weight (kg)	External Dia.(mm)	Hole Range (mm)
3.5 inch	DHD3.5	930	25	Φ82	Φ90-110
4 inch	Mission40	1005	40	Φ99	Φ110-135
5 inch	Mission50	1110	68.5	Φ125	Φ135-155
6 inch	Mission60	1161	90	Φ146	Φ155-190
8 inch	Mission80	1338	176	Φ180	Φ195-254

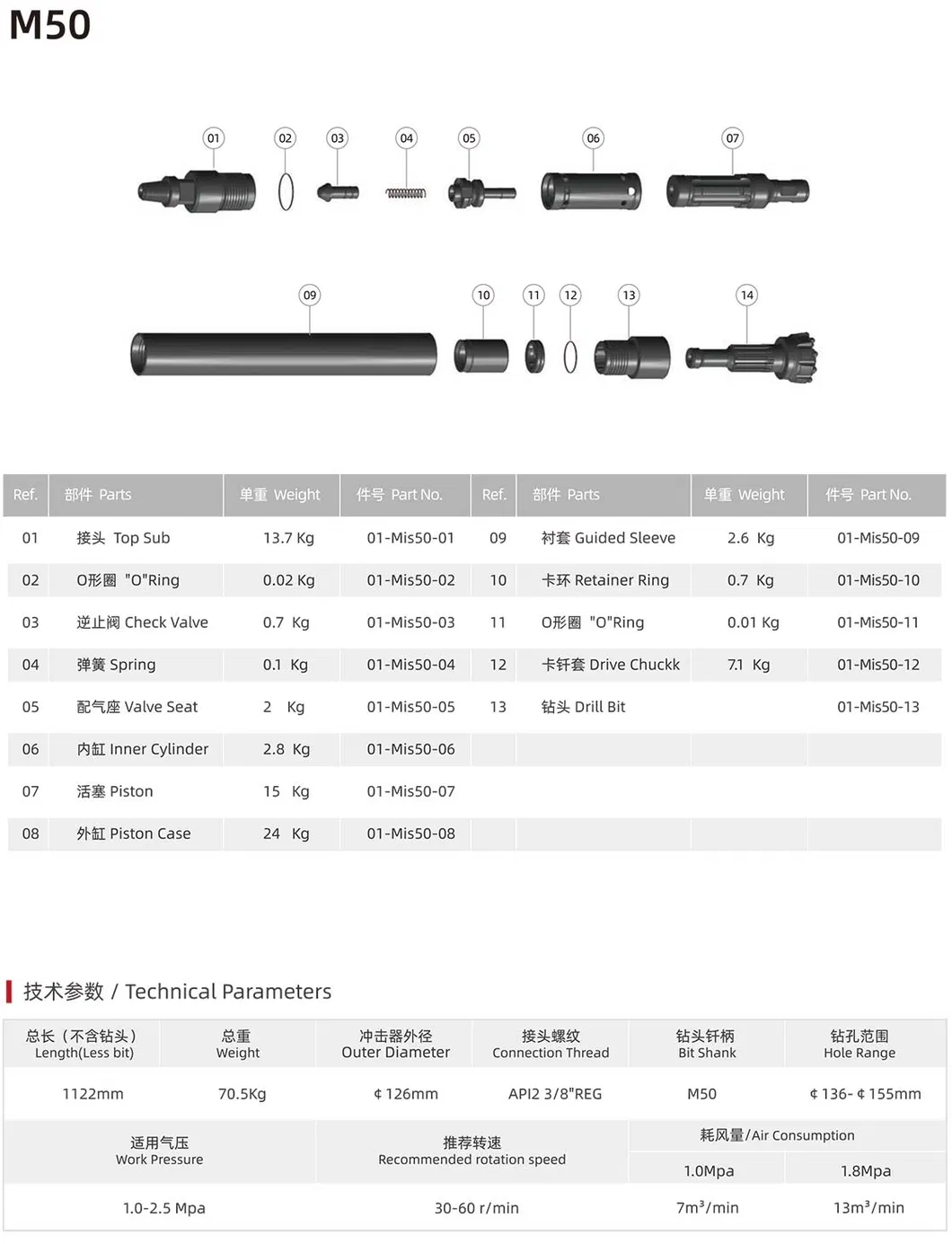

Mission 50 DTH Hammer Details:

Hammer Length without bit	1112 (mm)
Top sub thread	API 2 3/8"REG PIN
Outside diameter	126(mm)
Weight	70.5 (KG)
Bit diameter	136-155(mm)
Working Pressure	1.0-2.5Mpa
Air consumption	7-13(M3/min)
Bit shank	Mission50

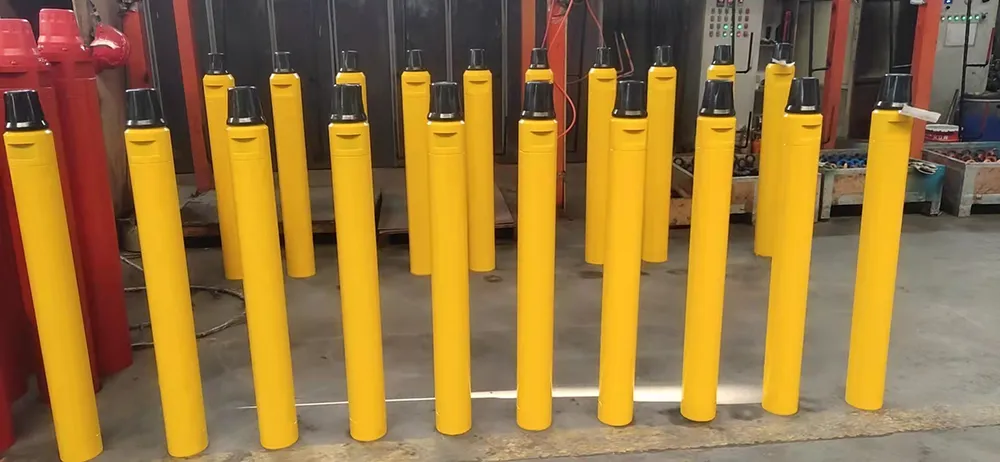

■ Detailed Photos

■ Packaging & Shipping

■ Frequently Asked Questions

What methods of payment do you accept?

We accept T/T (Telegraphic Transfer), Western Union, or L/C at sight.

How long does it take to process an order?

Based on order quantity, production normally takes about 25 days. If the requested size is in stock, it only takes 2 to 3 days.

What are the available shipping options?

For sample orders, we suggest express couriers like DHL/UPS/TNT/FEDEX or air freight. For bulk orders, we recommend shipping by air or sea.

How is quality control managed?

We have our own experienced QC team. Every order undergoes strict inspection and testing before being shipped out.

What kind of after-sales service is provided?

Our team responds to inquiries within 24 hours. Technical support is always available, and free replacements are provided for confirmed quality failures.

Is a foot valve required for the drill bit?

No, the high air pressure DTH hammer is designed so that a foot valve is not required in the bit, maximizing efficiency.
