High-Quality DHD1120 Rock Drilling Rig Down The Hole Impactor DTH Hammer for Construction and Mining Factory, Quotes

Customization:	Available
After-sales Service:	Repair or Replacement
Warranty:	6 Months

📋Basic Information

Model NO.DHD1120

CertificationCE, ISO 9001:2000, ISO 9001:2008

StandardAISI, GB

Surface TreatmentSpray-Paint

ProcessStamping

MaterialCarbon Steel

Machine TypeDrilling Tools

ColorRed, Black, Yellow, White

Outside Diameter275mm

Weight598kg

Working Pressure1.5-3.3MPa

Production500,000 PCS/Month

🚀Product Description

High air pressure DTH hammer is a specialized down-the-hole tool designed for high-efficiency percussive drilling in rock formations. By utilizing compressed air to drive a reciprocating piston, it generates powerful impact energy directly to the drill bit. This tool is widely recognized in mining, quarrying, and construction industries for its economy and formidable drilling capacity.

Key Advantages:

Maximum energy delivery to bit
High penetration rates (15% to 30% faster)
Low air consumption inner structure
High-quality alloy steel materials
Simple, reliable, and easy maintenance
Easy bit separation with multihead thread

⚙️Technical Specifications

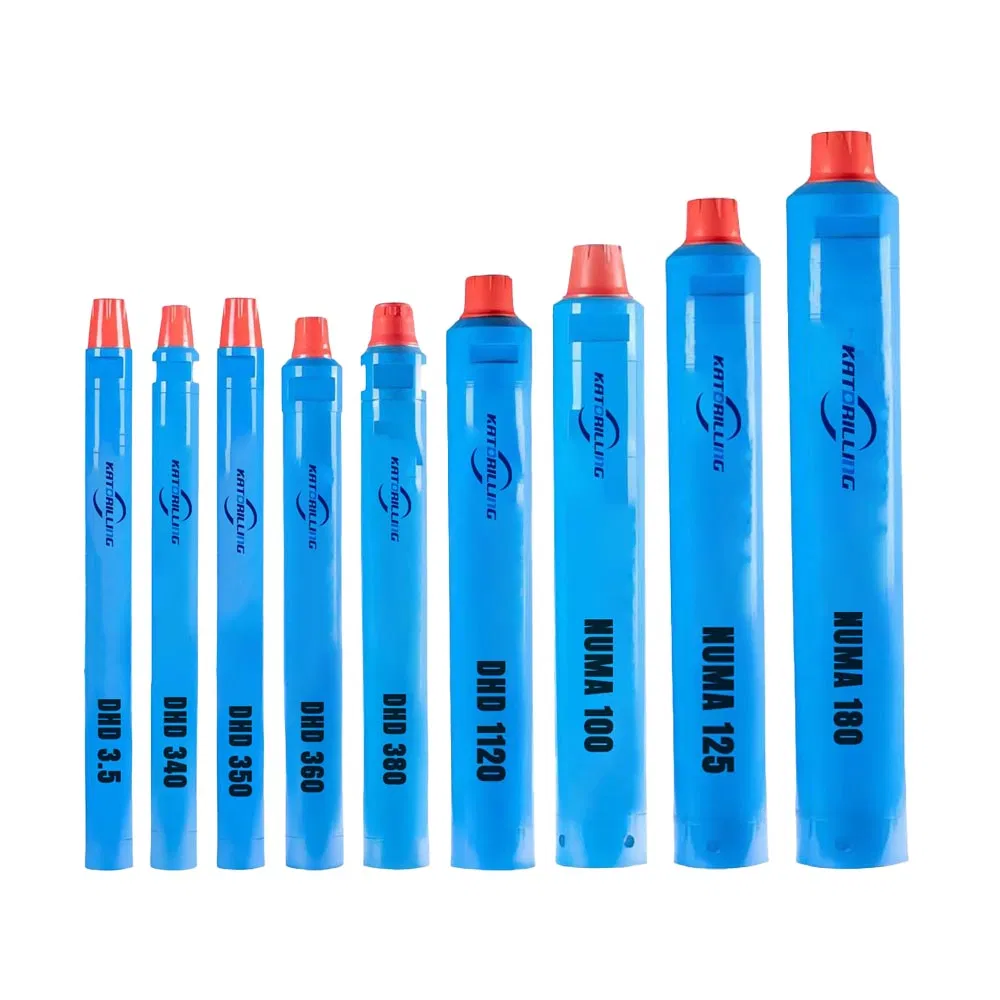

Type	Model	Length (mm)	Weight (kg)	Ext. Dia (mm)	Hole Range (mm)
3.5 inch	DHD3.5	930	25	Φ82	Φ90-110
4 inch	DHD340	1030	39	Φ99	Φ110-135
5 inch	DHD350	1214	76.5	Φ125	Φ135-155
6 inch	DHD360	1248	100	Φ142	Φ155-190
8 inch	SD8	1463	192	Φ180	Φ195-254
10 inch	SD10	1502	290	Φ226	Φ254-311

DHD360 Specific Parameters:

Top Sub ThreadAPI 6 5/8" REG PIN

Bit Diameter295-400(mm)

Air Consumption50-70(M3/min)

Bit ShankDHD1120

🖼️Detailed Photos

📦Packaging & Shipping

❓Frequently Asked Questions

1. What methods of payment do you accept?

We accept T/T (Telegraphic Transfer), Western Union, or L/C at sight.

2. How long is the handling time for an order?

Handling time depends on the quantity. Normally it takes 25 days for production. If we have the requested size in stock, it only takes 2 to 3 days.

3. What are the available shipping ways?

For sample orders, we suggest express couriers like DHL, UPS, TNT, or FEDEX, or by air. For bulk orders, we suggest shipping by air or sea.

4. How is quality control managed?

We have an experienced QC team. Every order undergoes strict inspection and testing before being shipped out.

5. What kind of after-sales service is provided?

Our sales team responds to questions within 24 hours. Technical support is available at any time, and free replacements are provided if failure is confirmed to be caused by product quality.

6. Can the hammer bits be interchanged?

Yes, our HD series DTH hammers are designed to be interchangeable with DTH bits and drill pipes, ensuring flexibility for various drilling rigs.
