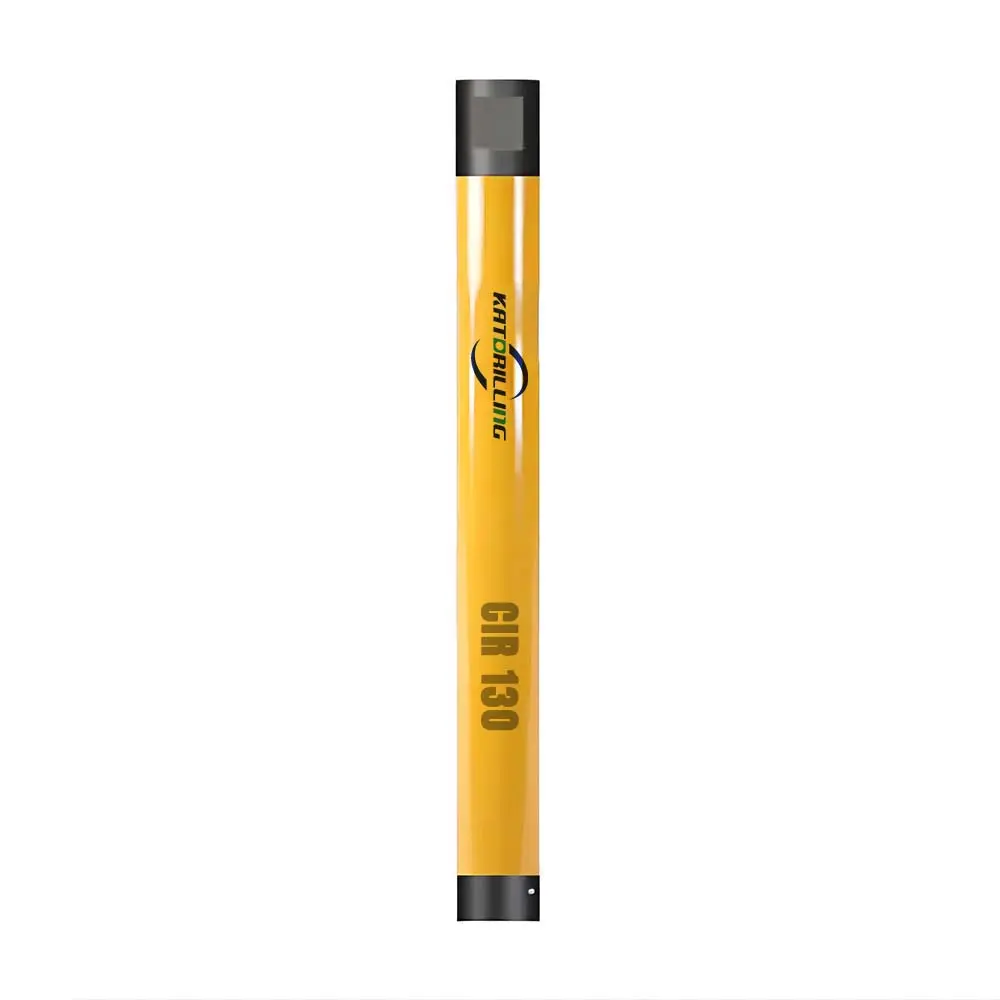

CIR130 Low Air Pressure DTH Hammer

CIR SERIESÂ

CIR50/CIR60/CIR65/CIR76/CIR90/CIR110/CIR130/CIR150/CIR170

Send Inquiry

Product Description

CIR130 Steel Valve Design Patent Quarry Mining Low Air Pressure DTH Hammer

The CIR series represents a specialized line of steel valve type hammers engineered for superior performance even at low operating air pressures. These tools are designed to maximize energy output while significantly reducing maintenance and service requirements.

Design Highlights

⚙️

Optimized Performance

Engineered for high efficiency at low operating air pressures.

🛡️

Maximum Longevity

All critical internal components are heat treated under strict control.

⚡

Energy Output

Maximizes impact energy while reducing service needs.

Exclusive Features

💡

Efficiency Boost: The patented steel valve design increases work efficiency by at least 20% compared to standard models.

Applications

This series is widely utilized across various demanding industries for drilling and blasting tasks:

Mining & Quarrying
Road Construction
Water Well Drilling

Slope Protection
Anchoring Projects
Blasting Work

Technical Specifications

Parameter	Value
Hammer Length (without bit)	882 (mm)
Top Sub Thread	API 2 3/8" REG BOX
Outside Diameter	112 (mm)
Weight	48.5 (KG)
Bit Diameter	130-175 (mm)
Working Pressure	5-10 (Bar)
Air Consumption	7-12 (M³/min)
Bit Shank	CIR110 / CIR130

Available Hammer Series

High Pressure Series Medium Pressure Series Low Pressure Series Reverse Circulation Series

Component Structure

No.	Item Description	Part Reference
1	Top Sub	130-01
2	Cap	130-02
3	Check Valve	130-03
4	Spring	130-04
5	Shim	130-05
6	Rubber ring	130-06
7	Valve cap	130-07
8	Valve	130-08
9	Air Distributor	130-09
10	Inner Cylinder	130-10
11	Piston	130-11
12	Guide Sleeve	130-12
13	Driver Sub	130-13
14	Outer Sleeve	130-14

Frequently Asked Questions

What are the main advantages of the steel valve design in the CIR130 hammer?

The patented steel valve design significantly enhances the hammer's efficiency by at least 20%. It is specifically engineered to provide high performance even when operating at lower air pressures.

What is the recommended air pressure for this DTH hammer?

The CIR130 is a low air pressure series hammer designed to operate optimally within a working pressure range of 5 to 10 Bar.

Which drill bit shanks are compatible with the CIR130?

The CIR130 hammer is designed to be compatible with CIR110 and CIR130 bit shanks, supporting bit diameters ranging from 130mm to 175mm.

How is the durability of the internal components ensured?

All critical internal components undergo strict heat treatment processes. This maximizes tool longevity and ensures the hammer can withstand harsh mining and quarrying conditions.

Is the wear sleeve reversible in the CIR series?

No, the wear sleeve in the CIR series hammers is not reversible. It is designed for specific directional use to maintain peak performance.

In which industries is the CIR130 hammer most commonly used?

It is widely used in quarrying, mining, water well drilling, road construction for blasting work, and various civil engineering tasks like slope protection and anchoring.
