Product Details

Customization:	Available
After-sales Service:	Repair or Replacement
Warranty:	6 Months

Send Inquiry

Product Description

Basic Information

Model NO.

Taper Rod

Certification

ISO 9001:2000, ISO 9001:2008

Standard

Surface Treatment

Spray-Paint

Manufacturing

Forging

Material

Carbon Steel

Degree

7 / 11 / 12

Machine Type

Drilling Tools

Color

Red, Black, Yellow, White

Material Quality

95crmo, 55simnmo, 40simncrnimo, 23crni3mo, D6a

HS Code

82071990

Capacity

500,000 PCS/Month

📦

Packaging & Delivery

Package Size

30.00cm * 30.00cm * 30.00cm

Gross Weight

5.000kg

Package Type

Wooden Case or Bundles

Product Description

Taper drill rod is used for rock drilling, blasting holes and other drilling works in the quarries, coal mines, traffic and other contractions. It works with taper drill bits and has different length for various applications. Our taper drill rods come in a variety of taper angles. Generally, the light duty rock drill usually use 7 taper or smaller taper angle, while the heavy duty rock drill mainly use 11 or 12 taper angle.

Core Specifications:

Steel grade: 95CrMo (equivalent to SANDBAR 20 or C253, Z708, Sanbar 23, 55SiMnMo)
Shank size: Hex. 22mm × 108mm, Hex. 22mm × 159mm, Hex. 22mm × 80mm, Hex. 25mm × 108mm, Hex. 25mm × 159mm
Taper angles: 4°46', 6°, 7°, 11°, 12° etc.
Length Range: 0.4m - 10m
Shank hex: 22 mm (7/8") x 108 mm (4 1/4") or 159 mm (6 1/4")
Flushing hole diameter: 6.7 mm

Rod Cross Section	Length		Weight approx.
Section	mm	foot/inch	kg
4°46' Taper Angle
22H	800	2'7½"	2.8
22H	1600	5'3"	5.3
22H	2400	7'10½"	7.7
22H	4000	13'1½"	12.7
7° Taper Angle
22H	400	1'3¾"	1.6
22H	1830	6'	6.0
22H	3200	10'6"	10.1
22H	8000	26'3"	24.9
11° Taper Angle
22H	800	2'7½"	2.8
22H	1525	5'	5.0
22H	3655	11'11⅝"	11.6
22H	8000	26'3"	24.9
12° Taper Angle
22H	610	2'	2.2
22H	1830	6'	6.0
22H	3965	13'	12.5
22H	8000	26'3"	24.9

Frequently Asked Questions

What are the primary applications for taper drill rods?

Taper drill rods are extensively used in rock drilling, creating blasting holes, and other drilling tasks in quarries, coal mines, and various construction or infrastructure projects.

How do I select the correct taper angle for my equipment?

The choice depends on the drilling intensity. Light-duty rock drills typically use a 7° taper or smaller. For heavy-duty applications, 11° and 12° taper angles are the standard choice. It is crucial that the rod and bit share the same degree.

What steel grades are used in manufacturing these rods?

We utilize high-quality steel grades including 95CrMo (equivalent to SANDBAR 20/C253), 55SiMnMo, and 23CrNi3Mo to ensure durability and performance in harsh conditions.

What shank configurations are available?

Our rods come in standard hexagonal configurations, primarily Hex. 22mm and Hex. 25mm, with various shank lengths such as 108mm and 159mm to fit different hand-held pneumatic drills.

What is the range of lengths you can provide?

We offer a wide range of lengths starting from 0.4 meters up to 10 meters, allowing for versatility in different drilling depths and environments.

How are the products protected during shipping?

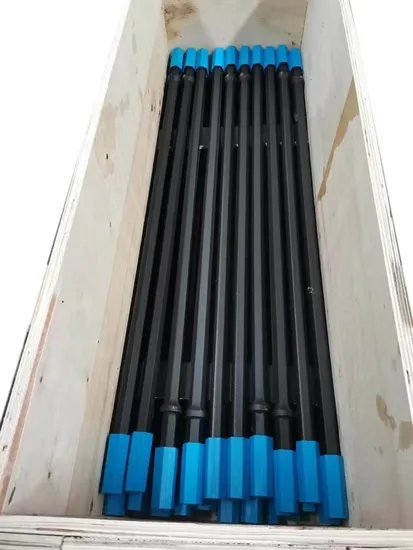

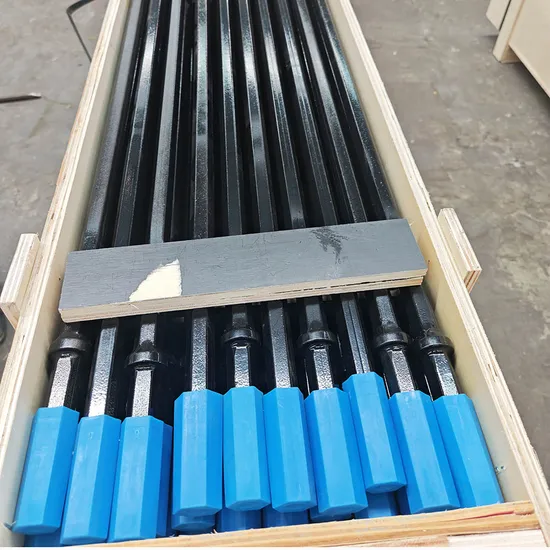

To ensure the products arrive in perfect condition, we package the taper drill rods in sturdy wooden cases or secure bundles, depending on the order size and transport requirements.
