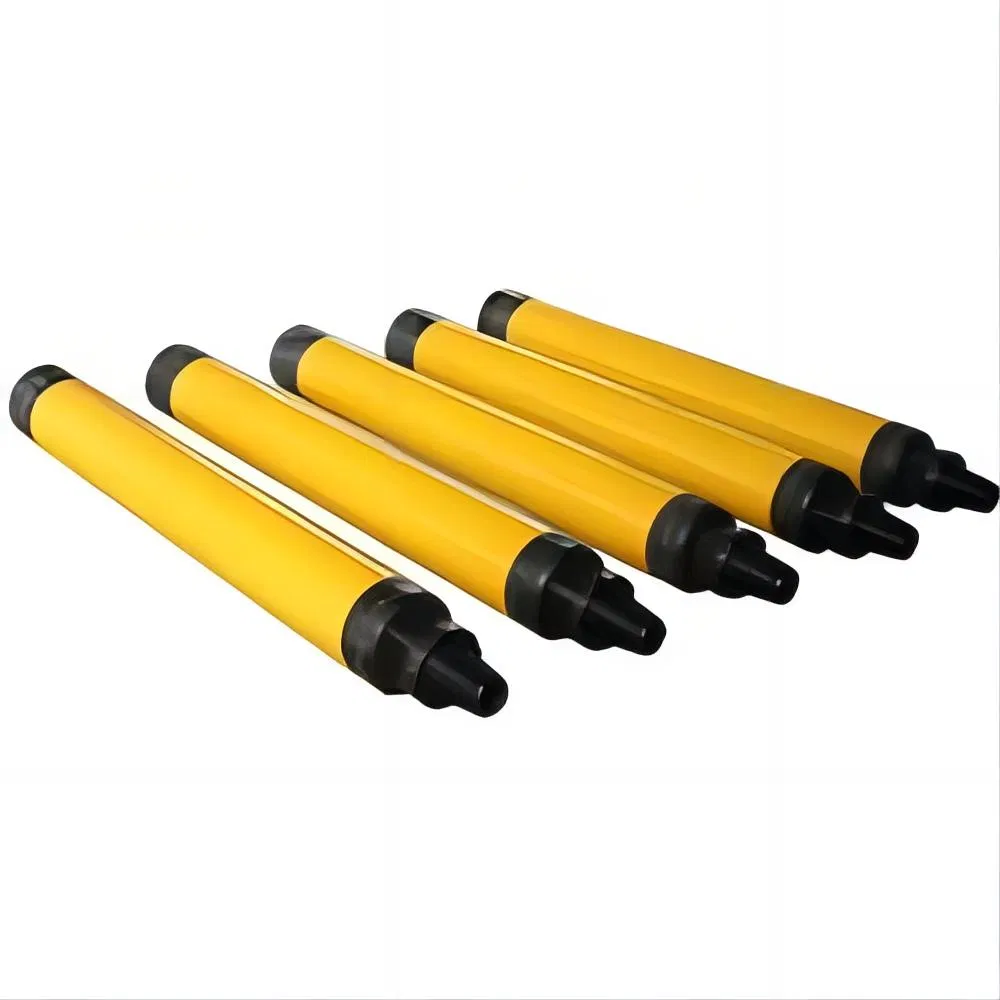

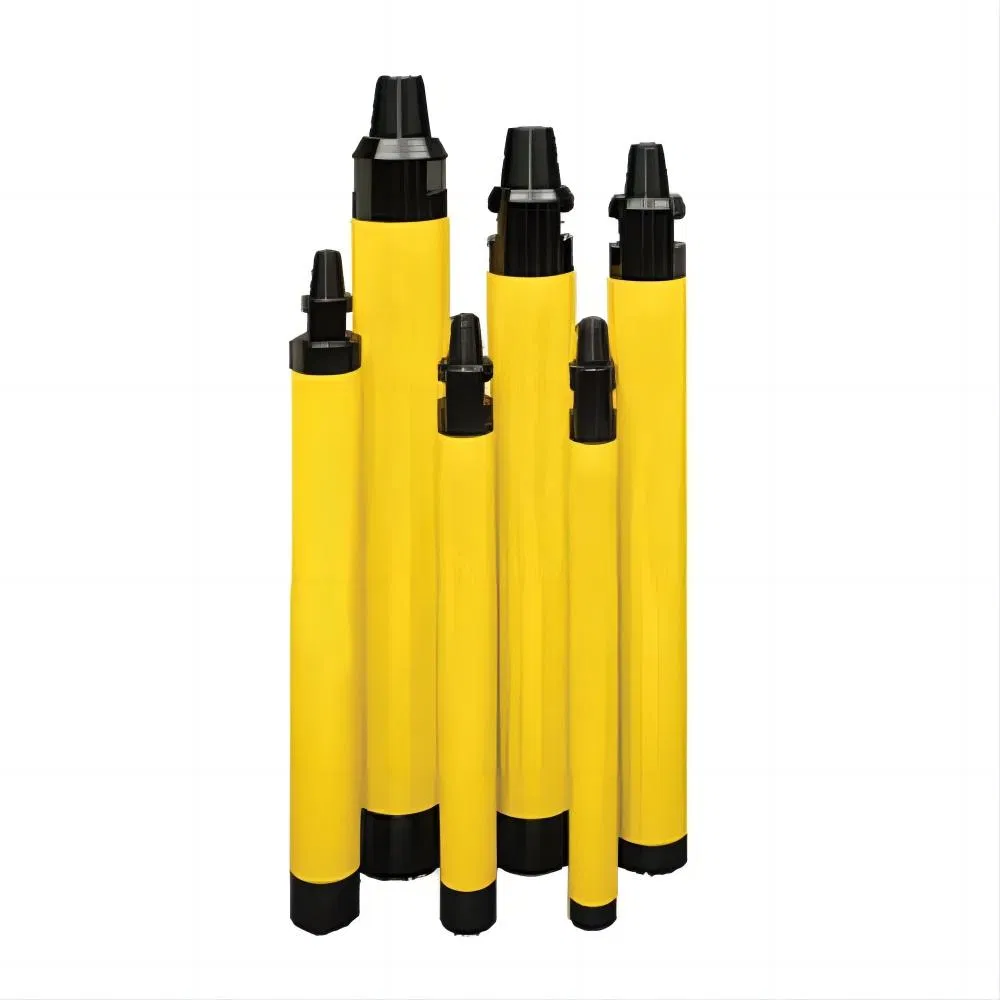

High air pressure DTH hammer is a specialized down-the-hole tool designed for high-efficiency percussive drilling in rock formations. Characterized by its robust build and high-pressure capabilities, it is ideal for mining, quarrying, and construction projects. The mechanism utilizes compressed air to drive a reciprocating piston, delivering intense impact energy to the drill bit for faster penetration.
| Type | Model | Length (mm) | Weight (kg) | External Dia. (mm) | Hole Range (mm) |
|---|---|---|---|---|---|
| 3.5 inch | DHD3.5 | 930 | 25 | Φ82 | Φ90-110 |
| 4 inch | DHD340 | 1030 | 39 | Φ99 | Φ110-135 |
| 5 inch | DHD350 | 1214 | 76.5 | Φ125 | Φ135-155 |
| 6 inch | DHD360 | 1248 | 100 | Φ142 | Φ155-190 |
| 8 inch | D85 | 1492 | 188 | Φ180 | Φ195-254 |
| Hammer Length (without bit) | 698 (mm) |
| Top Sub Thread | RD40 BOX |
| Outside Diameter | 56 (mm) |
| Bit Diameter Range | 64-76 (mm) |
| Air Consumption | 3 (M3/min) |

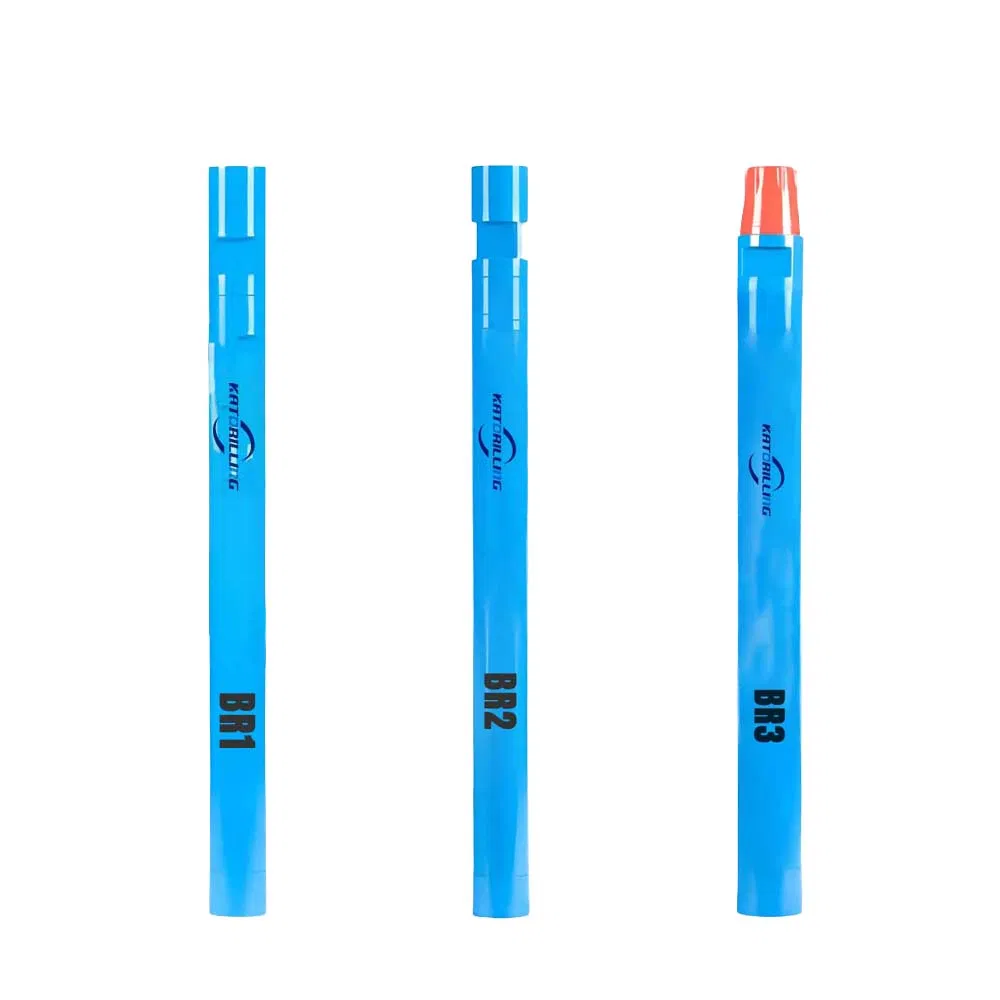

| Bit Shank | BR1 |
