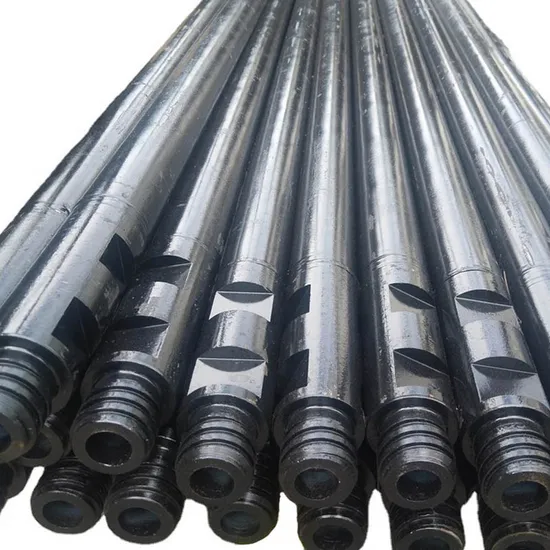

High-Quality 76mm Drill Rods DTH Drill Pipe for DTH Drilling Manufacturers, Factory

1 / 5

High-Quality 76mm Drill Rods DTH Drill Pipe for DTH Drilling Manufacturers, Factory

Product Details

Customization:	Available
After-sales Service:	Repair or Replacement
Warranty:	6 Months

Send Inquiry

Product Description

Basic Specifications

Model NO.DTH Drill Pipe

CertificationCE, ISO 9001:2000, ISO 9001:2008

StandardAISI, GB

Surface TreatmentSpray-Paint

ManufacturingStamping

MaterialCarbon Steel

Machine TypeDrilling Tools

ColorRed, Black, Yellow, White

Diameter76mm/89mm/102mm/114mm/127mm/140mm

Shank AdapterCIR/DHD/M/Ql/SD

Transport PackageWooden Case

Specification1.5m-16m

OriginChina

Production Capacity500,000 PCS/Month

Product Overview

Drill pipe is hollow, thick-walled, steel piping used on drilling rigs to facilitate the drilling of a wellbore. It comes in a variety of sizes, strengths, and weights, typically ranging from 30 to 33 feet in length. The hollow design allows drilling fluid to be pumped through the pipe, down the hole, and back up the annulus.

Our drill pipes are designed to support their own weight for combined lengths that often exceed 1 mile into the Earth's crust. It is a critical component for exploring new drill sites.

Available Sizes:2 1/2'' to 10 3/4''

Length Range:1m - 6m

Thread Standards:API Reg, API IF, BECO 6'', BECO 8''

Wall Thickness:4mm - 16mm

Detailed Photos

Technical Parameters

Diameter (mm)	Wall Thickness (mm)	Length (mm)	Thread (Male)	Thread (Female)	Spanner Flat	Tool Joint Length (Pin)	Weight (kg)
76	4	3000	API 2 3/8" Reg	API 2 3/8" Reg	Y	107	24
76	4	3000	API 2 3/8" Reg	API 2 3/8" Reg	N	190	31
76	6.3	3048	API 2 3/8" Reg	API 2 3/8" Reg	Y	190	39
76	6.3	4000	API 2 3/8" Reg	API 2 3/8" Reg	N	190	46
79	6.3	1524	CUBEX #21	CUBEX #21	Y	110	21
89	4	3000	API 2 3/8" Reg	API 2 3/8" Reg	Y	107	30

Frequently Asked Questions

What materials are the DTH drill pipes made from?

Our drill pipes are manufactured using high-quality Carbon Steel, ensuring durability and high strength for demanding drilling environments.

What is the standard length of your drill rods?

Standard lengths range from 1 meter to 6 meters, but they can be customized up to 16 meters depending on the specific drilling rig requirements.

What thread types do you provide?

We offer various API standard threads, including 2 3/8" API Reg, 2 7/8" API Reg, 3 1/2" API Reg, as well as BECO threads for specialized applications.

How are the drill pipes protected during shipping?

All pipes are packed in sturdy wooden cases to prevent damage during transport and are treated with spray-paint to resist corrosion.

Do your products meet international quality standards?

Yes, our manufacturing processes are certified under CE and ISO 9001:2000/2008 standards, ensuring consistent quality and performance.
