High-Quality 7 Degree Shank 108 159 Hex 22 25 Tapered Drill Rod Best Price for Drilling Equipment Manufacturers, Quotes

1 / 5

High-Quality 7 Degree Shank 108 159 Hex 22 25 Tapered Drill Rod Best Price for Drilling Equipment Manufacturers, Quotes

Product Details

Customization:	Available
After-sales Service:	Repair or Replacement
Warranty:	6 Months

Send Inquiry

Product Description

📋

Basic Information

Certification

ISO 9001:2000, ISO 9001:2008

Standard

Surface Treatment

Spray-Paint

Manufacturing Process

Forging

Material

Carbon Steel

Degree

7/11/12

Machine Type

Drilling Tools

Color

Red, Black, Yellow, White

Material Quality

95crmo, 55simnmo, 40simncrnimo, 23crni3mo, D6a

Origin

China

HS Code

82071990

Production Capacity

500,000 PCS/Month

📦

Packaging & Delivery

Package Size

30.00cm * 30.00cm * 30.00cm

Gross Weight

5.000kg

Transport Package

Wooden Case or Bundles

🛠️

Product Description

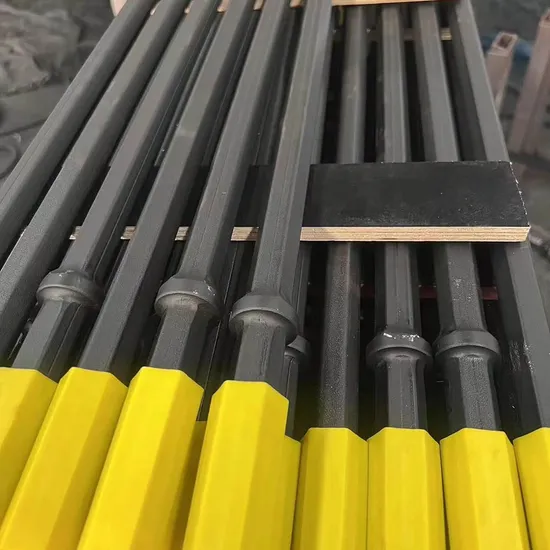

Taper drill rod is essential for rock drilling, creating blasting holes, and various drilling operations in quarries, coal mines, and infrastructure projects. Designed to work seamlessly with taper drill bits, these rods are available in multiple lengths to suit diverse applications.

Key Technical Features:

Steel Grade: 95CrMo (equivalent to SANDBAR 20, C253, Z708, sanbar 23) or 55SiMnMo.
Shank Sizes: Hex 22mm x 108mm, Hex 22mm x 159mm, Hex 22mm x 80mm, Hex 25mm x 108mm, Hex 25mm x 159mm.
Taper Angles: 4°46', 6°, 7°, 11°, 12°, etc.
Length Options: 0.4m - 10m.

The light-duty rock drills typically utilize a 7° taper or smaller, while heavy-duty applications require 11° or 12° taper angles. It is critical that the taper drill rods and bits match the same tapered degree for optimal performance and safety.

Rod Cross Section	Length		Weight Approx.
SECTION	mm	Foot/Inch	kg
4°46' Taper Angle
22H	800	2'7½"	2.8
22H	1600	5'3"	5.3
22H	2000	6'6¾"	6.5
22H	3200	10'6"	10.2
7° Taper Angle
22H	400	1'3¾"	1.6
22H	800	2'7½"	2.8
22H	1600	5'3"	5.2
22H	3050	10'	9.7
22H	4800	15'9"	15.1
11° Taper Angle
22H	800	2'7½"	2.8
22H	1830	6'	6.0
22H	3200	10'6"	10.2
22H	8000	26'3"	24.9
12° Taper Angle
22H	610	2'	2.2
22H	1525	5'	5.0
22H	3655	11'11"	11.6
22H	8000	26'3"	24.9

❓

Frequently Asked Questions

1. What are taper drill rods used for?

Taper drill rods are primarily used for rock drilling and blasting holes in quarries, coal mines, traffic construction, and other mining or building contractions.

2. How do I choose the correct taper angle?

Generally, light-duty rock drills use a 7° or smaller taper angle. Heavy-duty rock drills mainly utilize 11° or 12° taper angles. The rod and bit must always share the same degree.

3. What steel grades are available for these rods?

We provide rods in 95CrMo (comparable to SANDBAR 20/C253) and 55SiMnMo, ensuring high durability and performance in tough drilling conditions.

4. What are the standard shank configurations?

Common shank sizes include Hex 22mm x 108mm and Hex 25mm x 108mm, but we also offer lengths of 159mm and 80mm to meet different pneumatic drilling needs.

5. Can the length of the rod be customized?

Yes, we provide tapered rods in a full range of lengths, typically ranging from 0.4 meters up to 10 meters.

6. How is the product packaged for shipping?

To ensure safe delivery, drill rods are usually packed in sturdy wooden cases or secured in bundles, depending on the length and quantity.
