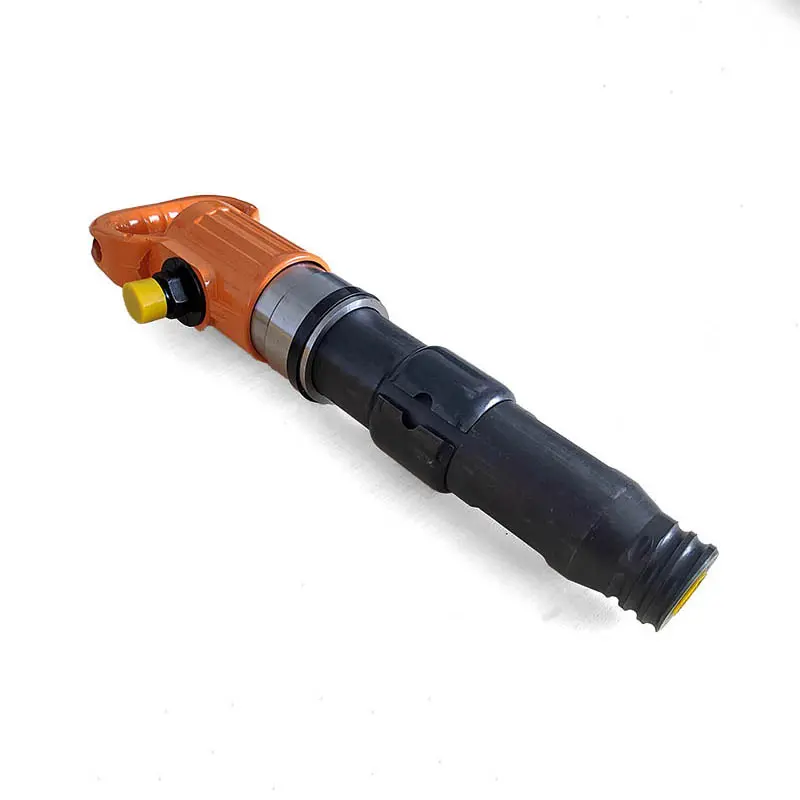

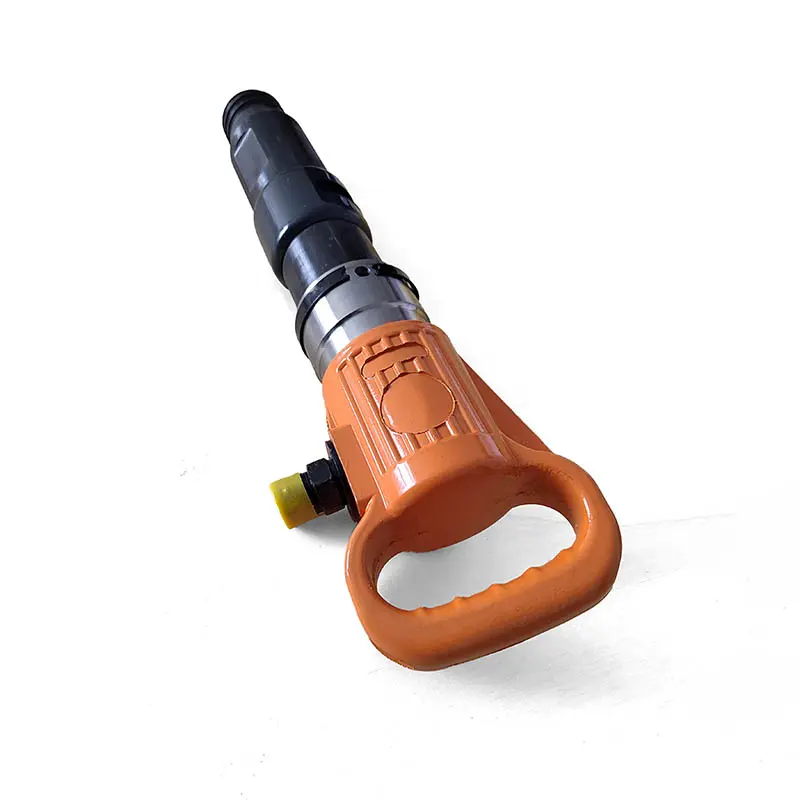

Compared with other similar tools, the Air Pick (Pneumatic Pick) is designed to be lighter, more flexible, and provides highly convenient operation. It is perfectly suited for all-around work environments, especially in narrow spaces, upper-reaching tasks, or climbing directions.
One of its key features is the ability to stop working automatically once the solid object is broken. This tool is widely utilized in coal mining, soft rock excavation, digging pits for post brackets, slot digging, breaking concrete, and dealing with frozen earth in construction, installation engineering, and casting industries.
Main Characteristics
1
Strict material control that meets international requested standards.
2
Imported bearing parts and high wear-resisting precision castings to significantly extend product life.
3
Advanced pneumatic instrument technology combined with mature international standards.
4
Hand-held pneumatic design using compressed air to drive reciprocating piston movement for constant impact.
Pneumatic Pick Specifications
| Type |
G7 |
G10 |
G11 |
G15 |
| Weight |
7.2 (Kg) |
10.9 (Kg) |
11.5 (Kg) |
12 (Kg) |
| Length |
570 (mm) |
575 (mm) |
575 (mm) |
580 (mm) |
| Cylinder Dia |
35 (mm) |
38 (mm) |
38 (mm) |
42 (mm) |
| Rammar Stroke |
120 (mm) |
155 (mm) |
155 (mm) |
1.12 (Kg) |
| Rammar Weight |
0.8 (Kg) |
0.9 (Kg) |
0.9 (Kg) |
0.9 (Kg) |
| Working Pressure |
0.4-0.5 (Mpa) |
0.4-0.5 (Mpa) |
0.6-0.7 (Mpa) |
0.6-0.7 (Mpa) |
| Impact Energy |
≥43 (J) |
≥43 (J) |
≥43 (J) |
≥55 (J) |
| Impact Frequency |
≥18 (Hz) |
≥18 (Hz) |
≥17 (Hz) |
≥18 (Hz) |
| Air Consumption |
≤20 (L/s) |
≤20 (L/s) |
≤26 (L/s) |
≤26 (L/s) |
| Air Pipe Inner Dia |
16 (mm) |
16 (mm) |
16 (mm) |
16 (mm) |
Frequently Asked Questions
What are the primary applications of the Air Pick?
The Air Pick is widely used in coal mining, soft rock excavation, breaking concrete, digging slots, and construction engineering involving frozen earth or casting industries.
Is the Pneumatic Pick suitable for confined spaces?
Yes, its lightweight and flexible design makes it ideal for operating in narrow spaces, upper directions, or climbing environments.
How does the automatic stop feature work?
The tool is designed to automatically stop working once the solid object it is impacting has been broken, ensuring safety and efficiency.
What ensures the long lifespan of this tool?
We use imported bearing parts and high wear-resisting precision castings, adhering strictly to international quality standards for all materials used.
What is the required air pressure for operation?
Depending on the model (G7 to G15), the working pressure typically ranges from 0.4 Mpa to 0.7 Mpa.
What power source does the Air Pick use?
It is a hand-held pneumatic tool that utilizes compressed air to drive a reciprocating piston for high-impact performance.
