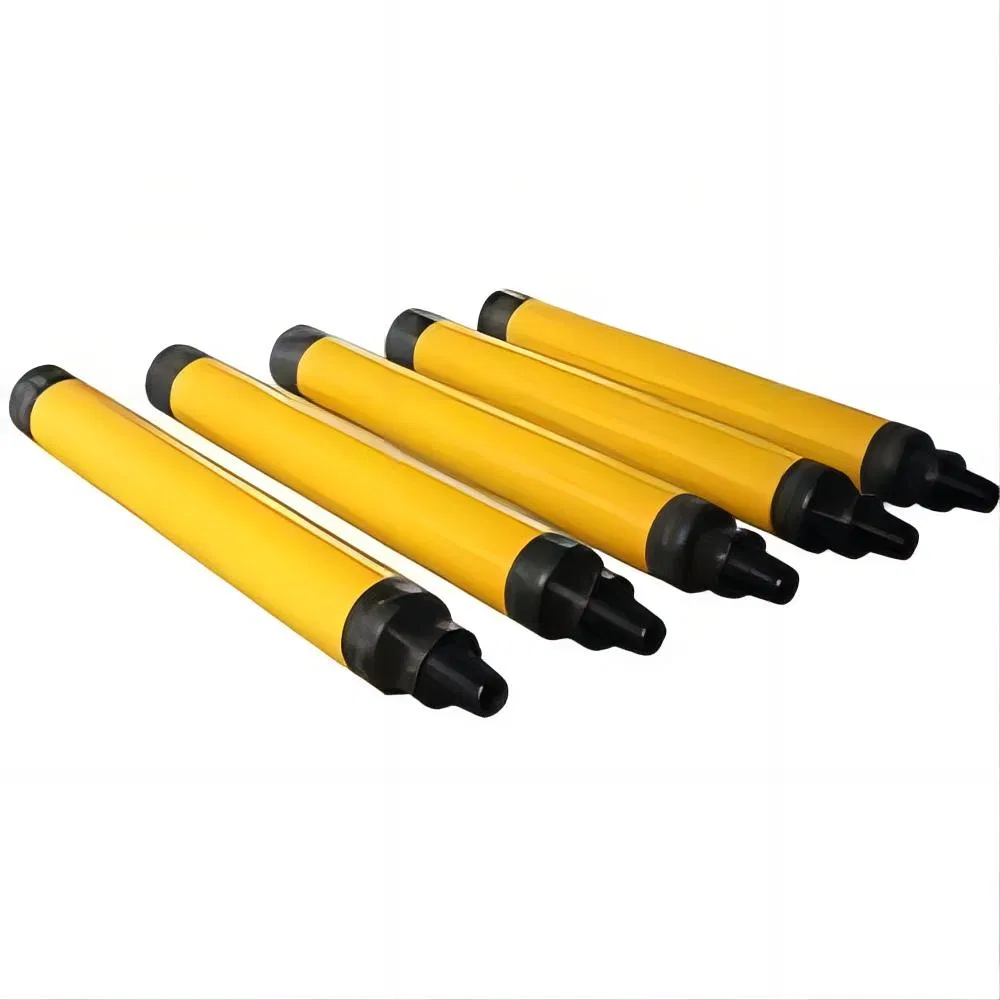

High-Quality DTH Drill Tools DHD350 Hammer with Foot Valve Factory, Quotes

1 / 5

High-Quality DTH Drill Tools DHD350 Hammer with Foot Valve Factory, Quotes

Product Details

Customization:	Available
After-sales Service:	Repair or Replacement
Warranty:	6 Months

Send Inquiry

Product Description

ℹBasic Info.

Model NO.

DHD350 Hammer

Certification

CE, ISO 9001:2000, ISO 9001:2008

Standard

AISI, GB

Surface Treatment

Spray-Paint

Manufacturing Process

Stamping

Material

Carbon Steel

Machine Type

Drilling Tools

Color

Red, Black, Yellow, White

Shank Adapter

CIR/DHD/M/Ql/SD

Production Capacity

500000PCS/Month

HS Code

82071990

Specification

DHD350

📦Packaging & Delivery

Package Size

30.00cm * 30.00cm * 30.00cm

Package Gross Weight

5.000kg

Transport Package

Wooden Case

📝Product Description

Due to economy and powerful drilling capacity, the down the hole hammer has become an advanced drilling tool for the drilling and mining industries. Down the hole hammers and drill bits are designed together to work in perfect unison, providing high penetration rates, long service life, and low costs.

Maximum Energy Transfer: Fast drilling speed and low air consumption due to the special inner structure designed according to the latest rock drilling theory.
High Durability: Smooth performance and long service life thanks to high-quality alloy steel materials and advanced processing technology.
Easy Maintenance: Low problem rate and simple assembly/disassembly due to the reliable inner structure.
Easy Bit Removal: Multi-head thread connecting chuck and cylinder makes it easy to depart the bit from the hammer.
Compatibility: Fully interchangeable with DTH bits and drill pipes.

Applications:

High pressure drilling rigs
Water well drilling
Record breaking penetration
Bench drilling
Mining / Mineral Exploration

Civil Engineering Applications
Oil well drilling
Foot Valve not required in the bit
Maximizes efficiency
Penetrate 15% to 30% faster

📊Technical Parameters

Length (Less bit)	Weight	Outer Diameter	Connection Thread	Bit Shank	Hole Range
1209mm	78.5Kg	¢125mm	API2 3/8"REG	DHD350	¢135-¢155mm
Work Pressure		Recommended Rotation Speed		Air Consumption (1.0Mpa)	Air Consumption (1.8Mpa)
1.0-2.5 Mpa		30-60 r/min		9m³/min	15m³/min

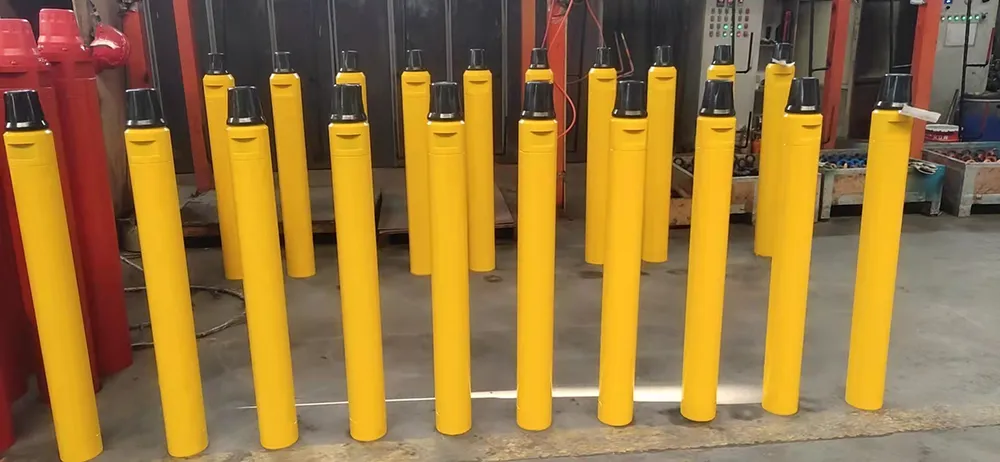

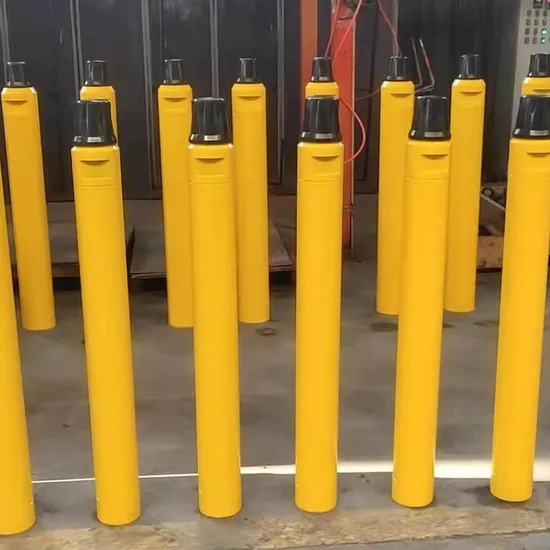

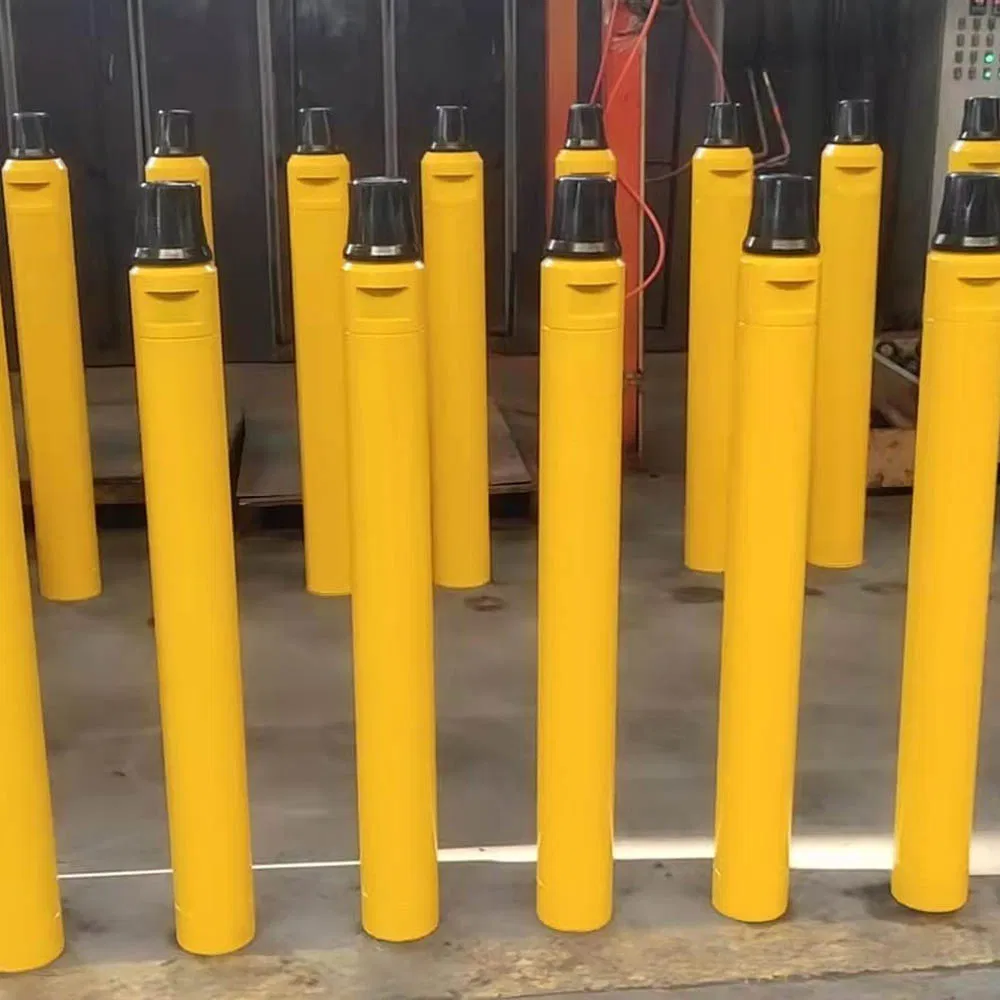

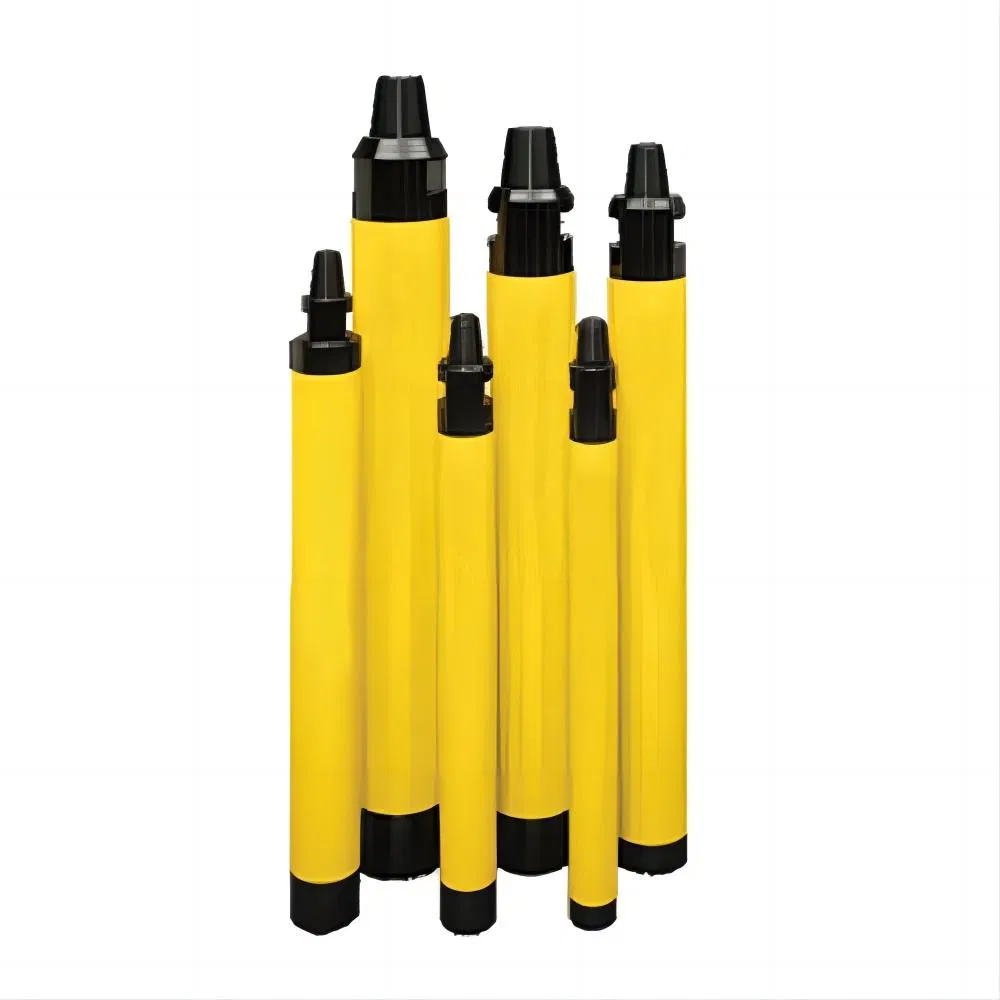

🖼Detailed Photos

🚛Packaging & Shipping

❓FAQ

What payment methods do you accept?

We support several payment methods including T/T (Telegraphic Transfer), Western Union, and L/C at sight for your convenience.

What is the standard handling time for an order?

The handling time depends on the order quantity. Generally, production takes about 25 days. If the requested size is in stock, it can be shipped within 2 to 3 days.

How are the products shipped?

For sample orders, we recommend express couriers like DHL, UPS, TNT, or FEDEX, or air freight. For bulk orders, shipping by sea or air is suggested.

How do you ensure product quality?

Every order undergoes strict inspection and testing by our experienced Quality Control (QC) team before being shipped out to ensure it meets our high standards.

What after-sales services are provided?

Our team responds to all inquiries within 24 hours. We provide continuous technical support and offer free replacements if a failure is confirmed to be caused by product quality issues.

Can these DTH hammers be used for water well drilling?

Yes, the DHD350 series is highly suitable for water well drilling, as well as mining, bench drilling, and civil engineering applications.
