DTH Drilling Solutions

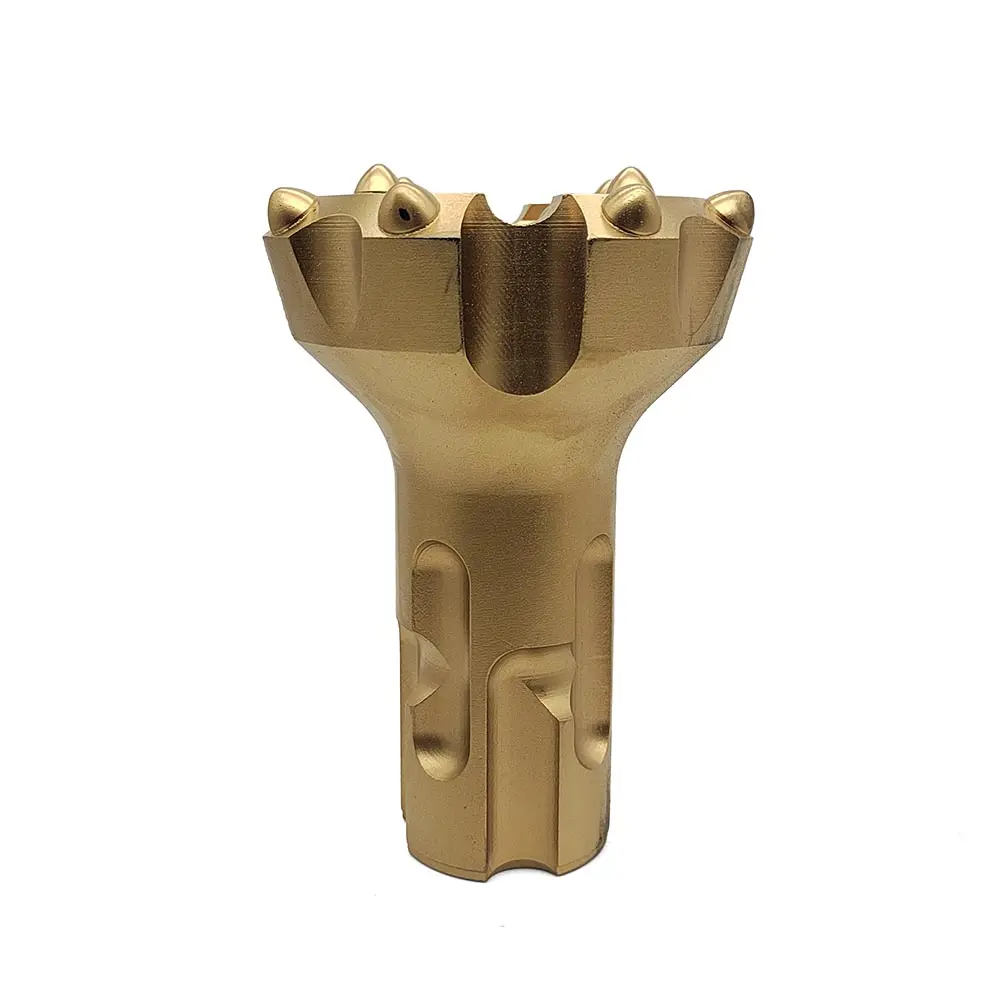

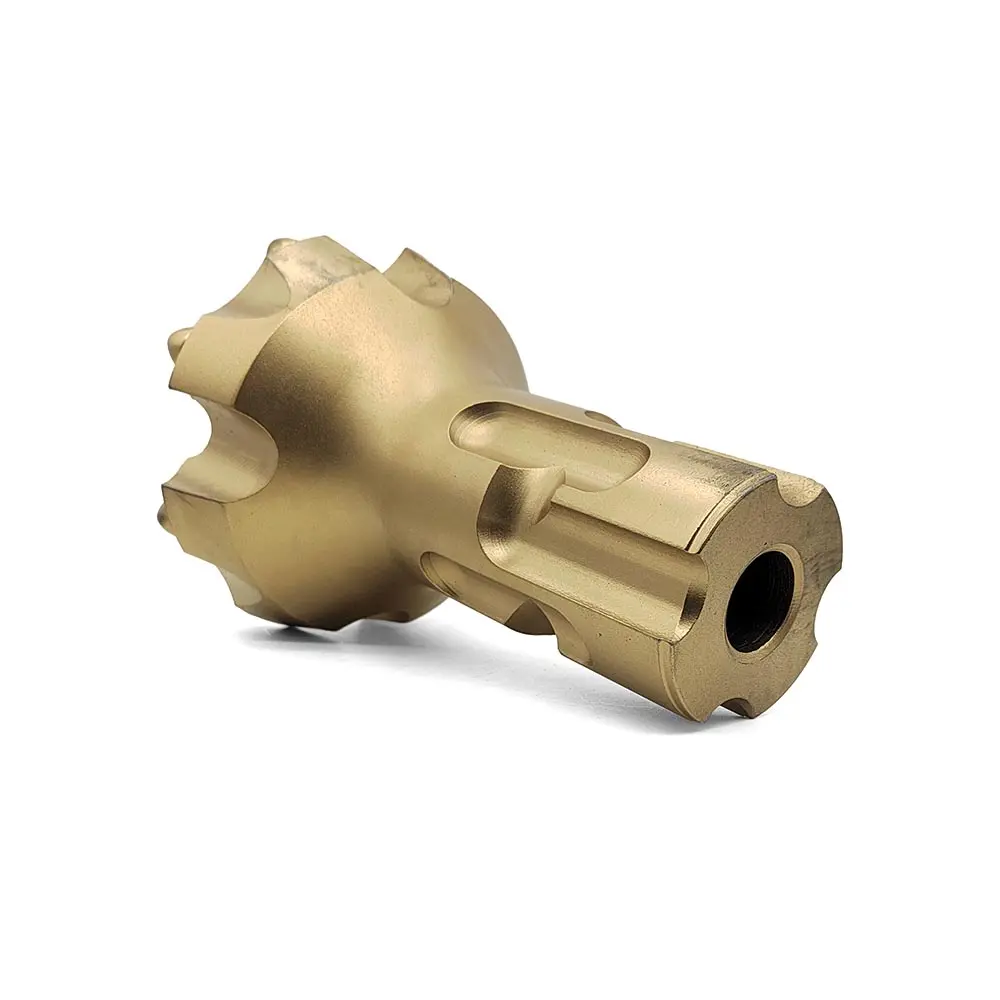

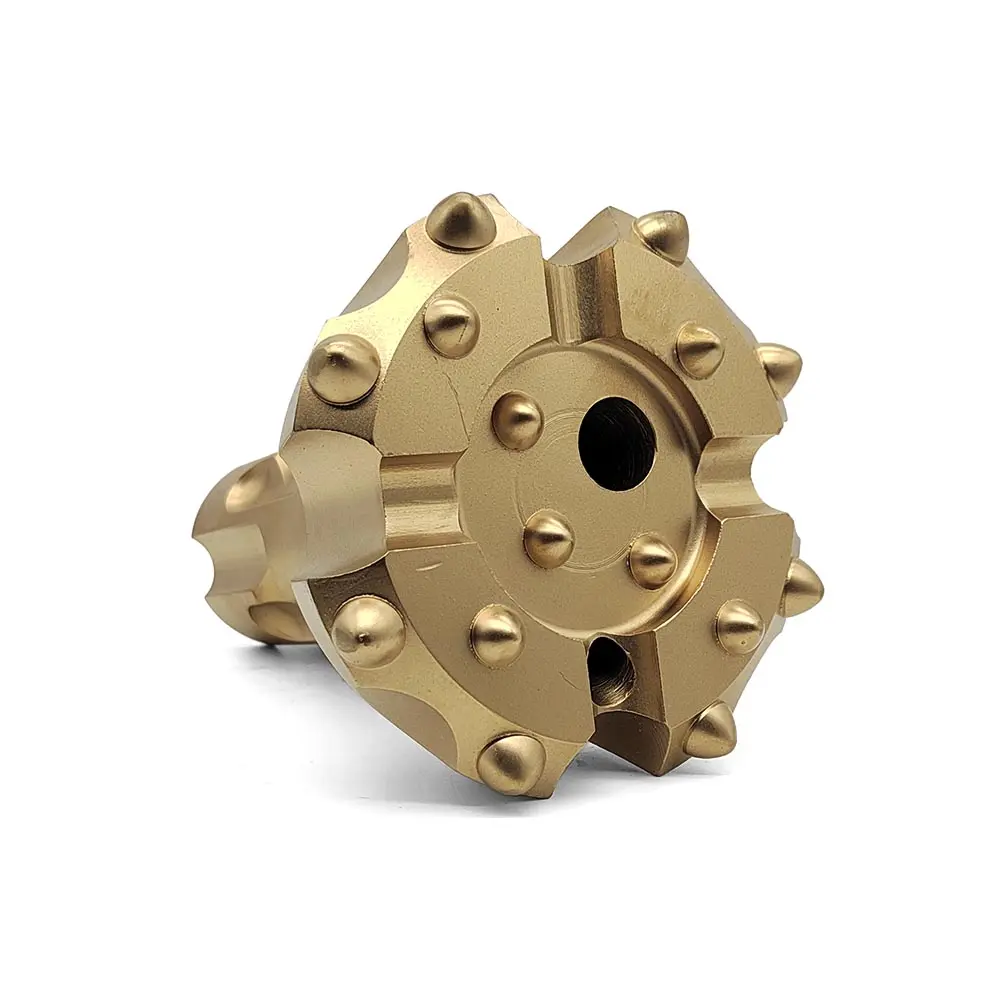

P110 and P130 Bayonet Russia Type DTH Drill Bits
🚀
Enhanced Durability: The DTH drill bits we produce are engineered for a significantly longer service life, ensuring maximum efficiency in demanding environments.

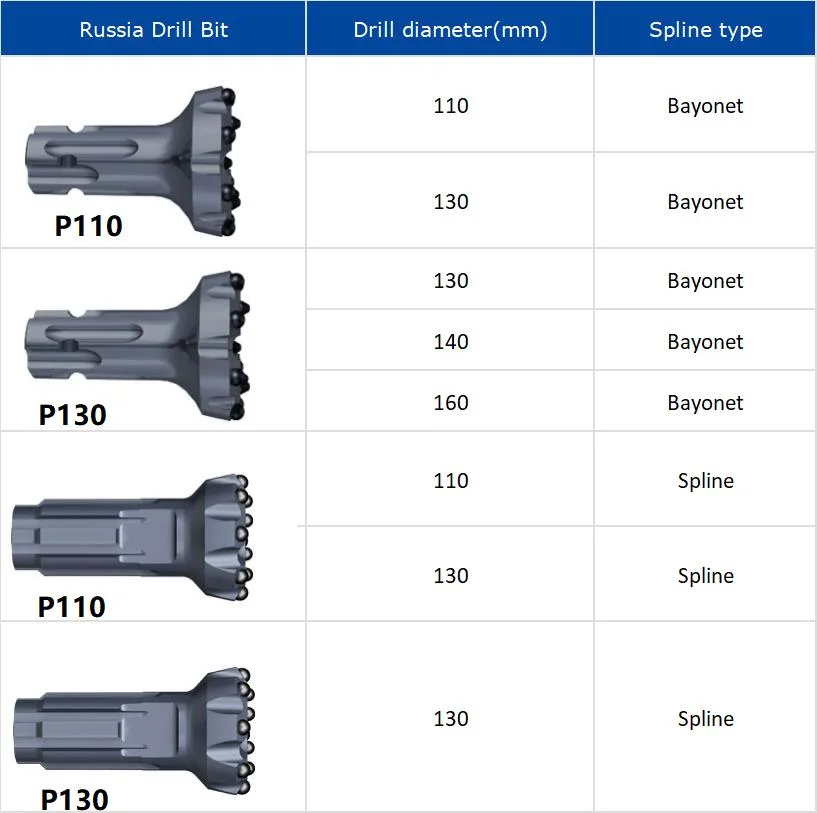

P-110 Specifications
Diameter: 105mm, 110mm
Connection: Bayonet and spline connection
Design: Drop center with spherical or semi-ballistic buttons.
Specialty: Includes buttons and chisel 4 blade bit options.
P130 Specifications
Diameter: 130mm, 140mm, 150mm, 160mm
130-140mm: Drop center with spherical buttons.
150-160mm: Flat face with spherical buttons.
🌍
Applications: Russia type P110 and P130 hammers are low air pressure systems with bayonet coupling. They are widely utilized in Russia, Belarus, Kazakhstan, and Ukraine for well drilling, quarrying, and rock drilling projects.
Frequently Asked Questions
What are the primary applications for P110 and P130 DTH bits?
These bits are specifically designed for low air pressure hammers and are widely used in water well drilling, quarrying, and various rock drilling projects across CIS regions.
In which regions are these Russia-type bits most commonly used?
They are extensively utilized in Russia, Belarus, Kazakhstan, and Ukraine due to their compatibility with local drilling equipment standards.
What connection types are available for the P110 series?
The P110 series supports both bayonet and spline connections to accommodate different hammer requirements.
What is the diameter range for the P130 DTH bits?
The P130 series covers diameters from 130mm up to 160mm, with different face designs (drop center or flat) depending on the size.
What button shapes are used on these drill bits?
Depending on the specific model and drilling conditions, we offer spherical buttons, semi-ballistic buttons, and chisel 4 blade configurations.
Why choose these DTH drill bits over standard options?
Our P110 and P130 bits are manufactured to higher durability standards, providing a longer service life and reducing the frequency of bit replacements.
