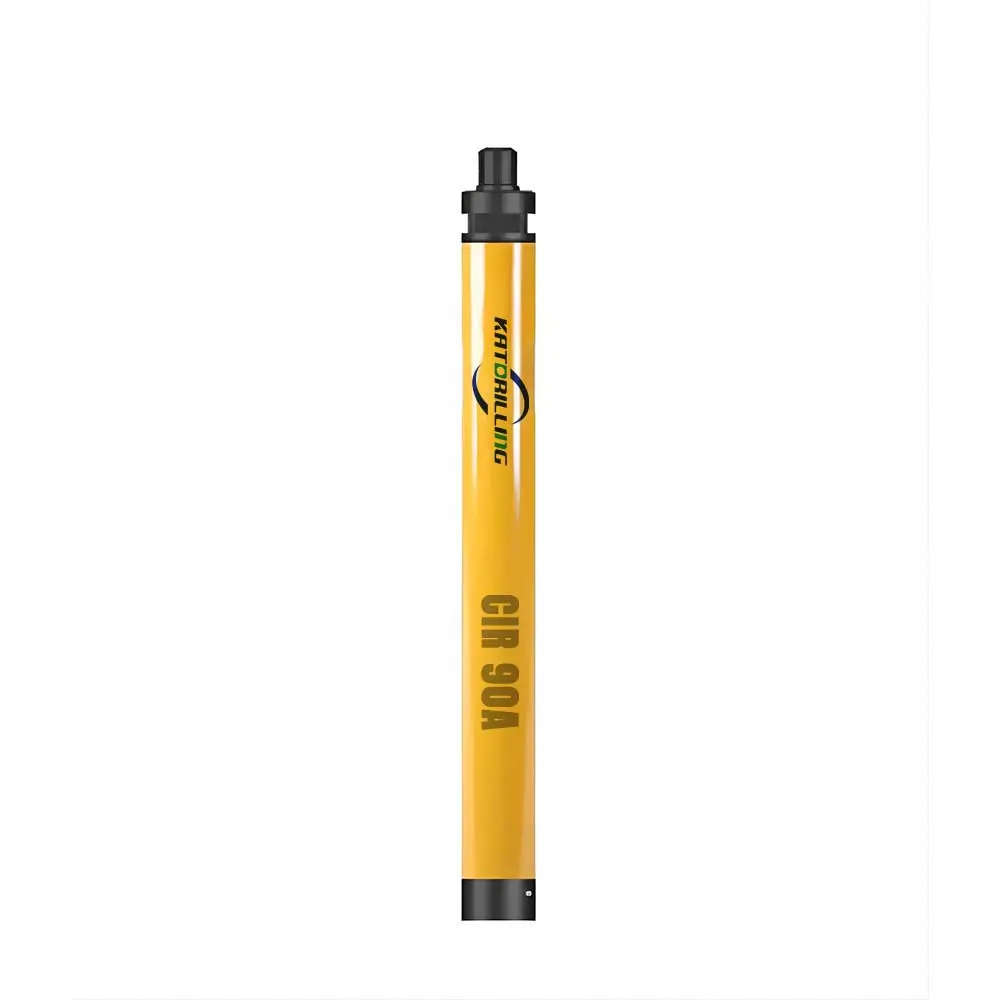

CIR90 Steel Valve Design Patent Quarry Mining Low Air Pressure DTH Hammer
CIR SERIES DTH Hammers Range:
CIR50 / CIR60 / CIR65 / CIR76 / CIR90 / CIR110 / CIR130 / CIR150 / CIR170
- CIR series features steel valve type hammers optimized for high performance at low operating air pressure.
- Engineered to maximize energy output while significantly reducing maintenance and service requirements.
- Features a specialized non-reversible wear sleeve design.
- All critical internal components undergo strict heat treatment control to ensure maximum tool longevity and durability.
The patented steel valve design significantly increases work efficiency by at least 20% compared to standard models.
Widely utilized in the following sectors for drilling and blasting operations:
- Mining and Quarrying
- Road Construction
- Water Well Drilling
- Slope Protection and Anchoring
High Pressure
Medium Pressure
Low Pressure
High Efficiency
Reverse Circulation
TECHNICAL SPECIFICATIONS
| Parameter |
Details |
| Hammer Length without bit | 796 (mm) |
| Top sub thread | F48x10PIN |
| Outside diameter | 80 (mm) |
| Weight | 22 (KG) |
| Bit diameter | 90-120 (mm) |
| Working Pressure | 5-10 (Bar) |
| Air consumption | 7-12 (M3/min) |
| Bit shank | CIR90 |
PARTS LIST & EXPLODED VIEW
| Item Description |
Part Number |
| 1. Top Sub | 90A-01 |
| 2. Cap | 90A-02 |
| 3. Check Valve | 90A-03 |
| 4. Spring | 90A-04 |
| 5. Shim | 90A-05 |
| 6. Rubber ring | 90A-06 |
| 7. Valve cap | 90A-07 |
| 8. Valve | 90A-08 |
| 9. Air Distributor | 90A-09 |
| 10. Inner Cylinder | 90A-10 |
| 11. Piston | 90A-11 |
| 12. Guide Sleeve | 90A-12 |
| 13. Driver Sub | 90A-13 |
| 14. Outer Sleeve | 90A-14 |
Frequently Asked Questions (FAQ)
Q1: What makes the CIR90 DTH Hammer suitable for low air pressure?
A: The CIR90 is specifically designed with a patented steel valve system that allows it to maintain high impact energy even when operating at lower air pressures between 5-10 Bar.
Q2: How much does the patented steel valve design improve performance?
A: The unique steel valve design increases the overall work efficiency of the hammer by at least 20% compared to non-patented designs.
Q3: What are the primary applications for the CIR series hammers?
A: These hammers are widely used for mining, quarrying, water well drilling, road construction, anchoring, and slope protection projects.
Q4: What size drill bits are compatible with the CIR90?
A: The CIR90 hammer is designed to work with drill bit diameters ranging from 90mm to 120mm.
Q5: How is the durability of the internal components ensured?
A: All critical internal components, including the piston and valve, undergo strict heat treatment processes to maximize wear resistance and tool life.
Q6: Is the wear sleeve reversible in the CIR series?
A: No, the CIR series hammers utilize a non-reversible wear sleeve design as part of their high-performance internal configuration.
