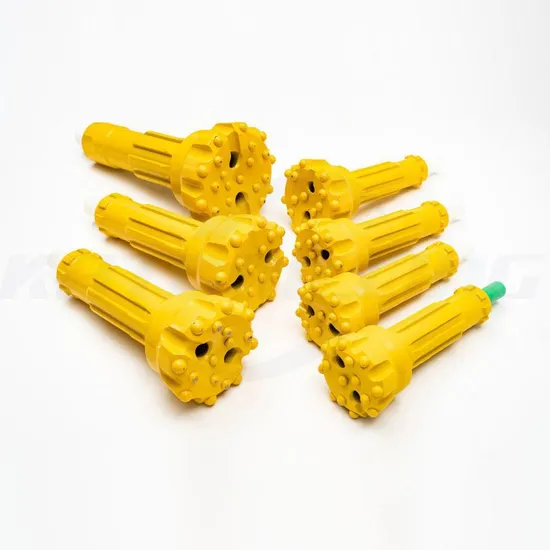

High-Quality CIR76 Miningwell Bits DTH Hammer Drilling Tools Drill Bit for Mining and Water Well Manufacturers, Factories
High-Quality CIR76 Miningwell Bits DTH Hammer Drilling Tools Drill Bit for Mining and Water Well Manufacturers, Factories
High-Quality CIR76 Miningwell Bits DTH Hammer Drilling Tools Drill Bit for Mining and Water Well Manufacturers, Factories
High-Quality CIR76 Miningwell Bits DTH Hammer Drilling Tools Drill Bit for Mining and Water Well Manufacturers, Factories
High-Quality CIR76 Miningwell Bits DTH Hammer Drilling Tools Drill Bit for Mining and Water Well Manufacturers, Factories
1 / 5
High-Quality CIR76 Miningwell Bits DTH Hammer Drilling Tools Drill Bit for Mining and Water Well Manufacturers, Factories
High-Quality CIR76 Miningwell Bits DTH Hammer Drilling Tools Drill Bit for Mining and Water Well Manufacturers, Factories
High-Quality CIR76 Miningwell Bits DTH Hammer Drilling Tools Drill Bit for Mining and Water Well Manufacturers, Factories
High-Quality CIR76 Miningwell Bits DTH Hammer Drilling Tools Drill Bit for Mining and Water Well Manufacturers, Factories
High-Quality CIR76 Miningwell Bits DTH Hammer Drilling Tools Drill Bit for Mining and Water Well Manufacturers, Factories

High-Quality CIR76 Miningwell Bits DTH Hammer Drilling Tools Drill Bit for Mining and Water Well Manufacturers, Factories

Product Details
Customization: Available
After-sales Service: Repair or Replacement
Warranty: 6 Months
Send Inquiry

Product Description

Basic Specifications
Model NO.
CIR76 DTH bit
Certification
CE, ISO 9001:2008
Standard
AISI, GB
Surface Treatment
Spray-Paint
Material
Carbon Steel / Alloy Steel
Machine Type
Drilling Tools
Bit Shank
CIR76
Diameter
76-85mm
Package
Wooden Case
Capacity
500,000 PCS/Month
Packaging & Delivery
Package Size
30.00cm * 30.00cm * 30.00cm
Gross Weight
5.000kg
Product Description

Down the hole (DTH) hammers are advanced drilling tools recognized for their economy and powerful drilling capacity in mining and industrial applications. Designed to work in perfect unison with drill bits, they provide high penetration rates, long service life, and minimized operational costs.

Key Features & Advantages

  • Maximum Energy Transfer: Special inner structure designed according to rock drilling theory for fast speed and low air consumption.
  • Superior Materials: Adaption of high-quality alloy steel and advanced processing for smooth performance.
  • Easy Maintenance: Simple, reliable inner structure allows for easy assembly and disassembly.
  • High Compatibility: Fully interchangeable with DTH bits and drill pipes.
  • Optimized Design: Multihead thread connecting chuck ensures easy bit separation from the hammer.
Applications
Water well drilling
Mining & Mineral Exploration
Bench drilling
Civil Engineering
Oil well drilling
High pressure drilling rigs
Available Sizes:

3" DTH Bits (DHD3.5, M30) | 4" DTH Bits (DHD340, SD4, QL40, M40) | 5" DTH Bits (DHD350, SD5, QL50, M50) | 6" DTH Bits (DHD360, SD6, QL60, M60) | 8" DTH Bits (DHD380, SD8, QL80, M80) | Low air pressure (CIR80, CIR90).

CIR Series Low Air Pressure Specifications
Specification Gauge Buttons Front Buttons Shank Length Port Holes Weight
CIR65-65Φ12mm X 4Φ12mm X 2105mm21.5Kg
CIR65-68Φ12mm X 4Φ12mm X 2105mm21.6Kg
CIR76-76Φ12mm X 5Φ12mm X 3111mm2/32.1Kg
CIR76-85Φ12mm X 6Φ11mm X 4111mm22Kg
CIR90-90Φ14mm X 6Φ13mm X 2 + Φ12mm X 2130mm23.7Kg
CIR90-110Φ14mm X 6Φ13mm X 3 + Φ12mm X 3130mm34.6Kg
CIR110-150Φ14mm X 8Φ14mm X 3 + Φ13mm X 6140mm39.6Kg
CIR150-200Φ16mm X 9Φ14mm X 6 + Φ14mm X 6170mm324Kg
CIR150-300Φ16mm X 15Φ16mm X 18 + Φ14mm X 17170mm358Kg
Frequently Asked Questions
What makes the HD series DTH hammer more efficient?
The HD series features a specialized inner structure designed based on the latest rock drilling theory, which maximizes energy delivery to the bit while maintaining low air consumption.
Are these drill bits compatible with standard pipes?
Yes, our CIR and DTH series bits are designed to be fully interchangeable with standard DTH bits and drill pipes for seamless integration.
What materials are used for the CIR76 DTH bits?
We use high-quality alloy steel and carbon steel combined with advanced processing technologies to ensure long service life and resistance to wear.
Do the bits require a foot valve?
No, the design of these specific bits is optimized so that a foot valve is not required, simplifying the structure and increasing efficiency.
How is the product protected during shipping?
All bits and hammers are packed in sturdy wooden cases to prevent damage during transport, ensuring they arrive in perfect condition.
