The Internal Combustion Rock Drill Type YN27J is a highly efficient machine characterized by a compact structure, fewer easy-to-damage parts, and exceptional control. It is specifically designed to adapt to outdoor environments where water and electronic power are unavailable.
This hand-held drill integrates a gasoline engine, air pump, and rock drill with rotation equipment. Beyond rock drilling, it serves as a versatile tool for breaking, percussive drilling, and tamping.
Five Core Advantages of the YN27J Gasoline Rock Drill
The YN27J is a portable internal combustion gasoline rock drill that combines power and precision in one unit, ideal for field operations.
1 Excellent Environmental Adaptability
- No need for external power or water supply, enabling operation anytime and anywhere.
- Stable performance in extreme temperatures, ranging from 40°C high heat to -40°C severe cold.
- Particularly suitable for high mountains, plains, and remote mountainous regions lacking infrastructure.
2 Easy Operation & High Efficiency
- Simple start-up with just a handle rotation; no professional training required.
- Drilling speed of ≥250mm/min, significantly faster than traditional manual drilling.
- Automatic slag blowing: compressed air clears rock dust automatically to keep holes unobstructed.
- One-person operation reduces labor intensity significantly.
3 Compact Structure & Durability
- Total weight of only 27kg and small size (746×315×229mm) for easy transportation.
- High-strength materials ensure a stable structure and excellent impact resistance.
- Minimal wearing parts ensure simple maintenance and a long service life.
- Parts are fully interchangeable with international similar products.
4 Fuel-Efficient & Long Endurance
- Low fuel consumption: ≤0.12L/m (per meter of drilling).
- Large-capacity fuel tank (≥1.5L) supports continuous operation for several hours.
- Special carburetor design maintains efficiency even in high-altitude areas.
5 Multifunctional Application
- Capable of vertical downward drilling (max depth 6m) and upward drilling at <45°.
- Ideal for mining, road construction, bridge building, and geological exploration.
- Quickly converts into a crusher or rammer for high cost-effectiveness.
Technical Specifications
| Machine Parameters |
| Weight of main machine | 27kg |
| Overall dimensions (L*W*H) | 746*315*229mm |
| Type of engine | Single cylinder, air cooled two strokes |
| Cylinder diameter * stroke of piston | Φ58*70mm |
| Rotation speed of engine | ≥2450rpm |
| Displacement of engine piston | 185cm³ |
| Type of carburetor | Hand needle valve, floatless type |
| Ignition system | Controllable silicon, contactless system |
| Drilling speed (mean value) | ≥250mm/min |
| Drilling hole diameter | Φ28-42mm |
| Max drilling depth | 6m |
| Fuel consumption | ≤0.09L/m |
| Tank capacity | ≥1.5liter |
| Mixture ratio (Gasoline:Oil) | 12:01 |
| Drill rod and breaker shank | Hex22*108mm |
| Rotating speed of drill rod | ≥200rounds/min |
| Clearance of spark plug | 0.5-0.7mm |

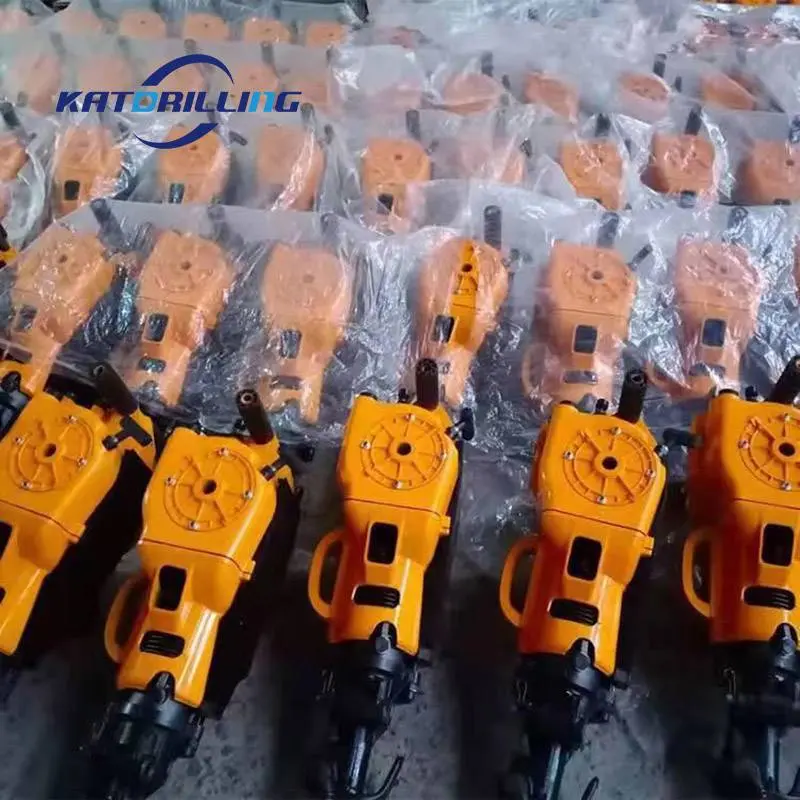

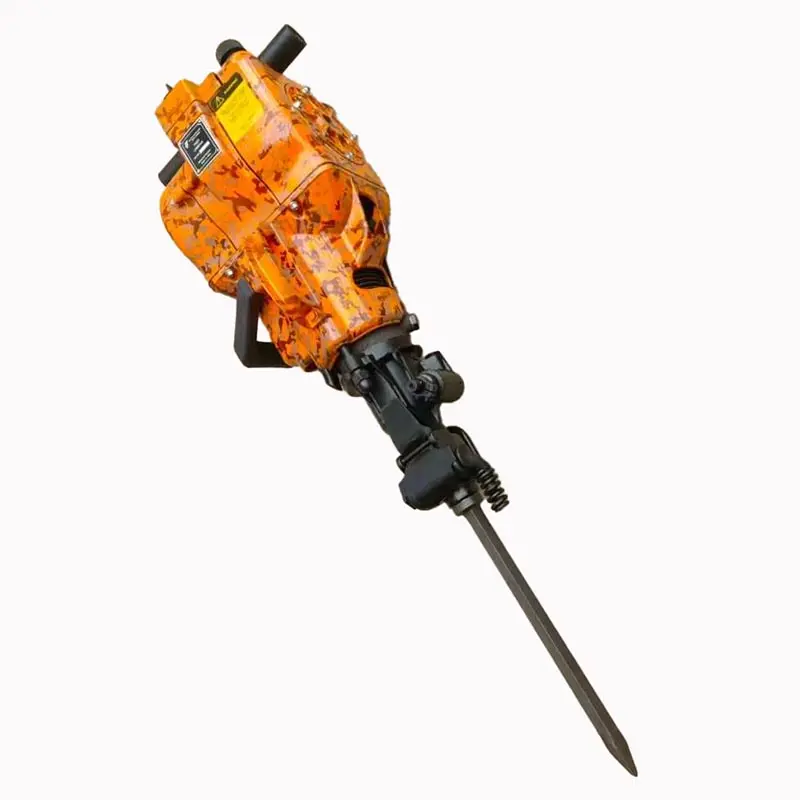

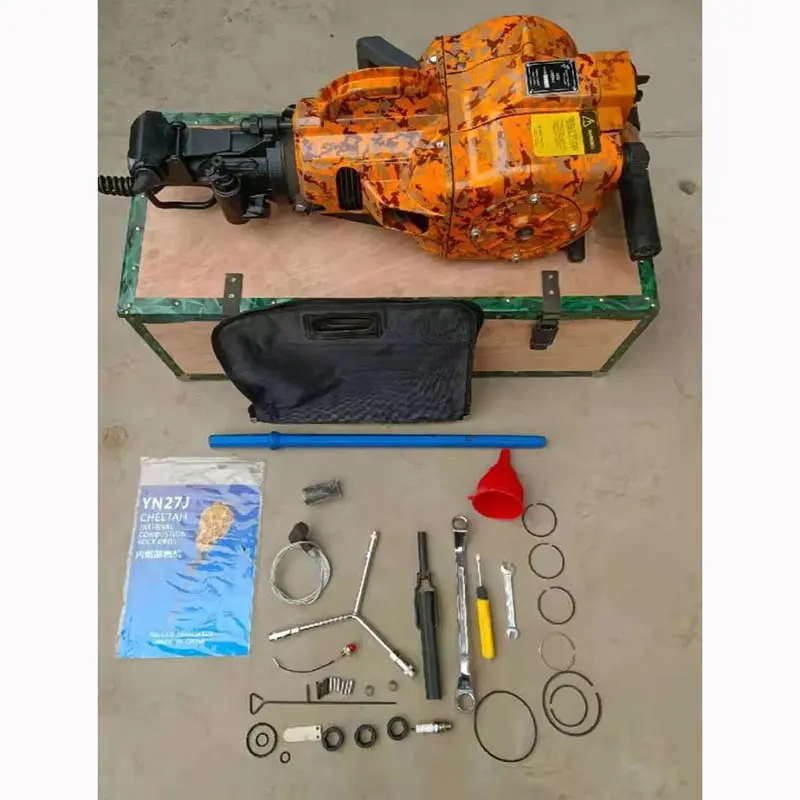

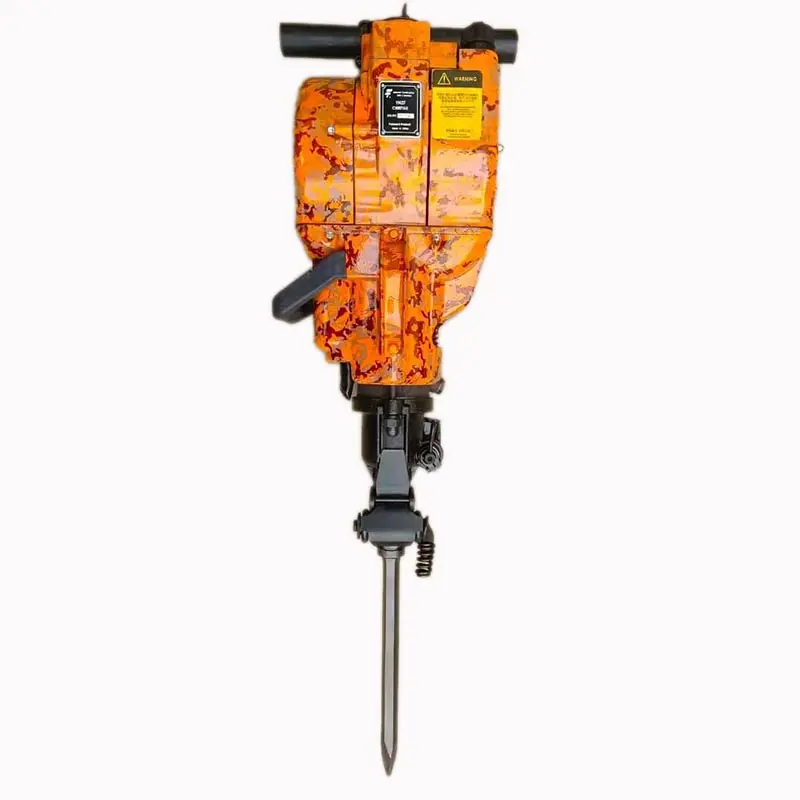

Product Display
Summary
With its core advantages of no need for external energy, easy operation, compact structure, high efficiency, and durability, the YN27J gasoline rock drill is an ideal choice for drilling operations in field environments. It serves as a "portable power station" for small quarries, remote construction, and emergency rescue projects.
Frequently Asked Questions
Q: Does the YN27J rock drill require an external air compressor?
A: No, the YN27J is a self-contained unit that integrates the gasoline engine and air compressor, making it completely independent of external power sources.
Q: What is the maximum drilling depth for this machine?
A: The YN27J can reach a maximum vertical drilling depth of up to 6 meters.
Q: Can it operate in extremely cold weather?
A: Yes, the machine is designed to perform reliably in temperatures ranging from -40°C to 40°C.
Q: What kind of fuel does the YN27J use?
A: It uses a mixture of gasoline and lubrication oil at a volume ratio of 12:1.
Q: Is it difficult to transport to remote areas?
A: Not at all. Weighing only 27kg with a compact design, it is easily portable by a single person, even in mountainous terrain.
Q: Can this machine be used for tasks other than drilling?
A: Yes, by changing the internal components, it can be quickly converted into a breaker or a tamping rammer for demolition and construction work.
