China CIR70-CIR76 Water Well Drilling Mining Rock Drilling DTH Bits and Hammer Manufacturer, Factories

Customization:	Available
After-sales Service:	Repair or Replacement
Warranty:	6 Months

iBasic Product Information

Model NO.

CIR70/CIR76

Certification

CE, ISO 9001:2000, ISO 9001:2008

Standard

AISI, GB

Surface Treatment

Spray-Paint

Process

Stamping

Material

Carbon Steel

Machine Type

Drilling Tools

Color

Red, Black, Yellow, White

Bit Adapter

CIR70

Length

777mm

HS Code

82071990

Capacity

500,000 PCS/Month

📦Packaging & Delivery

Package Size

30.00cm * 30.00cm * 30.00cm

Gross Weight

5.000kg

Transport Package

Wooden Case

★Product Description

Because of economy and powerful drilling capacity, down the hole hammer become an advanced drilling tool for drilling and mining industries. Down the hole hammers and drill bits are designed together to work in perfect unison, giving high penetration rates, long service life and low costs.

Maximum Energy Transfer: Fast drilling speed and low air consumption due to the special inner structure designed according to rock drilling theory.
High Durability: Smooth performance and long service life thanks to high-quality alloy steel materials and advanced processing technology.
Easy Maintenance: Low problem rate due to simple, reliable, and easy-to-assemble inner structures.
Convenient Operation: Easy to depart bit from hammer due to multi-head thread connecting chuck and cylinder.
Compatibility: Fully interchangeable with standard DTH bits and drill pipes.

⚙Main Applications

High pressure drilling rigs
Water well drilling
Bench drilling & Mining
Oil well drilling
Civil Engineering exploration
Mineral Exploration

TTechnical Specifications (High Pressure)

Type	Model	Length (mm)	Weight (kg)	External Dia.(mm)	Hole Range (mm)
3.5 inch	DHD3.5	930	25	Φ82	Φ90-110
4 inch	DHD340	1030	39	Φ99	Φ110-135
5 inch	DHD350	1214	76.5	Φ125	Φ135-155
6 inch	DHD360	1248	100	Φ142	Φ155-190
8 inch	D85	1492	188	Φ180	Φ195-254
10 inch	SD10	1502	290	Φ226	Φ254-311

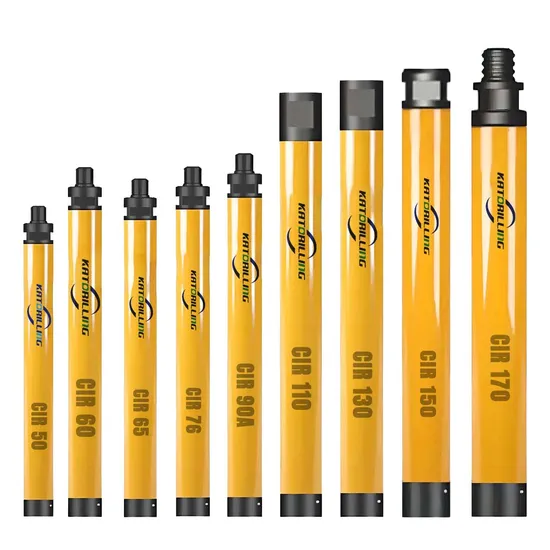

LLow Air Pressure Hammers Specs

Item	Length (mm)	Top Sub Thread	Outside Dia. (mm)	Weight (KG)	Bit Dia. (mm)	Air Consum. (m³/min)	Bit Shank
CIR-50	628	F32*8PIN	44	5	50	3-5	CIR50
CIR-60	777	F42*8PIN	53	7.5	60	3-7	CIR60
CIR-65	745	F42*10PIN	61	13	65	6-12	CIR65
CIR-76	811	F48*10PIN	66	13.5	76	6-10	CIR70

Frequently Asked Questions

What makes the HD series DTH hammer more efficient?

The HD series is designed with a special inner structure based on the latest rock drilling theory, which maximizes energy delivery to the bit, resulting in faster penetration and lower air consumption.

Can these hammers be used for water well drilling?

Yes, these hammers are ideal for water well drilling, as well as mining, bench drilling, and civil engineering applications.

What materials are used in the manufacturing of the hammers?

We use high-quality alloy steel combined with advanced processing technology and stamping processes to ensure a long service life and smooth performance in tough conditions.

Are the DTH bits and hammers interchangeable?

Yes, our hammers are designed to be interchangeable with standard DTH bits and drill pipes, offering great flexibility for various drilling setups.

What range of hole sizes can these tools cover?

Our equipment covers a wide range of hole diameters, from 50mm up to 605mm, depending on the hammer size and type (3" to 12" models available).

Is a foot valve required for the drill bits?

For many of our high-efficiency models, a foot valve is not required in the bit, which helps in maximizing efficiency and reducing maintenance issues.
