China U92 Shearer Pick Manufacturers, Factory

Our products include all kinds of round cutter bit and flat cutter bits for excavate coal Machine. Such as U76, U82, U84, U85, U92, U94, U95, U118 S100,S135,S150,S160,S200 , B47K17H, B47K19H, B47K22H, B43K, B43H, BHR73 etc and coal bolting bit and coal bolting Rod.

Send Inquiry

Product Description

🛡️

High-Quality Material: Alloy steel body is made by material ASTM4140 (42CrMoA), heat treatment with HRC38-42 hardness, providing high toughness and wearable character.

💎

Tungsten Carbide Tip: Low press sintered and suitable grade selection ensures superior performance during target project operations.

⚡

Operational Efficiency: Features high feed rates, long service life, and short tool changing times. Suitable for surface mining, underground mining, and tunneling.

Our product range includes all types of round cutter bits and flat cutter bits for coal excavation machinery, including models like U76, U82, U84, U85, U92, U94, U95, U118, S100, S135, S150, S160, S200, B47K17H, B47K19H, B47K22H, B43K, B43H, BHR73, as well as coal bolting bits and rods.

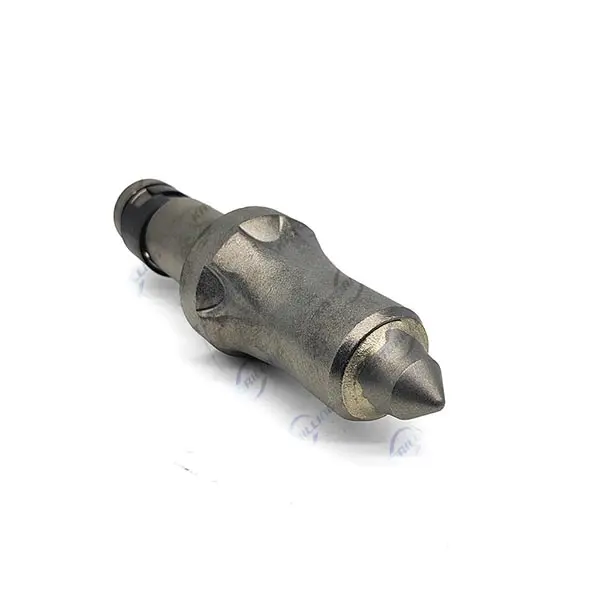

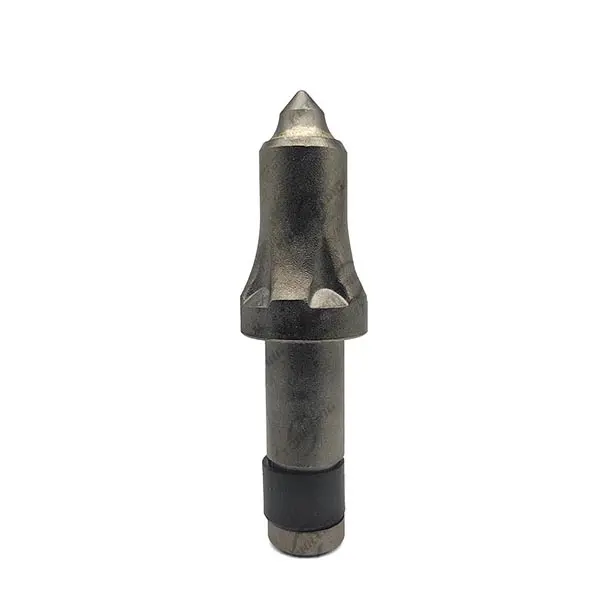

U92 Shearer Pick Display

Technical Specifications

Product Overview
Product Name	Coal Cutting Tools
Description	Rock drilling tools, construction drilling tools, mining tools, road milling tools, shield cutters.
Material	Carbide Steel
MOQ	100 PCS
Diameter	19-70mm
Use	Mining and Drilling

Replacement Cross-Reference

19mm Round Shank

U43KHL, C21, U43KH, C24, U43K, C22, U43KL, C21HD, U43KHD, U43KL

25mm Round Shank

U765XHD, AM476, U765HD, U73, UC765, AM765PKH, AM430FB, C31HD, C31, C32, U40HD

30mm Round Shank

KS5, AM510FG, U119, U119HF, AM521HF, AM514P, U85AUS, AM511, U85, U85HD, UR118, U84KHD

35mm Round Shank

U92, U92HD, U92HDL, U92K, U94, U94KHD, U92KHD, U92LR, U94HDLR, U93LRD, U95

Detailed Model Parameters

Category	Model	Height (mm)	Diameter (mm)	Alloy Size (mm)	Sleeve Dia (mm)
Shearer Pick	U47	157	Φ64	Φ19	Φ30
	U82	152	Φ50	Φ22	Φ30
	U85	161	Φ50	Φ16	Φ30
	U94	183	Φ55	Φ22	Φ35
Roadheader Pick	S100	141	Φ53	Φ22	Φ33.7
	S120	153	Φ70	Φ22	Φ38
	S150	153	Φ70	Φ25	Φ38
Rotary Excavator	C31/25-12H	118	Φ33	Φ12	Φ25
	C50/30-19H	130.5	Φ50	Φ19	Φ30
	C60/30-22H	130.5	Φ60	Φ22	Φ30

Frequently Asked Questions

Q1: What materials are used in the construction of the cutter bits? A: The bodies are manufactured using ASTM4140 (42CrMoA) alloy steel, and the tips are made from high-grade low-press sintered tungsten carbide for maximum durability.

Q2: Can these tools be used for both surface and underground mining? A: Yes, our products are versatile and specifically designed for surface mining, underground mining, and tunneling operations.

Q3: Are these products compatible with major brands like Kennametal? A: Yes, we offer a wide range of specifications that serve as direct replacements for Kennametal part numbers across various shank sizes.

Q4: What is the hardness level of the tool body? A: The alloy steel body undergoes heat treatment to reach a hardness of HRC38-42, ensuring high toughness and wear resistance.

Q5: What is the minimum order quantity (MOQ) for these mining tools? A: The standard minimum order quantity is 100 pieces per model.

Q6: Is it possible to customize the color of the tools? A: Yes, we can provide the tools in different colors according to the specific requests of our customers.
