China U82 Shearer Pick Factory, Pricelist

Our products include all kinds of round cutter bit and flat cutter bits for excavate coal Machine. Such as U76, U82, U84, U85, U92, U94, U95, U118 S100,S135,S150,S160,S200 , B47K17H, B47K19H, B47K22H, B43K, B43H, BHR73 etc and coal bolting bit and coal bolting Rod.

Send Inquiry

Product Description

⚙️ Premium Material

Alloy steel body made by ASTM4140 (42CrMoA) with heat treatment (HRC38-42), ensuring high toughness and wearability.

💎 Tungsten Carbide Tip

Low press sintered carbide tips selected for target projects, ensuring maximum performance during heavy-duty work.

🚀 High Efficiency

Adapted for machines requiring high feed rates, long service life, and minimized tool changing time.

Our tools are suitable for surface mining, underground mining, and tunneling. Product range includes round cutter bits and flat cutter bits such as U76, U82, U84, U85, U92, U94, U95, U118, S100, S135, S150, S160, S200, B47K17H, B47K19H, B47K22H, B43K, B43H, BHR73, and coal bolting bits/rods.

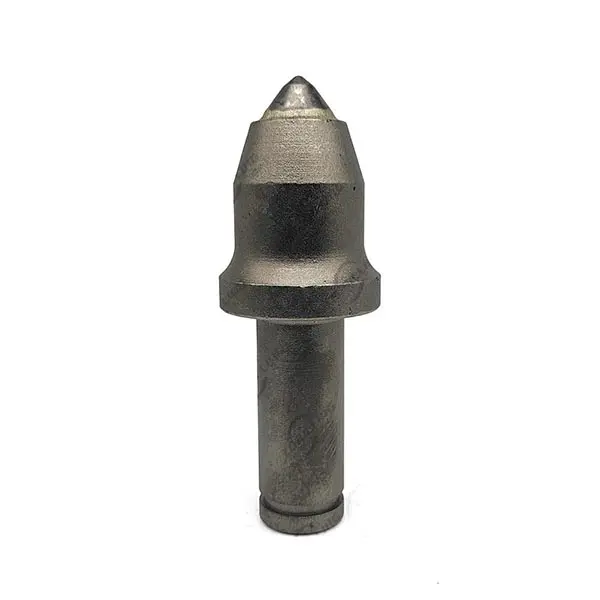

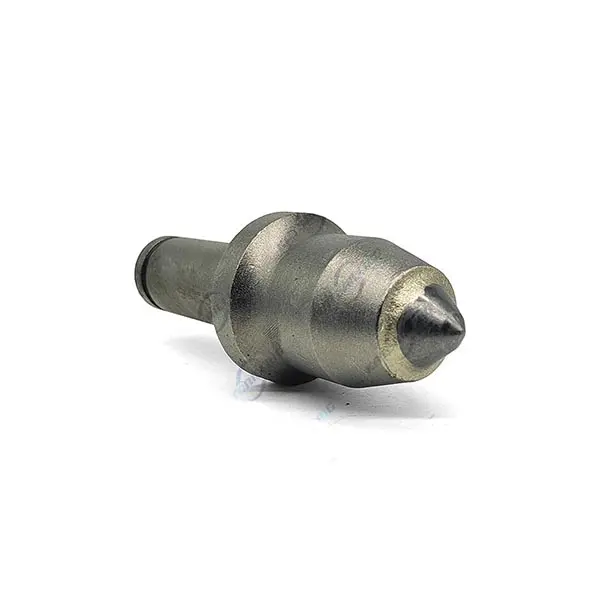

U82 Shearer Pick Specification

Specifications	Details
Product Name:	Coal Cutting Tools
Description:	Rock drilling tools, construction drilling tools, mining tools, road milling tools, shield cutters.
Material:	Carbide steel
MOQ:	100PCS
Available Types:	U76, U82, U84, U85, U92, U94, U95, U118, S100, S135, S150, B47K19H, B47K22H, B43K, B43H, BHR73, etc.
Diameter:	19-70mm
Application:	Mining and drilling
Color:	According to the customer request

Cross-Reference & Compatibility

Our products are engineered to replace standard specifications, including various round shank tool series:

19mm Round Shank: U43KHL, C21, U43KH, C24, U43K, C22, U43KL, C21HD, U43KHD, U43KL

20mm Round Shank: U50KH, U50KL, U51KHL, U51KL

25mm Round Shank: U765XHD, AM476, U765HD, U73, UC765, AM765PKH, AM430FB, C31HD, C31, C32, U40HD

30mm Round Shank: KS5, AM510FG, U119, U119HF, AM521HF, AM514P, U85AUS, AM511, AM511FG, U85, U85HD, U85HDF, AM512FG, UR118, U84KHD, U118HCP, U118K, U83K

35mm Round Shank: U92, U92HD, U92HDL, U92K, U94, U94KHD, U92KHD, U92LR, U94HDLR, U93LRD, U95, U95HD

30/38mm Round Shank: C7, U47, KSM1, U47HD, U47 52, U47GB, TS11, U47 1, KSM7, C4, U44, C4 1, U44 1

52mm Round Shank: U200HF, AM956DB, AM962, U200, U200TS, AM941, AM941HF, AM942DB, AM942DBHF, AM943DB

Technical Dimensions Portfolio

Category	Model	Height(mm)	Diameter (mm)	Alloy size(mm)	Tooth sleeve diameter(mm)
Shearer Pick	U47	157	Φ64	Φ19 / Φ14	Φ30
	U82	152	Φ50	Φ22 / Φ19	Φ30
	U84	139/142	Φ55/Φ50	Φ16 / Φ19	Φ30
	U94	183/178/182	Φ55/Φ54	Φ22 / Φ19	Φ35
Roadheader Pick	S100	141/143	Φ53/Φ44.5	Φ22 / Φ13 / Φ12	Φ33.7
	S135	155/157/166.5	Φ64/Φ62/Φ65	Φ25 / Φ23	Φ38
	S160	149/150	Φ61/Φ65	Φ27 / Φ22 / Φ17	Φ30
Rotary Excavator Pick	C31/25-12H	118	Φ33	Φ12	Φ25
	C50/30-19H	130.5	Φ50	Φ19	Φ30
	C55/30-25H L	150	Φ55	Φ25	Φ30

Frequently Asked Questions

1. What materials are used for the cutter bit bodies?

The bodies are manufactured using high-quality ASTM4140 (42CrMoA) alloy steel, which undergoes specialized heat treatment to reach a hardness of HRC38-42 for superior toughness.

2. Can these tools be used in both underground and surface mining?

Yes, our coal mining tools are versatile and specifically designed for surface mining, underground mining, and tunneling operations.

3. How do the tungsten carbide tips perform in hard rock?

Our tungsten carbide tips are made from low-press sintered carbide. We select specific grades based on the target project to ensure optimal durability and penetration performance.

4. Are these bits compatible with major machine brands?

Absolutely. Our products are designed to meet or exceed standard specifications and can serve as direct replacements for various global specifications including Kennametal series.

5. What is the minimum order quantity (MOQ)?

The standard minimum order quantity for our coal cutting tools is 100 pieces per type.

6. Can I request a custom color for the tools?

Yes, we can provide different surface finishes and colors according to specific customer requests or branding requirements.
