KAT DRILLING
1 / 2
Alloy steel body is made by material ASTM4140 (42CrMoA), heat treatment with HRC38-42 hardness, providing high toughness and wearable character.
Made from low press sintered carbide. Grades are specifically selected according to target projects to ensure superior performance during operation.
Features a high feed rate, long service life, and short tool changing time. Suitable for surface mining, underground mining, and tunneling.
Our product range includes all kinds of round cutter bits and flat cutter bits for coal excavating machines. This includes series such as U76, U82, U84, U85, U92, U94, U95, U118, S100, S135, S150, S160, S200, B47K17H, B47K19H, B47K22H, B43K, B43H, BHR73, as well as coal bolting bits and rods.
| Product Name: | Coal Cutting Tools |
| Description: | Rock drilling tools, construction drilling tools, mining tools, road milling tools, shield cutters and related accessories. |
| Material: | Carbide Steel |
| MOQ: | 100 PCS |
| Type Range: | U76, U82, U84, U85, U92, U94, U95, U118, S100, S135, S150, B47K19H, B47K22H, B43K, B43H, BHR73, etc. |
| Diameter: | 19-70mm |
| Primary Use: | Mining and Drilling |
| Color Options: | According to customer requests |
19mm Round Shank: U43KHL, C21, U43KH, C24, U43K, C22, U43KL, C21HD, U43KHD, U43KL, etc.
20mm Round Shank: U50KH, U50KL, U51KHL, U51KL, etc.
25mm Round Shank: U765XHD, AM476, U765HD, U73, UC765, AM765PKH, AM430FB, C31HD, C31, C32, U40HD, etc.
30mm Round Shank: KS5, AM510FG, U119, U119HF, AM521HF, AM514P, U85AUS, AM511, AM511FG, U85, U85HD, U85HDF, AM512FG, UR118, U84KHD, U118HCP, U118K, U83K, etc.
35mm Round Shank: U92, U92HD, U92HDL, U92K, U94, U94KHD, U92KHD, U92LR, U94HDLR, U93LRD, U95, U95HD, etc.
30/38mm Crusher Tools: C7, U47, KSM1, U47HD, U47 52, U47GB, TS11, U47 1, KSM7, C4, U44, C4 1, U44 1, etc.
52mm Crusher Tools: U200HF, AM956DB, AM962, U200, U200TS, AM941, AM941HF, AM942DB, AM942DBHF, AM943DB, etc.
| Category | Model | Height (mm) | Diameter (mm) | Alloy Size (mm) | Sleeve Dia (mm) |
|---|---|---|---|---|---|
| Shearer Pick | U47 | 157 | Φ64 | Φ19 | Φ30 |
| U82 | 152 | Φ50 | Φ22 | Φ30 | |
| U85 | 195 | Φ55 | Φ16 | Φ35 | |

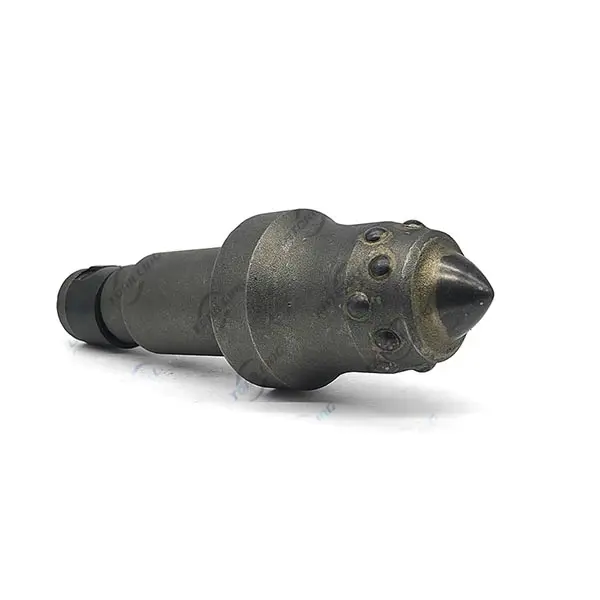

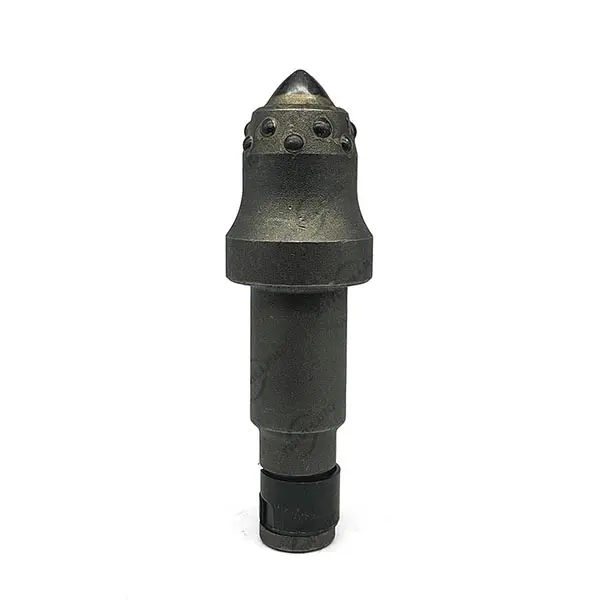

| U170 | 222 | Φ62 | Φ25 | Φ35 | |
| Roadheader Pick | S100 | 141 | Φ53 | Φ22 | Φ33.7 |
| S135 | 155 | Φ64 | Φ25 | Φ38 | |
| S150 | 153 | Φ70 | Φ25 | Φ38 | |
| S260 | 156 | Φ80 | Φ34 | Φ37.5 | |
| Rotary Excavator Pick | C31/25-12H | 118 | Φ33 | Φ12 | Φ25 |
| C35/25-16H | 142 | Φ47 | Φ16 | Φ25 | |
| C50/30-19H | 130.5 | Φ50 | Φ19 | Φ30 | |
| C60/30-22H | 130.5 | Φ60 | Φ22 | Φ30 |
