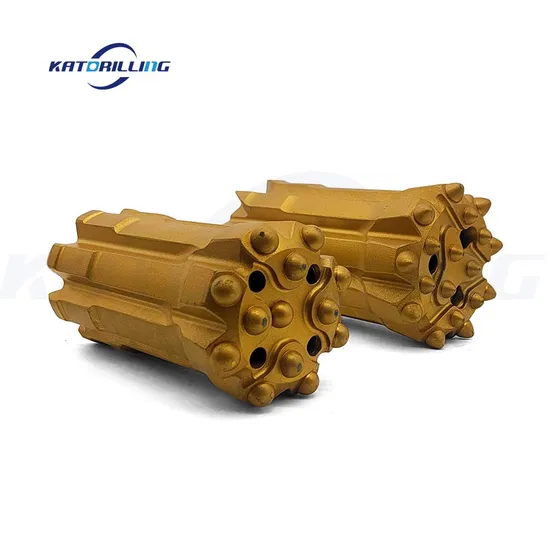

Bench and production drilling tools include rods, shank adapters, couplings and bits. We provide 9 main thread types: R3212, R32, HL38, T38, T45, T51, T60, ST58, and ST68. These are perfectly compatible with button bits, cross bits, and reaming products.
Our comprehensive range of rock drilling tools covers equipment from 1" rope threads up to T60 thread equipment. These tools are engineered to significantly improve drilling productivity on the market today.
| Carbide Dimension | Dimensions D | Flushing Hole | |||||
|---|---|---|---|---|---|---|---|
| Gauge | Front | [mm] | [in] | Front | Side | ||
| 6 | 10 | 3 | 10 | 57 | 2 1/4" | 3 | 1 |
| 6 | 11 | 3 | 11 | 64 | 2 1/2" | 3 | 1 |
| 6 | 11 | 3 | 9.5 | 57 | 2 1/4" | 1 | 2 |
| 6 | 12.7 | 3 | 11 | 64 | 2 1/2" | 1 | 2 |
| 6 | 12.7 | 3 | 12.7 | 76 | 3" | 3 | 1 |
| 8 | 11 | 6 | 11 | 76 | 3" | 2 | 0 |
| 8 | 12.7 | 6 | 12.7 | 89 | 3 1/2" | 2 | 0 |
| Drop Center | |||||||
| 6 | 10 | 3/1 | 10/9 | 64 | 2 1/2" | 3 | 0 |
| 6 | 11 | 3/1 | 11/9.5 | 70 | 2 3/4" | 3 | 0 |
