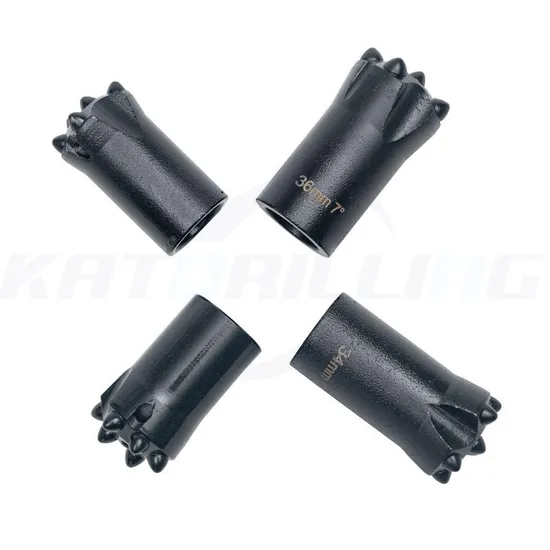

China Tapered Rock Drilling Tools 7/8 Buttons Tapered Button Bit with Taper 11 Degree Quotes, Pricelist

Product Details

Customization:	Available
After-sales Service:	Repair or Replacement
Warranty:	Repair or Replacement

Send Inquiry

Product Description

📋 BASIC PRODUCT INFORMATION

Model NO.

7/8 Buttons Bits

Certification

ISO 9001:2000, ISO 9001:2008

Material

Carbon Steel

Machine Type

Drilling Tools

Degree

Tungsten Carbide

Yk05 or T6

Manufacturing

Stamping

Surface Treatment

Spray-Paint

Colors Available

Red, Black, Yellow, White

Capacity

500,000 PCS/Month

📦 PACKAGING & DELIVERY

Package Size

30.00cm * 30.00cm * 30.00cm

Gross Weight

5.000kg

Transport Package

Wooden Case

🔍 PRODUCT DESCRIPTION

Shank Size Compatibility: 19mm, 22mm, 25mm maximum.

Available Diameters: 30mm, 32mm, 34mm, 36mm, 38mm, 40mm.

Tapered Connection: 6 degree, 7 degree, 11 degree, 12 degree etc.

Premium Materials: Alloy Steel Bar 45CrNiMoV with Tungsten Carbide Tips (YK05 or T6).

Design Features: Semi-Ballistic button shape, Flat Face, Standard Bit Body.

Button Configuration: Options for 5, 7, or 8 pieces.

📊 TECHNICAL SPECIFICATIONS

Diameter		Length		No. of Buttons	Buttons Specs		Gauge Angle	Flushing Hole		Weight (kg)
mm	inch	mm	inch	No. of Buttons	Gauge	Center	Gauge Angle	Side	Center	Weight (kg)
Button bit - For 22 mm (7/8") hex. Rod 4°46' taper angle (Short Skirt)
36	1 13/32"	50	1 31/32"	7	5x7	2x7	35°	1	2	0.2
Button bit - For 22 mm (7/8") hex. Rod 4°46' taper angle (Long Skirt)
33	1 5/16"	71	2 5/32"	7	5x8	2x7	40°	1	1	0.3
36	1 13/32"	71	2 5/32"	7	5x9	2x7	35°	1	1	0.3
Button bit - For 22 mm (7/8") hex. Rod 7° taper angle (Long Skirt)
30	1 3/16"	80	3 5/32"	7	5x6	2x7	35°	2	1	0.2
32	1 1/4"	80	3 5/32"	7	5x7	2x7	35°	1	1	0.3

❓ FREQUENTLY ASKED QUESTIONS

What materials are used in the construction of these button bits?

The bits are manufactured using high-quality Alloy Steel Bar (45CrNiMoV) combined with premium Tungsten Carbide Tips (YK05 or T6) for maximum durability and drilling efficiency.

Which tapered connection degrees are available for order?

We provide a wide range of tapered connections, including 6 degree, 7 degree, 11 degree, and 12 degree options to suit various drilling requirements.

What is the difference between short skirt and long skirt button bits?

Short skirt bits typically have a shorter overall length (e.g., 50-55mm) for specific compact applications, while long skirt bits (e.g., 71-80mm) provide better stability in certain rock formations.

What surface treatment is applied to these tools?

All bits undergo a professional spray-paint surface treatment, available in red, black, yellow, or white, to prevent corrosion and improve visibility.

What is the production capacity for bulk orders?

Our manufacturing facility has a robust production capacity of approximately 500,000 pieces per month, ensuring timely delivery for large-scale projects.

Are these bits compatible with standard drilling machines?

Yes, these bits are specifically designed for standard drilling tools and are compatible with 19mm, 22mm, and 25mm shank sizes.
