Tapered Bits Technical Specifications:
| Diameter | Length | No. of buttons | Buttons x button diameter | Gauge buttons angle° | Buttons angle° | Flushing hole | Weight approx. (kg) | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | inch | mm | inch | gauge | center | Side | Center | ||||
| Button bit - For 22 mm (7/8") hex. Rod 4°46' taper angle. Short Skirt | |||||||||||
| 36 | 1 13/32" | 50 | 1 31/32" | 7 | 5x7 | 2x7 | 35° | - | 1 | 2 | 0.2 |
| Button bit - For 22 mm (7/8") hex. Rod 4°46' taper angle. Long skirt | |||||||||||
| 33 | 1 5/16" | 71 | 2 5/32" | 7 | 5x8 | 2x7 | 40° | 15° | 1 | 1 | 0.3 |
| 41 | 1 5/8" | 71 | 2 5/32" | 7 | 5x7 | 2x7 | 35° | - | - | 2 | 0.3 |

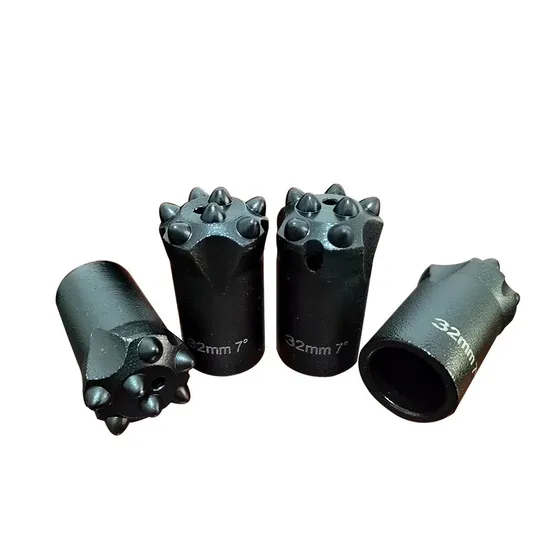

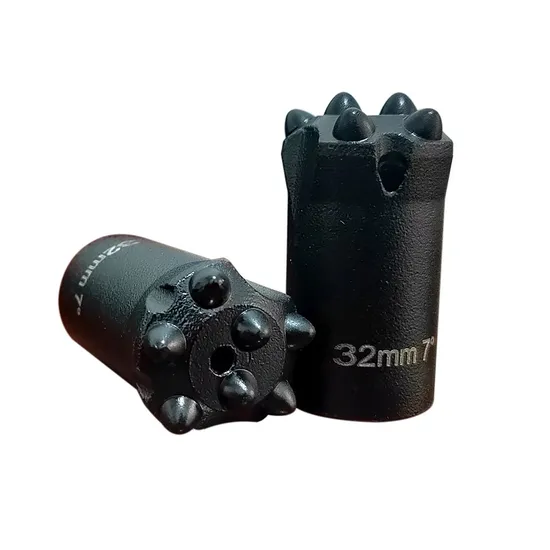

| Button bit - For 22 mm (7/8") hex. Rod 7° taper angle. Long skirt | |||||||||||
| 32 | 1 1/4" | 80 | 3 5/32" | 7 | 5x7 | 2x7 | 35° | 15° | 1 | 1 | 0.3 |
| Button bit - For 22 mm (7/8") hex. Rod. 11° taper angle. Short skirt. | |||||||||||
| 32 | 1 1/4" | 55 | 2 5/32" | 8 | 6x7 | 2x7 | 39° | 15° | 1 | 1 | 0.2 |
1. What materials are used in the manufacturing of these tapered bits?
The bits are constructed using high-quality Carbon Steel or Alloy Steel Bar 45CrNiMoV, combined with durable Tungsten Carbide Tips (YK05 or T6 grade) for superior drilling performance.
2. What taper angles and connection sizes are available?
We offer standard taper angles of 6, 7, 11, and 12 degrees. Shank sizes typically include 19mm, 22mm, and 25mm to fit various hex rods.
3. Can the color of the tapered bits be customized?
The standard spray-paint colors available are Red, Black, Yellow, and White. These coatings help protect the bits from corrosion during transport and storage.
4. What is the monthly production capacity for these drilling tools?
Our manufacturing facility has a production capacity of 500,000 pieces per month, ensuring stable supply for large-scale mining and construction projects.
5. How are the products packaged for international shipping?
Products are securely packed in wooden cases. A typical package size is 30x30x30cm with a gross weight of approximately 5.0kg, designed to withstand long-distance transport.
6. Are your products manufactured under any quality standards?
Yes, all products follow the GB standard and the manufacturing processes are certified under ISO 9001:2000 and ISO 9001:2008 quality management systems.
