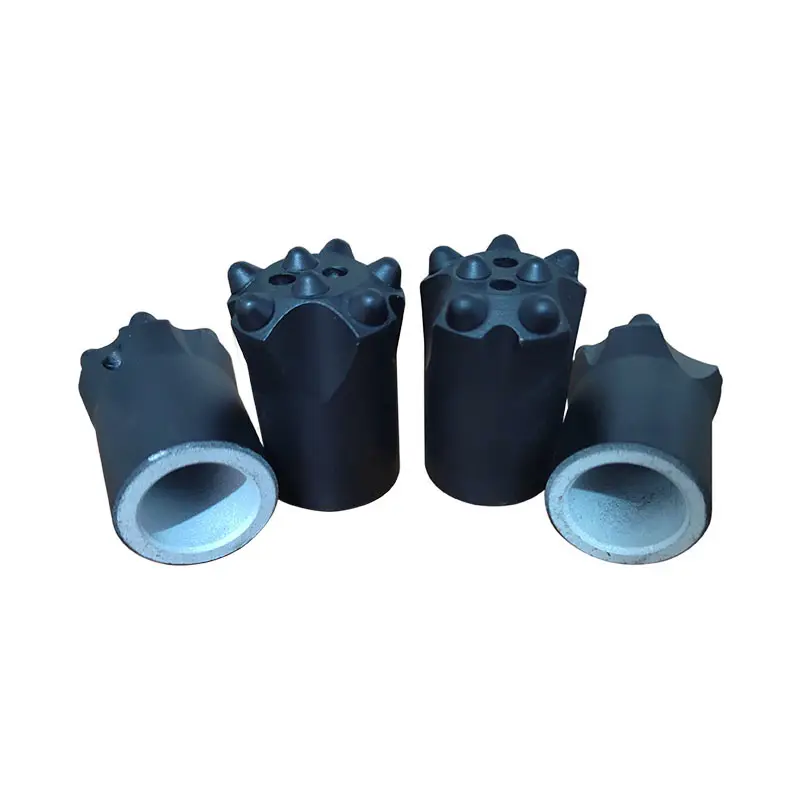

China Tapered Rock drill bits and Mining Drill Bits Quotes, Pricelist

Taper button bit as small hole bit is different with thread button bit as long hole bit to use taper match with bit with rod to be used for air leg or hand held jack hammer driller in quarrying,and mining. Description :

(1)Connect shank Size: Î¦19, Î¦22, Î¦25 at most

(2)Bit Diameter:Diameter 32mm,34mm,36mm, 38mm,40mm

(3)Tapered connection: 6 degree, 7 degree, 11 degree, 12 degree etc.

(4)Materialï¸°Alloy Steel Bar 45CrNiMoV, Tungsten Carbide Tips YK05 or T6.

(5)Button Shapeï¸° Ballistic Face Typeï¸° Flat Face; Bit Bodyï¸°Standard

(6)Qty of button: 5,7, 8 pcs

(7)main market: India, Saudi, Chile, South Africa,stone country consume too much

Send Inquiry

Product Description

📦

Product Detail

Tapered button bit as small hole bit is different with thread button bit as long hole bit to use taper match with bit with rod to be used for air leg or hand held jack hammer driller in quarrying and mining.

Supply high-quality Rock drill bits and Mining Drill Bits at competitive prices. These bits are crafted from premium carbide and advanced processing technology, ensuring a longer service life and excellent performance in demanding environments.

Cross bits are widely utilized in mining, tunneling, and various rock drilling applications.

🛠️ Specifications:

Connect Shank Size: Φ19, Φ22, Φ25
Bit Diameter: 32mm, 34mm, 36mm, 38mm, 40mm
Tapered Connection: 6°, 7°, 11°, 12° etc.

💎 Material & Design:

Material: Alloy Steel Bar 45CrNiMoV
Tungsten Carbide Tips: YK05 or T6
Button Shape: Ballistic or Flat Face Type
Button Quantity: 5, 7, 8 pcs

⚙️

Button bits for Hex.22mm

Diameter		Length		No. of Buttons	Button Size (mm)		Gauge Angle	Center Angle	Flushing Hole		Weight (kg)
mm	inch	mm	inch	No. of Buttons	Gauge	Center	Gauge Angle	Center Angle	Side	Center	Weight (kg)
For 22 mm (7/8") hex. Rod 4°46' taper angle. Short Skirt
36	1 13/32"	50	1 31/32"	7	5x7	2x7	35°	-	1	2	0.2
For 22 mm (7/8") hex. Rod 4°46' taper angle. Long skirt
33	1 5/16"	71	2 5/32"	7	5x8	2x7	40°	15°	1	1	0.3
36	1 13/32"	71	2 5/32"	7	5x9	2x7	35°	-	1	1	0.3
41	1 5/8"	71	2 5/32"	7	5x7	2x7	35°	-	-	2	0.3
For 22 mm (7/8") hex. Rod 7° taper angle. Long skirt
32	1 1/4"	80	3 5/32"	7	5x7	2x7	35°	15°	1	1	0.3
33	1 5/16"	80	3 5/32"	8	6x7	2x7	40°	15°	1	2	0.3
For 22 mm (7/8") hex. Rod. 11° taper angle. Short skirt.
32	1 1/4"	55	2 5/32"	8	6x7	2x7	39°	15°	1	1	0.2
For 22 mm (7/8") hex. Rod. 12° taper angle. Short skirt.
28	1 1/8"	50	1 31/32"	6	4x6	2x6	35°	-	1	1	0.2
32	1 1/4"	55	2 5/32"	7	5x7	2x7	35°	-	1	2	0.3

⚙️

Button bits for Hex.25mm

Diameter (mm)	Length (mm)	Buttons	Button Dim.	Gauge Angle	Center Angle	Weight (kg)
For 25 mm (1") hex. Rod 7° taper angle. Long skirt
41	71	7	5x9 / 2x8	40°	-	0.4
43	71	9	6x9 / 3x7	40°	-	0.5
For 25 mm (1") hex. Rod 12° taper angle. Long skirt
38	71	7	5x9 / 2x7	40°	15°	0.4
41	71	7	5x9 / 2x7	40°	15°	0.4

✖️

Cross Bit Specifications

Diameter (mm)	Diameter (in)	Flushing Hole	Gauge Carbide
7° SYSTEM BITS
32	1 1/4"	1F 2G	14 x 8
35	1 3/8"	1F 2G	14 x 8
41	1 5/8"	2G	14 x 8
12° SYSTEM BITS
30	1 3/16"	1F 2G	15 x 8
38	1 1/2"	1F 2G	14 x 8

❓

Frequently Asked Questions

What is the main application for tapered button bits?

Tapered button bits are primarily used as small hole bits for air leg or hand-held jack hammer drillers. They are ideal for quarrying, mining, and tunneling operations.

What materials are these rock drill bits made of?

They are manufactured using high-quality alloy steel bars (45CrNiMoV) and premium tungsten carbide tips (YK05 or T6) to ensure durability and a long service life.

Which taper angles are available for connection?

We offer various tapered connections including 6-degree, 7-degree, 11-degree, and 12-degree angles to match different rod specifications.

How many buttons are typically on a tapered bit?

Depending on the diameter and design requirements, our bits usually feature 5, 7, or 8 ballistic or flat face tungsten carbide buttons.

What is the difference between a cross bit and a button bit?

While both are used for rock drilling, button bits use carbide inserts (buttons) for crushing rock, whereas cross bits utilize a four-point chisel design. Cross bits are specifically effective in certain rock formations and for maintaining hole straightness.

What shank sizes are compatible with these bits?

Commonly compatible shank sizes include Φ19, Φ22, and Φ25, typically used with Hex.22mm and Hex.25mm drill rods.
