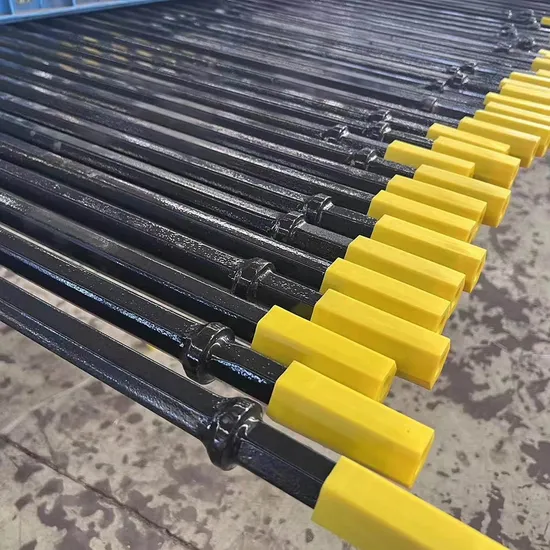

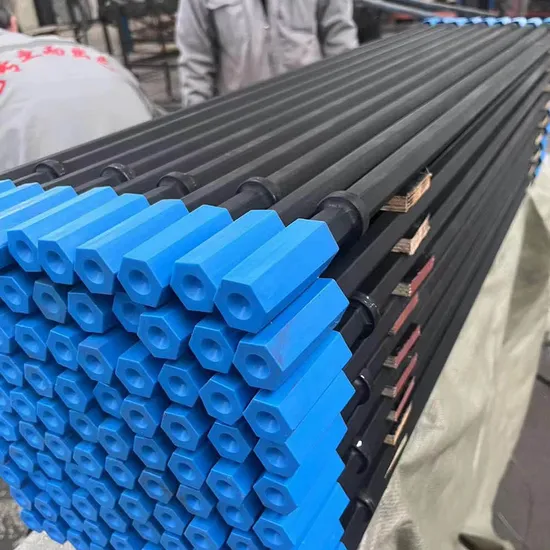

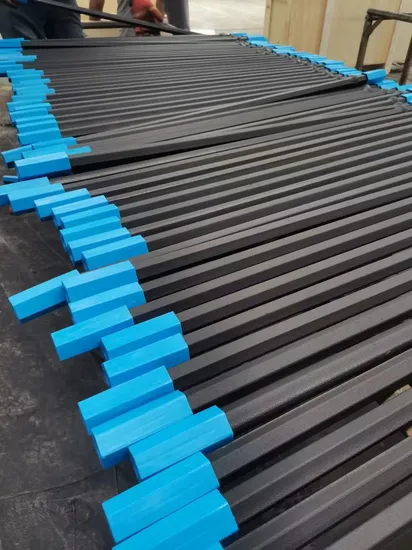

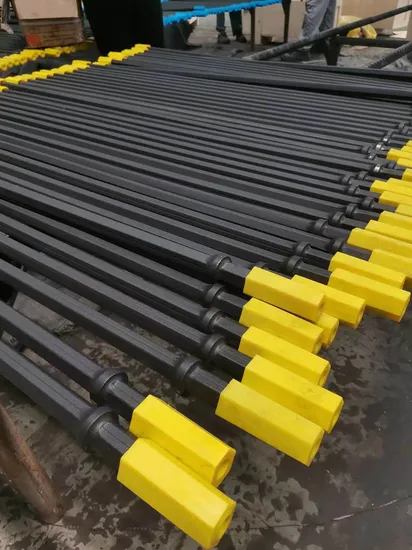

China 7degrees Taper Angle 800mm Mining Drills Rock Tools High Quality Tapered Drill Rod Factory, Quotes

Product Details
Customization: Available
After-sales Service: Repair or Replacement
Warranty: 6 Months

Product Description

Basic Information
Model NO.
7degrees
Certification
ISO 9001:2000, ISO 9001:2008
Standard
GB
Surface Treatment
Spray-Paint
Manufacturing Process
Forging
Material
Carbon Steel
Degree
7/11/12
Machine Type
Drilling Tools
Color
Red, Black, Yellow, White
Material Quality
95crmo 55simnmo 40simncrnimo 23crni3mo D6a
Origin
China
HS Code
82071990
Packaging & Delivery
Package Size
30.00cm * 30.00cm * 30.00cm
Gross Weight
5.000kg
Capacity
500,000 PCS/Month
Transport
Wooden Case
Product Description

Taper drill rod is essentially used for rock drilling, blasting holes, and other drilling works in quarries, coal mines, traffic projects, and other construction sites. It works in conjunction with taper drill bits and is available in different lengths for various applications.

Our taper drill rods come in a variety of taper angles. Generally, light-duty rock drills use a 7° taper or smaller, while heavy-duty rock drills mainly utilize 11° or 12° taper angles. The core principle is that the taper drill rods and taper drill bits must share the same tapered degree to ensure a secure fit and efficient energy transfer.

Key Specifications:
  • Steel Grade: 95CrMo (equivalent to SANDBAR20, C253, Z708, Sanbar23) or 55SiMnMo.
  • Shank Sizes: Hex 22mm × 108mm, 22mm × 159mm, 22mm × 80mm, 25mm × 108mm, 25mm × 159mm.
  • Taper Angles: 4°46', 6°, 7°, 11°, 12° degree etc.
  • Length Range: 0.4m to 10m.
  • Shank Configuration: Hex 22 mm (7/8") x 108 mm (4 1/4") with 6.7mm flushing hole.
Technical Specifications
ROD CROSS SECTION Length (mm) Length (foot/inch) Weight approx (kg)
4°46' Taper Angle
22H8002'7½"2.8
22H16005'3"5.3
22H400013'1½"12.7
7° Taper Angle
22H4001'3¾"1.6
22H18306'6.0
22H800026'3"24.9
11° Taper Angle
22H8002'7½"2.8
22H320010'6"10.2
22H800026'3"24.9
12° Taper Angle
22H6102'2.2
22H24358'7.8
22H800026'3"24.9
Frequently Asked Questions (FAQ)
What materials are the taper drill rods made from?
Our rods are manufactured using high-quality Carbon Steel and alloys such as 95CrMo (equivalent to SANDBAR20) and 55SiMnMo for superior durability in rock drilling.
How do I choose the correct taper angle?
Generally, light-duty rock drills use a 7-degree taper. For heavy-duty applications, 11-degree and 12-degree taper angles are the industry standard.
Can the rods be used for hand-held drilling?
Yes, we provide tapered rods in a full range of shank configurations (Hex 22mm and 25mm) specifically designed for hand-held pneumatic drilling needs.
What is the standard packaging for transport?
Products are securely packed in wooden cases or bundles to ensure they remain protected during international shipping.
Is it possible to order custom lengths?
Yes, while our standard lengths range from 0.4m to 10m, we can accommodate various drilling depth requirements based on the technical specifications.
What surface treatment is applied to the rods?
All rods undergo professional spray-painting treatment in colors like Red, Black, Yellow, or White to provide corrosion resistance and easy identification.
