Tapered button bit as small hole bit is different with thread button bit as long hole bit to use taper match with bit with rod to be used for air leg or hand held jack hammer driller in quarrying, and mining.
The wear resistance of the tapered bit is increased by 30%, the service life is longer, and it is suitable for different rocks.

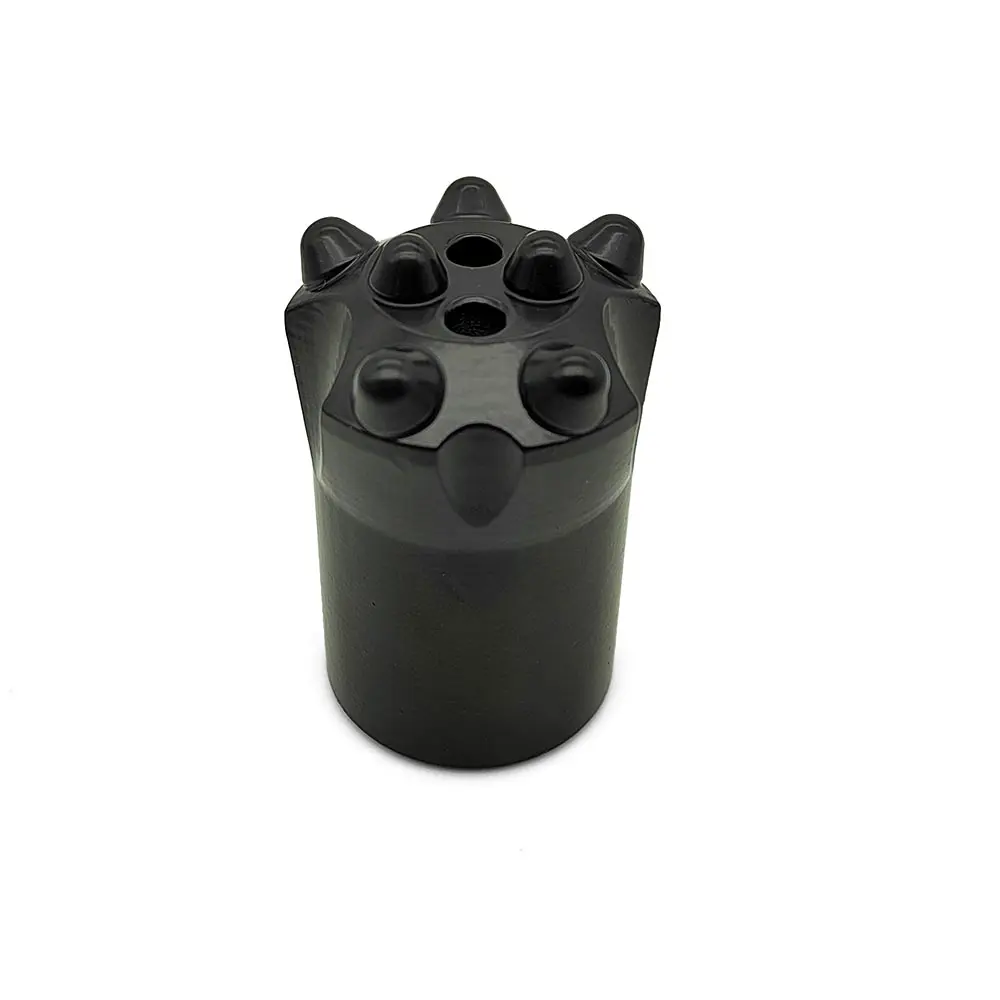

36mm Tapered Drill Bit, Boart Longyear style.
Technical Specifications
Connect Shank Size
Φ22
Bit Diameter
36mm
Tapered Connection
7 degree, 11 degree, 12 degree etc.
Material
Alloy Steel Bar 45CrNiMoV, 50R61, Tungsten Carbide Tips YK05 or T6.
Button & Face
Ballistic Shape, Flat Face, Standard Bit Body
Quantity of Button
7 pcs
Product Gallery
Frequently Asked Questions
What is the difference between tapered and thread button bits?
Tapered button bits are used for small holes with a taper match on the rod, ideal for air leg or hand-held jack hammer drillers. Thread button bits are typically used for long hole drilling.
What applications are these tapered bits suitable for?
These bits are specifically designed for quarrying and mining operations where small hole drilling is required.
How much does the wear resistance improve on these bits?
The wear resistance of these tapered bits is increased by 30% compared to standard models, ensuring a longer service life in various rock conditions.
What connection degrees are available for this bit?
We offer tapered connections in 7 degree, 11 degree, and 12 degree configurations to match different rod requirements.
What materials are used in the construction of the 36mm bit?
The bit is constructed using high-quality Alloy Steel Bar (45CrNiMoV or 50R61) and premium Tungsten Carbide Tips (YK05 or T6).
What is the button configuration for the 36mm diameter bit?
The 36mm tapered bit features 7 pieces of ballistic-shaped buttons on a flat face design for efficient rock penetration.
