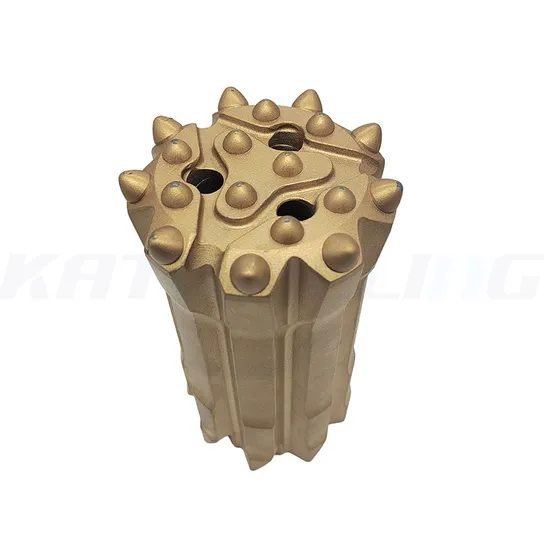

Bench and production drilling tools include rods, shank adapters, couplings and bits. We provide 9 main threads: R3212, R32, HL38, T38, T45, T51, T60, ST58 and ST68. These are compatible with button bits, cross bits and reaming products.
The comprehensive range of bench and production rock drilling tools includes equipment from 1" rope threads up to T60 thread equipment. These drill rods, tubes and button bits are designed to improve productivity considerably in various drilling environments.
| Carbide Dimension Gauge | Carbide Dimension Front | Dimensions D | Flushing Hole | ||||
|---|---|---|---|---|---|---|---|
| [No.] | [mm] | [No.] | [mm] | [mm] | [in] | Front | Side |
| 6 | 14 | 4 | 14 | 89 | 3 1/2" | 3 | 0 |
| 8 | 12.7 | 6 | 11 | 82 | 3 1/4" | 2 | 1 |
| 8 | 12.7 | 6 | 11 | 85 | 3 3/8" | 2 | 1 |
| 8 | 12.7 | 6 | 12.7 | 89 | 3 1/2" | 2 | 0 |
| 8 | 14 | 6 | 14 | 102 | 4" | 2 | 0 |
| 8 | 16 | 6 | 14 | 115 | 4 1/2" | 2 | 0 |
| 8 | 16 | 8 | 14 | 127 | 5" | 2 | 0 |
| 8 | 16 | 8 | 16 | 140 | 5 1/2" | 2 | 0 |
| 8 | 12.7 | 5 | 12.7 | 89 | 3 1/2" | 4 | 2 |
| 8 | 14 | 6 | 12.7 | 102 | 4" | 4 | 2 |
| 8 | 14 | 7 | 14 | 115 | 4 1/2" | 4 | 2 |
| 8 | 16 | 7 | 14 | 121 | 4 3/4" | 4 | 2 |
| 8 | 16 | 8 | 14 | 127 | 5" | 4 | 2 |
| 9 | 11 | 8 | 10 | 89 | 3 1/2" | 3 | 1 |
| 9 | 12.7 | 8 | 12.7 | 102 | 4" | 3 | 1 |
| 9 | 14 | 9 | 12.7 | 115 | 4 1/2" | 3 | 1 |
