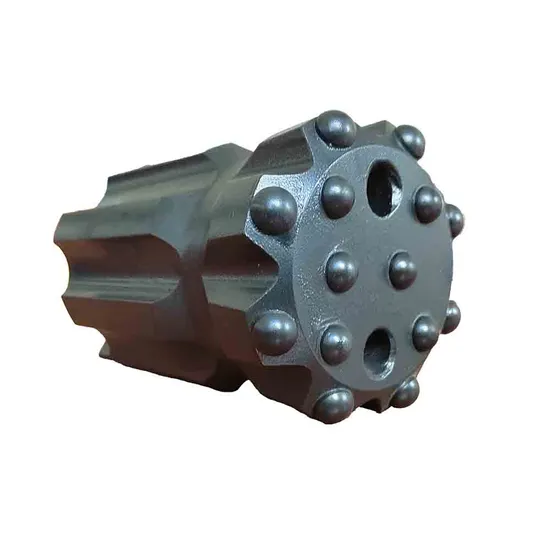

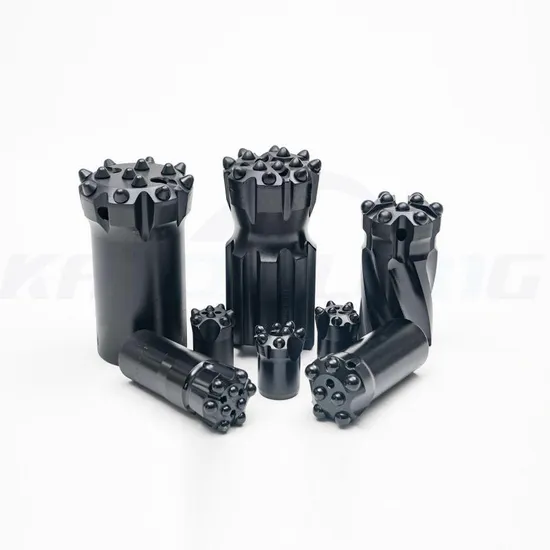

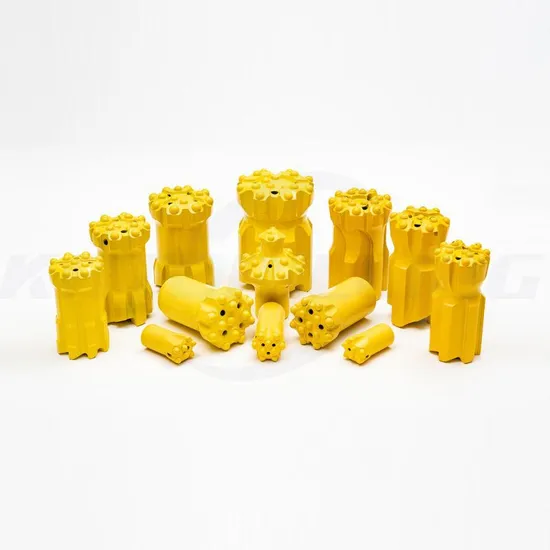

Bench and production drilling tools include rods, shank adapters, couplings and bits. We offer a wide range of threads including R3212, R32, HL38, T38, T45, T51, T60, ST58, and ST68. These tools are compatible with button bits, cross bits, and various reaming products.
Our comprehensive range covers equipment from 1" rope threads up to T60 thread specifications. These drilling tools are engineered to significantly improve productivity in bench and production rock drilling environments.
| Carbide Dimension | Dimensions D | Flushing Hole | |||||
|---|---|---|---|---|---|---|---|
| Gauge | Front | mm | inch | Front | Side | ||
| 6 | 14 | 4 | 14 | 89 | 3 1/2" | 3 | 0 |
| 8 | 12.7 | 6 | 11 | 82 | 3 1/4" | 2 | 1 |
| 8 | 12.7 | 6 | 11 | 85 | 3 3/8" | 2 | 1 |
| 8 | 12.7 | 6 | 12.7 | 89 | 3 1/2" | 2 | 0 |
| 8 | 14 | 6 | 14 | 102 | 4" | 2 | 0 |
| 8 | 16 | 6 | 14 | 115 | 4 1/2" | 2 | 0 |
| 8 | 16 | 8 | 14 | 127 | 5" | 2 | 0 |
| 8 | 16 | 8 | 16 | 140 | 5 1/2" | 2 | 0 |
| 8 | 12.7 | 5 | 12.7 | 89 | 3 1/2" | 4 | 2 |
| 8 | 14 | 6 | 12.7 | 102 | 4" | 4 | 2 |
| 9 | 11 | 8 | 10 | 89 | 3 1/2" | 3 | 1 |
| 9 | 12.7 | 8 | 12.7 | 102 | 4" | 3 | 1 |
