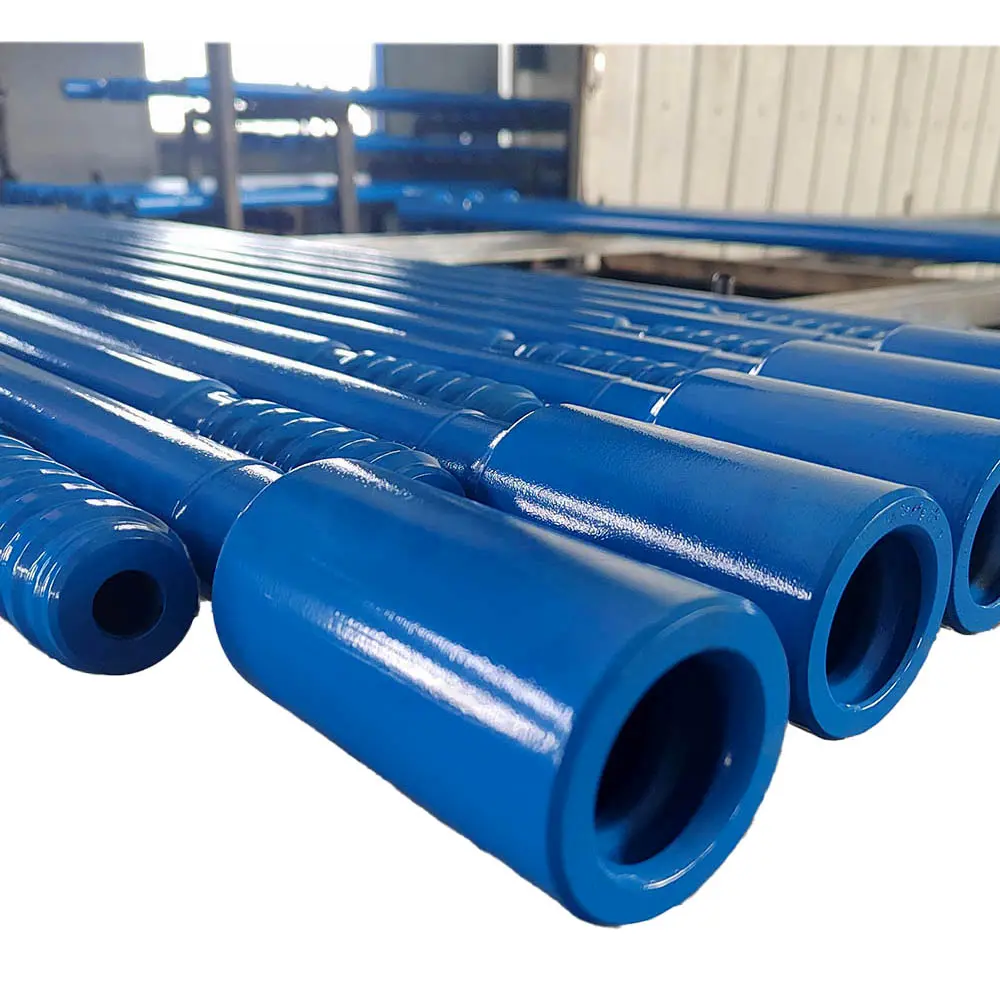

China T51 drill rod Manufacturers, Factory

1 / 2

China T51 drill rod Manufacturers, Factory

Bench and production drilling tools include rods, shank adapters, couplings and bits. We have mainly 9 threads:Â R3212, R32,Â HL38,Â T38,Â T45,Â T51, T60,Â ST58Â andÂ ST68.Â They can be used withÂ button bits, cross bits and reaming products.

Send Inquiry

Product Description

Bench and Production Drilling Tools

Comprehensive range of bench and production rock drilling tools includes rods, shank adapters, couplings, and bits. These professional-grade tools are designed to improve productivity considerably in various drilling environments.

Thread Compatibility:

Our tools support 10 primary threads: R3212, R32, HL38, T38, T45, T51, T60, ST58, GT60, and ST68. Compatible with button bits, cross bits, and reaming products.

Advanced Rod Solutions

M/F (Male/Female) Rod

Speed rod M/F drill steel is an alternative to coupling sleeves. By including the female part of the threaded connection as an integral part of the drill steel, it provides a stronger connection and is easier to remove. Service life tends to exceed that of separate couplings.

Extension Rod

Also known as Extension drill steel or Extension drill rod, these are essential components for deep hole drilling requirements, ensuring stability and reach.

T35 Drill Rod Advantages

✓ Premium Material: Manufactured using high-quality sanbar 64 steel.

✓ Treatment: Utilizes an overall carburizing process for superior hardness and wear resistance.

✓ Flexible Lengths: Available in lengths ranging from 1000mm to 6100mm.

✓ Professional Packaging: Secured in specialized brackets for safe transport.

✓ High Capacity: Productivity reaches up to 10,000pcs per month.

Product Gallery

T51 Drill Rod

T51 MF Rod

T51 MF Tube

T51 Technical Data

T51 - T51 - Rd 52 (2" TRAPEZOIDAL THREAD 51mm) - Carburized
Diameter (D)	Length (L)		Thread
mm	mm	FT	Left	Right
RD 52	1000	3' 3"	T51	T51
RD 52	1220	4'	T51	T51
RD 52	1500	4' 11"	T51	T51
RD 52	3050	10'	T51	T51
RD 52	3660	12'	T51	T51
RD 52	4875	16'	T51	T51
RD 52	6095	20'	T51	T51

MF-Rod T51 - T51 - Rd 52 (2" TRAPEZOIDAL THREAD 51mm) - Carburized
D (mm)	Length (mm)	Length (FT)	Left Thread	Right Thread
72	1525	5'	T51F	T51
72	3050	10'	T51F	T51
72	4270	14'	T51F	T51
72	6100	20'	T51F	T51

MF-Tube T51 (Rd 76 & Rd 87) - Carburized
D (mm)	Length (mm)	Length (FT)	Thread F	Thread M
76/87	1220	4'	T51F	T51
76/87	1830	6'	T51F	T51
76/87	3050	10'	T51F	T51
76/87	4270	14'	T51F	T51

Frequently Asked Questions

What are the advantages of using M/F drill rods over coupling sleeves?

M/F drill rods integrate the female connection directly into the steel. This creates a stronger connection, simplifies the removal process, and generally offers a longer service life compared to systems using separate coupling sleeves.

What thread sizes do you provide for bench drilling tools?

We offer a wide range of thread types including R3212, R32, HL38, T38, T45, T51, T60, ST58, GT60, and ST68 to suit various rock drilling equipment.

Why is the carburizing process important for drill rods?

The overall carburizing process increases the surface hardness and fatigue strength of the drill rod, significantly improving its wear resistance and durability in harsh drilling conditions.

What material is used in the T35 drill rod?

The T35 drill rod is manufactured using premium Sanbar 64 steel, known for its excellent performance and strength in rock drilling applications.

Are these tools compatible with other drilling products?

Yes, our rods and tubes are designed to be fully compatible with a variety of button bits, cross bits, and reaming products within the specified thread ranges.

What lengths are available for the T51 drill rods?

T51 drill rods are available in multiple standard lengths ranging from 1000mm (3' 3") up to 6095mm (20'), catering to different bench and production drilling needs.
