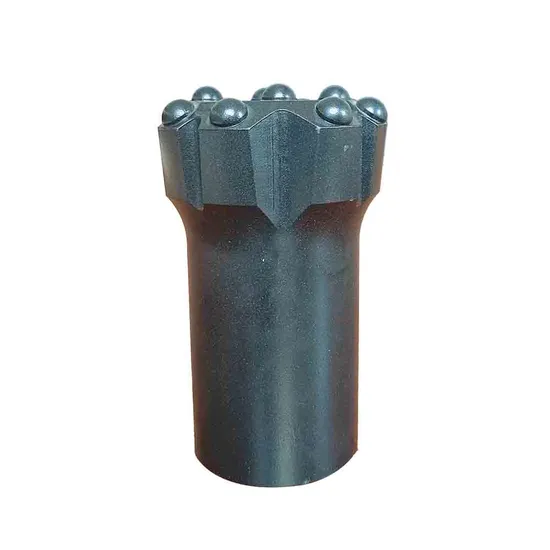

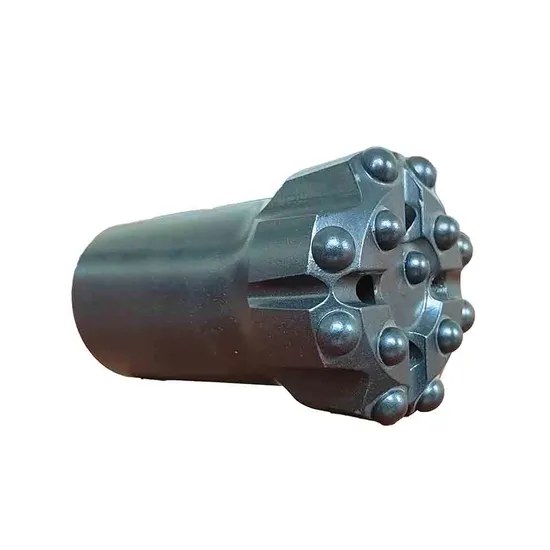

China T45-89mm Retrac Threaded Button Drill Bit for Mining and Rock Drilling Manufacturer, Quotes

1 / 4

China T45-89mm Retrac Threaded Button Drill Bit for Mining and Rock Drilling Manufacturer, Quotes

Product Details

Customization:	Available
After-sales Service:	Repair or Replacement
Warranty:	6 Months

Send Inquiry

Product Description

Technical Specifications

Model NO.

T45-89mm

Certification

ISO 9001:2000, ISO 9001:2008

Standard

Material

Carbon Steel

Thread

T45

Machine Type

Drilling Tools

Tungsten Carbide

Yk05 or T6

Diameter

89mm

Production Capacity

500,000 PCS/Month

Surface Treatment

Spray-Paint

Packaging & Delivery

Package Size

30.00cm * 30.00cm * 30.00cm

Package Gross Weight

5.000kg

Transport Package

Wooden Case

Product Description

Bench and production drilling tools include rods, shank adapters, couplings and bits. We provide 9 main thread types to suit various operational requirements: R3212, R32, HL38, T38, T45, T51, T60, ST58 and ST68. These are fully compatible with button bits, cross bits, and reaming products.

Our comprehensive range of rock drilling tools covers everything from 1" rope thread equipment up to T60 thread equipment. Engineered for durability, these tools are designed to significantly improve productivity in demanding environments.

✓ Available Threads: R32, HL38, T38, T45, T51, T60, ST58, ST68
✓ Diameter Range: 38mm - 140mm
✓ Package Options: Robust wooden cases or cartons
✓ High Productivity: Monthly output of 10,000+ pieces

Dimension Reference Table

Carbide Dimension (Gauge)		Carbide Dimension (Front)		Dimensions D		Flushing Hole
No.	mm	No.	mm	mm	inch	Front	Side
6	14	4	14	89	3 1/2"	3	0
8	12.7	6	11	82	3 1/4"	2	1
8	12.7	6	11	85	3 3/8"	2	1
8	12.7	6	12.7	89	3 1/2"	2	0
8	14	6	14	102	4"	2	0
8	16	6	14	115	4 1/2"	2	0
8	16	8	14	127	5"	2	0
8	16	8	16	140	5 1/2"	2	0
9	11	8	10	89	3 1/2"	3	1
9	12.7	8	12.7	102	4"	3	1

Frequently Asked Questions

What types of threads are available for these drilling tools?

We offer a wide range of threads including R3212, R32, HL38, T38, T45, T51, T60, ST58, and ST68 to ensure compatibility with various drilling equipment.

What materials are used in the manufacturing of the bits?

The tools are manufactured using high-quality Carbon Steel with Tungsten Carbide inserts (Yk05 or T6 grade) for maximum durability and wear resistance.

Can these tools be used for production drilling?

Yes, our comprehensive range includes bench and production rock drilling tools such as rods, shank adapters, and bits specifically designed for high-productivity environments.

What is the range of diameters provided?

Our drilling bits and tools come in various diameters ranging from 38mm up to 140mm, including standard sizes like 89mm, 102mm, and 127mm.

How are the products protected during shipping?

Products are securely packed in wooden cases or reinforced cartons to prevent damage during transport. A standard unit typically weighs around 5kg with a package size of 30x30x30cm.

What is the monthly production capacity for these tools?

We have a robust manufacturing capability with a production capacity of up to 500,000 pieces per month to meet large-scale industrial demands.
