Bench and production drilling tools include rods, shank adapters, couplings and bits. We have mainly 7 threads: R3212, R32, HL38, T38, T45, T51, T60, ST58 and ST68. They can be used with button bits, cross bits and reaming products.
Drifter rod: also known as tunneling steels or tunneling rods, available in round and hexagon shapes. Most drifting drill steel with hexagon cross-sections is used for tunneling and drifting drilling applications. Hexagon rods of rock drilling tools are more rigid, heavier, and transfer energy more efficiently while increasing flushing.

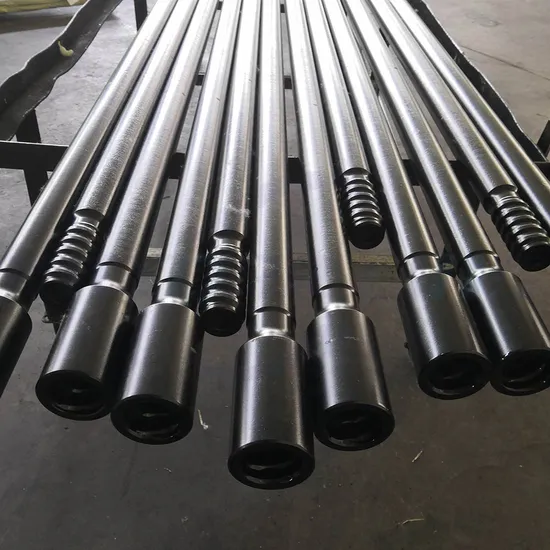

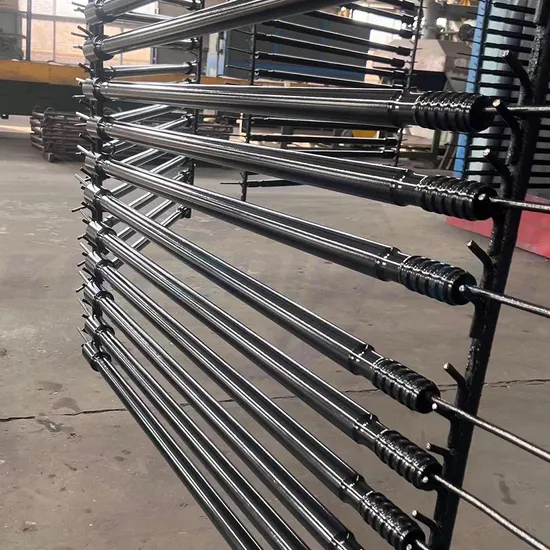

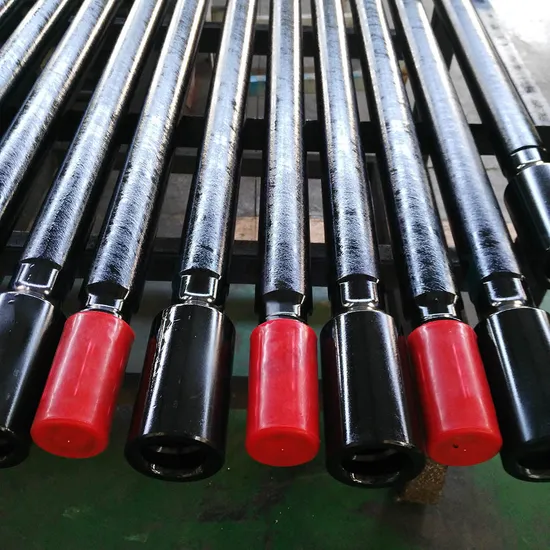

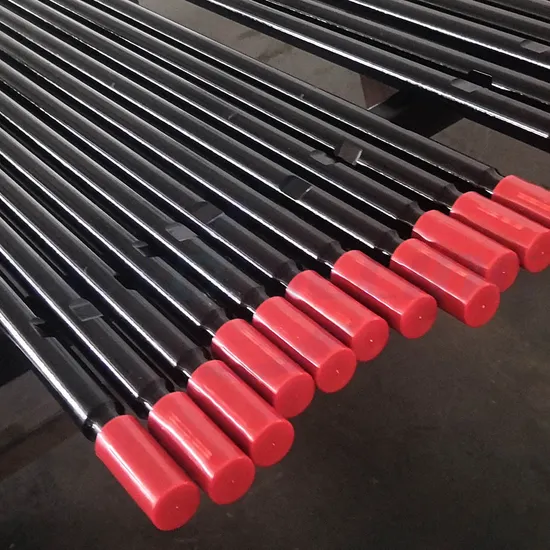

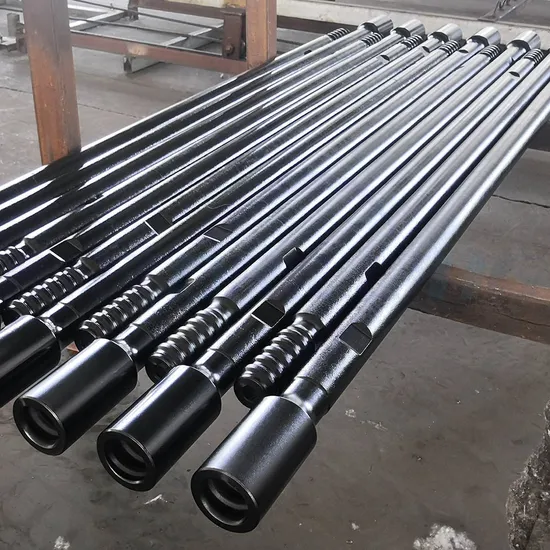

Extension rod: also known as Extension drill steel or M/F rod (Speed rod). Produced in Hexagonal and round cross sections. Hexagon rods are more rigid and efficient for energy transfer. Round rods are generally lighter and normally used in extension drilling applications. Conventional extension steel is characterized by a duplicate thread on each end.
| R32 - 1-1/4" ROPE THREAD (32mm) Carburized | ||||
|---|---|---|---|---|
| D (mm) | Length (L) | Thread | ||
| mm | FT | Left | Right | |
| RD 32 | 610 | 2' | R32 | R32 |
| RD 32 | 915 | 3' | R32 | R32 |
| RD 32 | 1000 | 3' 3" | R32 | R32 |
| RD 32 | 1220 | 4' | R32 | R32 |
| RD 32 | 1525 | 5' | R32 | R32 |
| RD 32 | 1830 | 6' | R32 | R32 |
| RD 32 | 3050 | 10' | R32 | R32 |
| RD 32 | 3660 | 12' | R32 | R32 |
| MF-Rod R32 - 1-1/4" ROPE THREAD (32mm) Carburized | ||||
|---|---|---|---|---|
| D (mm) | Length (L) | Thread | ||
| mm | FT | Female | Male | |
| RD 32 | 915 | 3' | R32F | R32 |
| RD 32 | 1220 | 4' | R32F | R32 |
| RD 32 | 1525 | 5' | R32F | R32 |
| RD 32 | 1830 | 6' | R32F | R32 |
| RD 32 | 3050 | 10' | R32F | R32 |
| RD 32 | 3660 | 12' | R32F | R32 |
