KAT DRILLING
1 / 5
Bench and production drilling tools include rods, shank adapters, couplings and bits. We have mainly 7 threads: R3212, R32, HL38, T38, T45, T51, T60, ST58 and ST68. They can be used with button bits, cross bits and reaming products.
Drifter rod: Also known as tunneling steels or tunneling rods. Available in round and hexagon shapes. Hexagon rods of rock drilling tools are more rigid, heavier and transfer energy more efficiently, while increasing flushing.

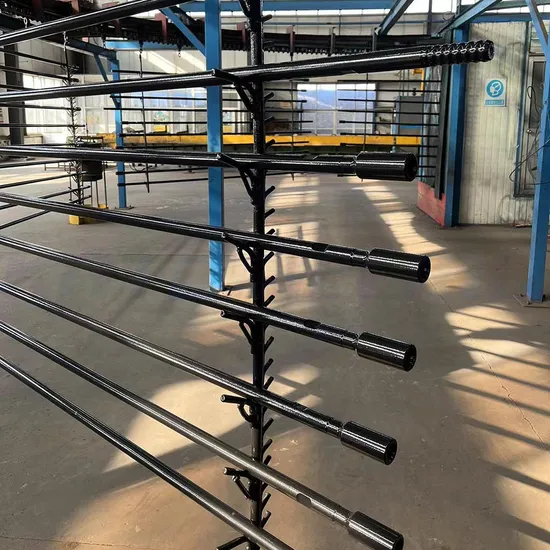

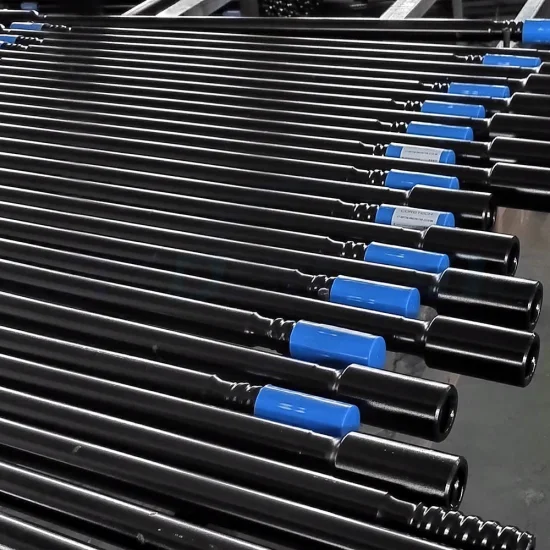

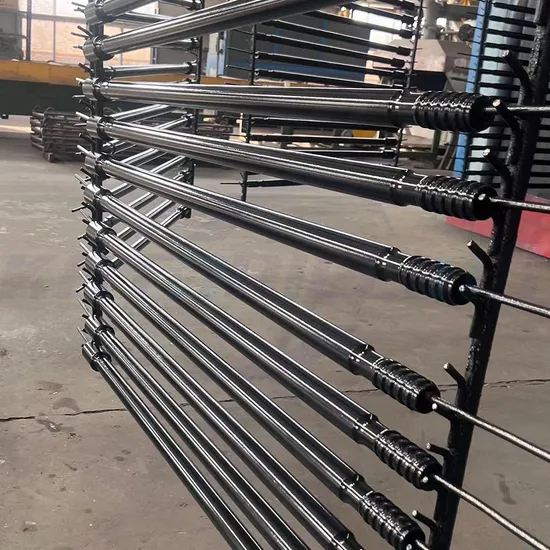

Extension rod: Also known as extension drill steel or M/F rod (Speed rod). Round rods are generally lighter than hexagonal rods and are normally used in extension drilling applications. Conventional extension steel is characterized by a duplicate thread on each end of the steel.
| R32 - R32 - Rd 32 (1-1/4" ROPE THREAD 32mm) Carburized | ||||
|---|---|---|---|---|
| Diameter | Length (mm) | Length (FT) | Thread Left | Thread Right |
| RD 32 | 610 | 2' | R32 | R32 |
| RD 32 | 915 | 3' | R32 | R32 |
| RD 32 | 1000 | 3' 3" | R32 | R32 |
| RD 32 | 3050 | 10' | R32 | R32 |
| RD 32 | 5490 | 18' | R32 | R32 |
| MF-Rod R32 - R32 - Rd 32 (1-1/4" ROPE THREAD 32mm) Carburized | ||||
|---|---|---|---|---|
| Diameter | Length (mm) | Length (FT) | Thread Left | Thread Right |
| RD 32 | 915 | 3' | R32F | R32 |
| RD 32 | 1525 | 5' | R32F | R32 |
| RD 32 | 3050 | 10' | R32F | R32 |
| RD 32 | 4270 | 14' | R32F | R32 |
| RD 32 | 6300 | 20' 8" | R32F | R32 |
