Product Detail

Bench and production drilling tools include rods, shank adapters, couplings and bits. We offer 9 primary thread types: R3212, R32, HL38, T38, T45, T51, T60, ST58, and ST68. These are fully compatible for use with button bits, cross bits, and reaming products.

Our comprehensive range of rock drilling tools covers equipment from 1” rope threads up to T60 thread specifications. These drill rods, tubes, and button bits are engineered to improve productivity considerably in demanding environments.

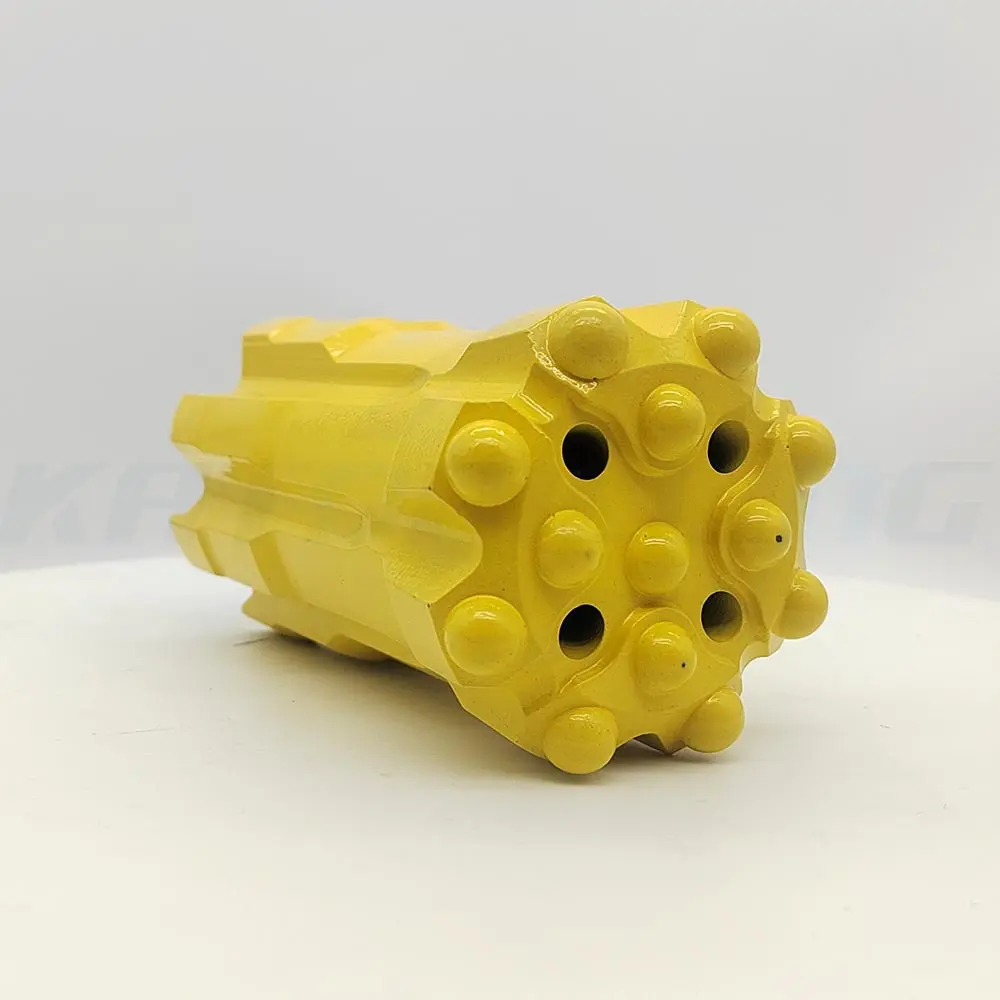

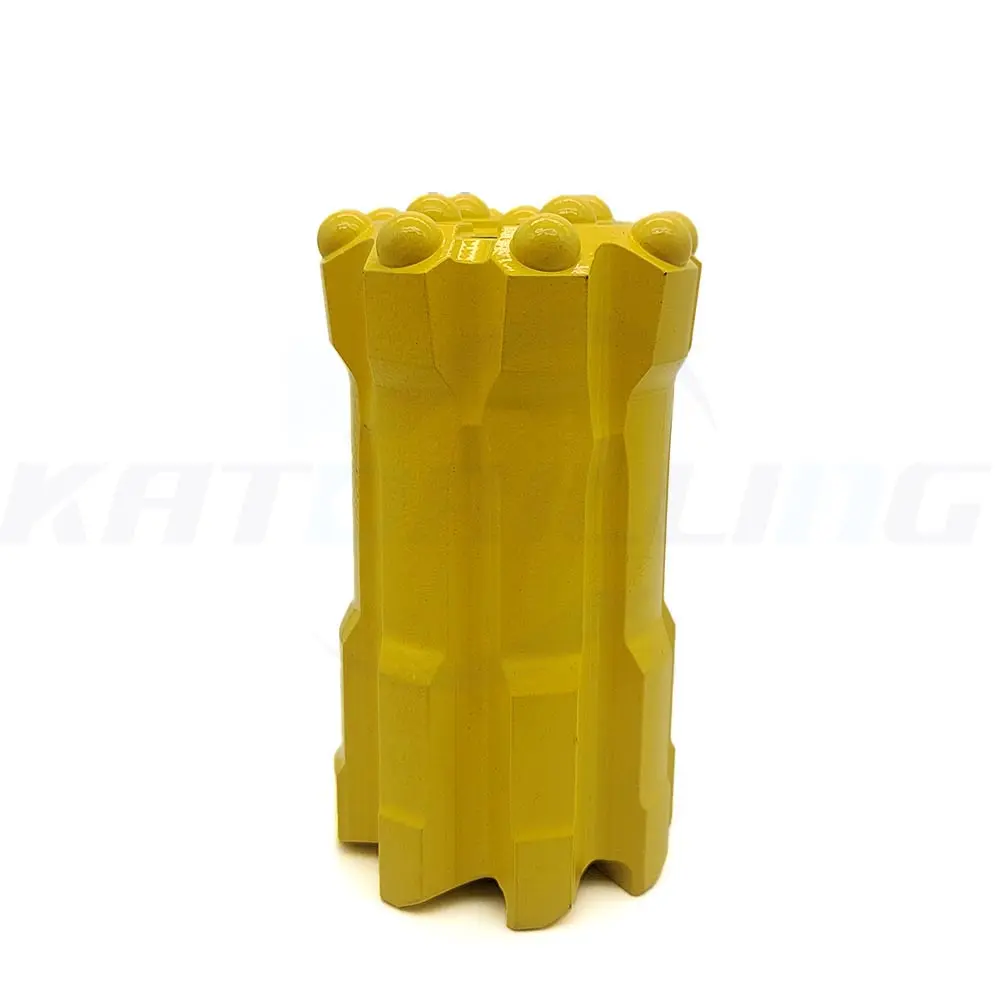

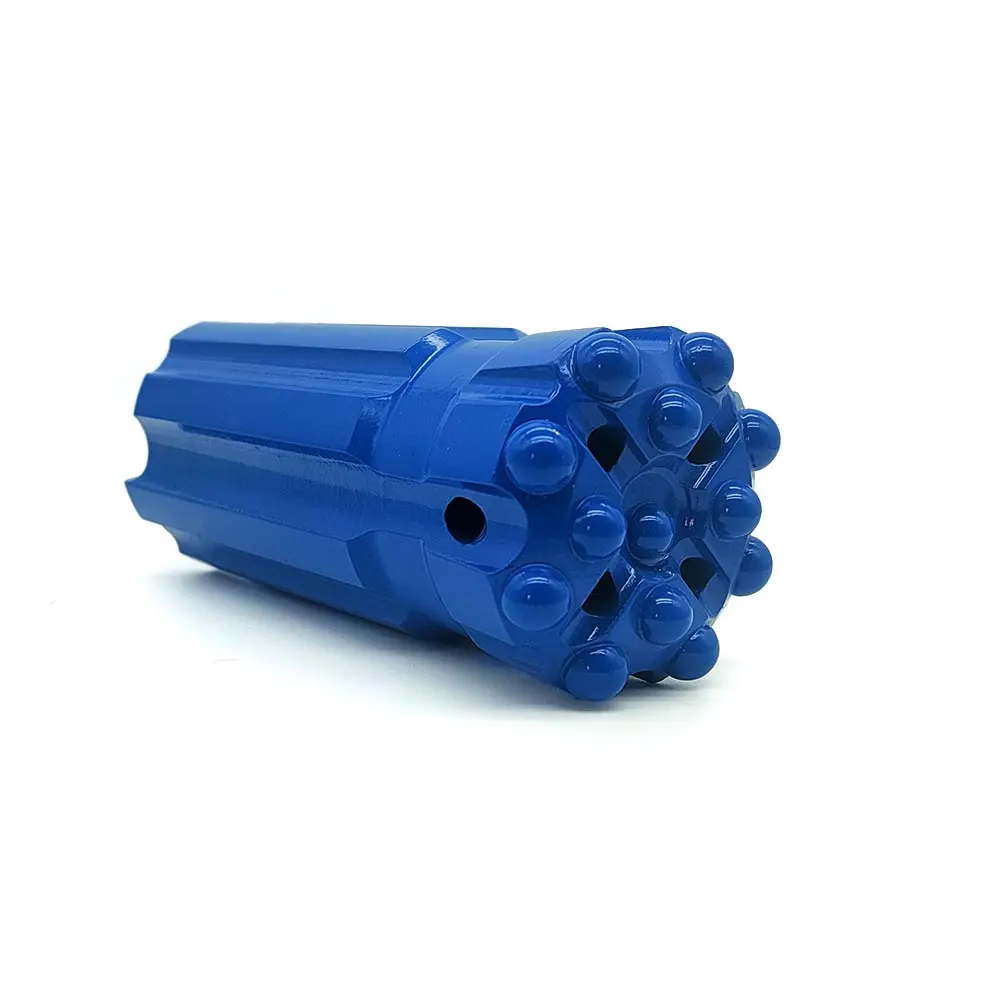

T38 Rock drill bits include Flat Face button bits, Drop Center button bits, Retrac button bits, T38 Cross bits, and more.

Key Advantages

T38 Button Bits Specifications

Button Bit	Carbide Dimension				Dimensions D		Flushing Hole
	Gauge		Front		[mm]	[in]	Front	Side
	[No.]	[mm]	[No.]	[mm]
	6	10	3	10	57	2 1/4"	3	1
	6	11	3	9.5	57	2 1/4"	1	2
	6	12.7	3	12.7	76	3"	3	1
	6	12.7	5	11	70	2 3/4"	1	2
Drop Center Designs
	6	10	3/1	10/9	64	2 1/2"	3	0
	6	14	3/2	12.7/9.5	89	3 1/2"	3	0

T38 Cross Bits Specifications

T38 Cross Bit	Carbide Dimension		Dimensions D		Flushing Hole
	Width [mm]	Height [mm]	[mm]	[in]	Front	Side
		12.7					20.6	64	2 1/2"	1	4
-	12.7	25	76	3"	1	4
-	16	25	102	4"	1	4
