Bench and production drilling tools include rods, shank adapters, couplings and bits. We provide 10 main thread types: R3212, R32, HL38, T38, T45, T51, T60, ST58, GT60, and ST68. These tools are fully compatible with button bits, cross bits, and reaming products.
Our comprehensive range of bench and production rock drilling tools covers everything from 1” rope thread equipment up to T60 thread equipment. These drill rods, tubes, and button bits are designed to improve productivity considerably in various mining and construction environments.
Male/Female (M/F) Rods
M/F drill steel, also known as speed rods, serves as an alternative to coupling sleeves. By including the female part of the threaded connection as an integral part of the drill steel, the M/F connection provides a stronger link that is easier to remove. This integral design typically offers a better service life compared to separate couplings.
Extension rods are also referred to as extension drill steel, extension drill rods, or simply extension steel, designed for deep hole drilling requirements.

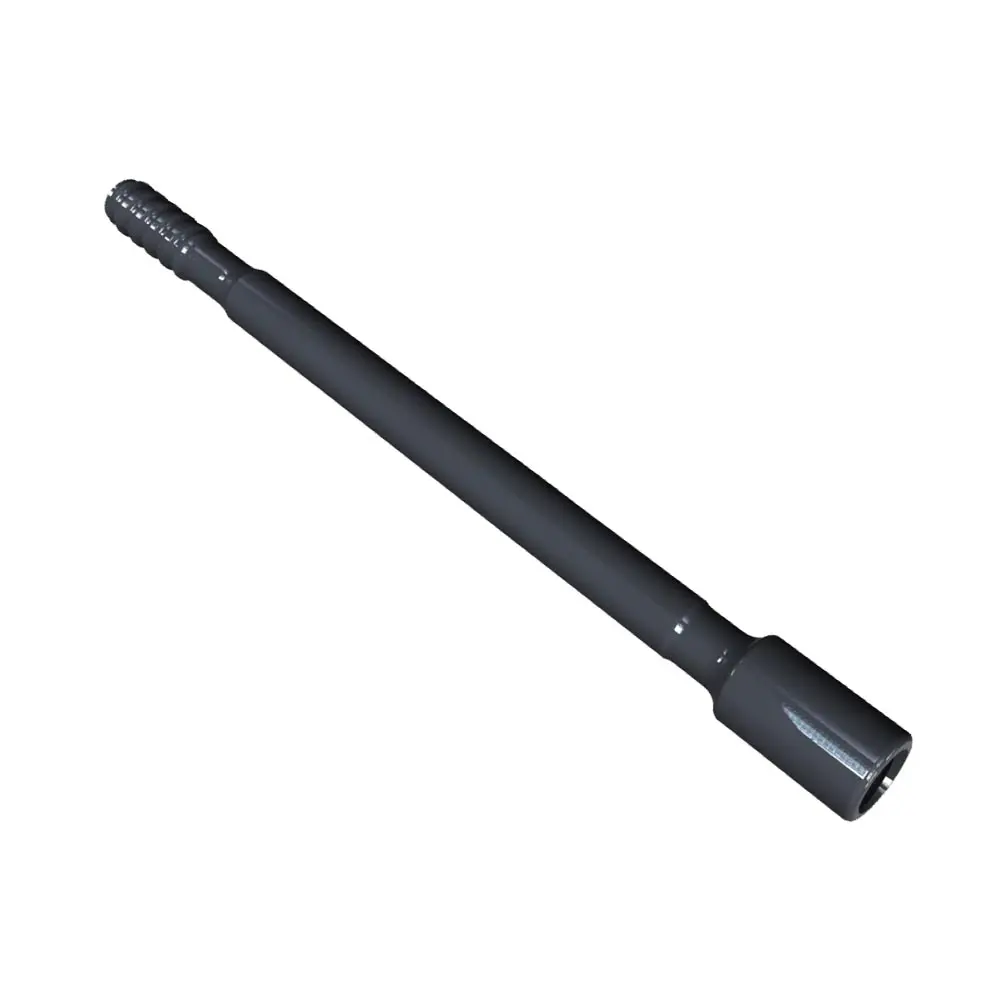

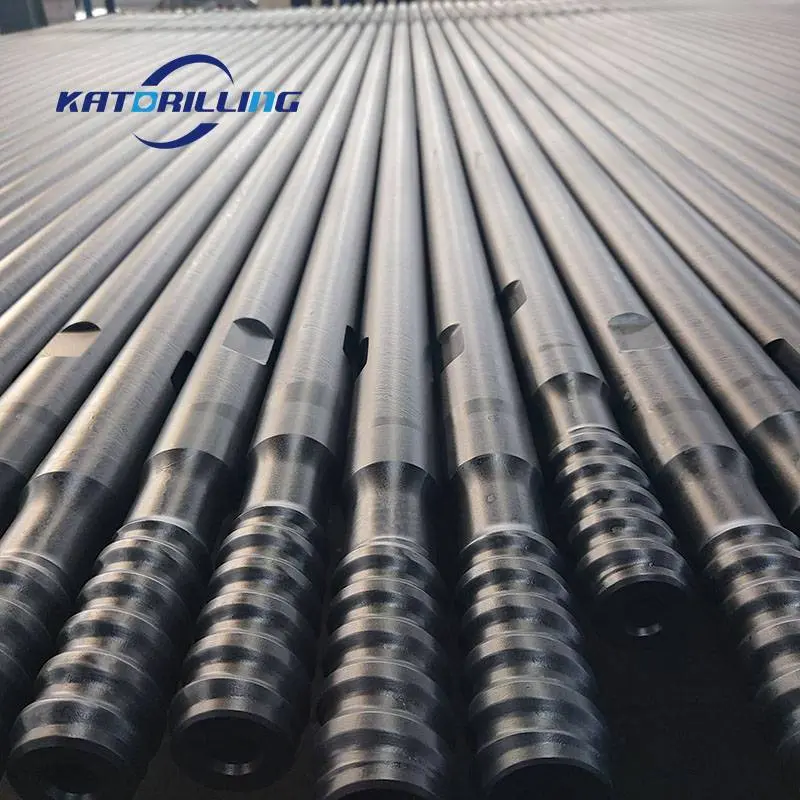

T35 Drill Rod Advantages
-
✔
The drill rod is manufactured using premium Sanbar 64 steel.
-
✔
Utilizes an overall carburizing process for superior surface hardness and durability.
-
✔
Available in various lengths ranging from 1220mm to 4270mm.
-
✔
Securely packaged using professional bracket systems for safe transport.
-
✔
High production capacity: 10,000 pieces per month.
T35 Drill Rod Specifications
MF-Rod T35 – Rd 39 | 1-3/8″ Trapezoidal Thread (35mm) Carburized
| Product Image |
Diameter (mm) |
Length (L) |
Thread Type |
| mm |
FT |
Left |
Right |
|
|
48 |
1220 |
4′ |
T35 |
T35 |
| 48 |
1830 |
6′ |
T35 |
T35 |
| 48 |
2435 |
8′ |
T35 |
T35 |
| 48 |
3050 |
10′ |
T35 |
T35 |
| 48 |
3660 |
12′ |
T35 |
T35 |
| 48 |
4270 |
14′ |
T35 |
T35 |
| 48 |
4270 |
14′ |
T35 |
T35 |
Frequently Asked Questions
What are the primary applications for T35 drill rods?
T35 drill rods are primarily used for bench drilling and production drilling in mining, quarrying, and civil engineering projects. They are designed to work with various rock types and drilling rigs.
What is the advantage of the M/F (Male/Female) rod design?
The M/F design integrates the coupling into the rod itself, which results in a more rigid connection, reduces energy loss through the joint, and makes the rod strings much easier to uncouple.
What thread types are available for your drilling tools?
We offer a wide range of industry-standard threads including R32, T38, T45, T51, T60, ST58, and the trapezoidal T35 thread, ensuring compatibility with most drilling equipment.
How does the carburizing process benefit the drill rod?
Carburizing increases the surface hardness of the rod while maintaining a tough, flexible core. This significantly improves wear resistance in the threads and increases the overall fatigue life of the tool.
What material is used for the T35 drill rods?
Our T35 drill rods are manufactured from high-quality Sanbar 64 steel, known for its excellent durability and strength in heavy-duty rock drilling applications.
Can these rods be used with both button and cross bits?
Yes, our extension and M/F rods are fully compatible with button bits, cross bits, and reaming products, providing versatile solutions for different geological conditions.
